AUDIO / VIDEO  AUDIO AND VISUAL SYSTEM(Production Date from 2023/04)  C162287  Rear Camera Image Signal Missing Message


DESCRIPTION

This DTC is stored if the radio and display receiver assembly judges that the signal from the rear television camera assembly is not normal.

DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
C162287 Rear Camera Image Signal Missing Message When the ignition switch is ON, a malfunction is detected in the image signal of the rear television camera assembly
(2 trip detection logic)
·

Parking assist monitor system

·

Harness or connector

·

Radio and display receiver assembly

·

Rear television camera assembly


Navigation System A

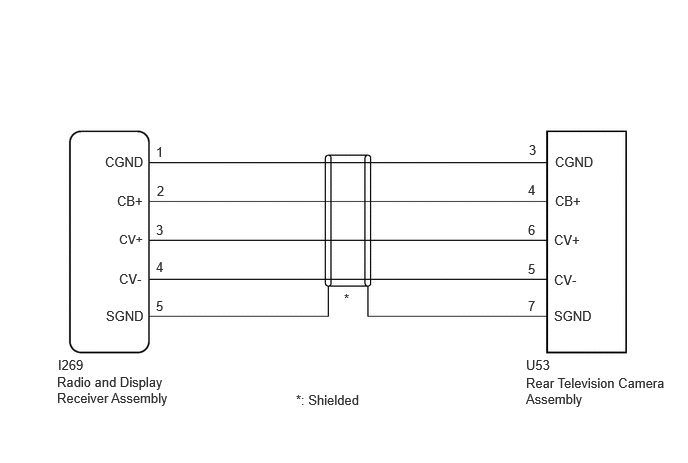

WIRING DIAGRAM

E488670E26
1.094,1.604 1.708,1.802 0.615,0.198 10 false CGND 1.219,2.01 1.833,2.208 0.615,0.198 10 false CB+ 1.24,2.417 1.854,2.615 0.615,0.198 9 false CV+ 1.24,2.823 1.854,3.021 0.615,0.198 10 false CV- 1.104,3.208 1.719,3.406 0.615,0.198 10 false SGND 1.625,1.5 1.906,1.719 0.281,0.219 10 false 1 1.635,1.906 1.917,2.125 0.281,0.219 10 false 2 1.625,2.313 1.906,2.531 0.281,0.219 10 false 3 1.625,2.698 1.906,2.917 0.281,0.219 10 false 4 1.625,3.104 1.906,3.323 0.281,0.219 10 false 5 3.583,3.031 3.865,3.25 0.281,0.219 10 false * 5.51,1.479 5.792,1.698 0.281,0.219 10 false 3 5.5,1.896 5.781,2.115 0.281,0.219 10 false 4 5.5,2.313 5.781,2.531 0.281,0.219 10 false 6 5.5,2.719 5.781,2.938 0.281,0.219 10 false 5 5.781,1.604 6.396,1.802 0.615,0.198 10 false CGND 5.781,2.01 6.396,2.208 0.615,0.198 10 false CB+ 5.771,2.417 6.385,2.615 0.615,0.198 10 false CV+ 5.771,2.833 6.385,3.031 0.615,0.198 10 false CV- 5.479,3.719 6.094,3.917 0.615,0.198 10 false U53 5.479,3.906 6.979,4.313 1.5,0.406 10 false Rear Television Camera Assembly 3.083,4.083 4.083,4.333 1,0.25 10 false *: Shielded 0.604,3.719 1.219,3.917 0.615,0.198 10 false I269 0.594,3.896 1.802,4.313 1.208,0.417 10 false Radio and Display Receiver Assembly 5.5,3.104 5.781,3.323 0.281,0.219 10 false 7 5.771,3.208 6.385,3.406 0.615,0.198 10 false SGND

CAUTION / NOTICE / HINT

NOTICE:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (Production Date from 2023/04)>PRECAUTION


PROCEDURE

1.CHECK PARKING ASSIST MONITOR SYSTEM

Result:
Result Proceed to
Malfunction does not occur A
Malfunction occurs B



A

2.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - REAR TELEVISION CAMERA ASSEMBLY)

B

2.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - REAR TELEVISION CAMERA ASSEMBLY)

Pre-procedure1

a.

Disconnect the I269 radio and display receiver assembly connector.


b.

Disconnect the U53 rear television camera assembly connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I269-2 (CB+) - U53-4 (CB+) Always Below 1 Ω
I269-3 (CV+) - U53-6 (CV+) Always Below 1 Ω
I269-4 (CV-) - U53-5 (CV-) Always Below 1 Ω
I269-5 (SGND) - U53-7 (SGND) Always Below 1 Ω
I269-1 (CGND) - U53-3 (CGND) Always Below 1 Ω
I269-2 (CB+) - Body ground Always 10 kΩ or higher
I269-3 (CV+) - Body ground Always 10 kΩ or higher
I269-4 (CV-) - Body ground Always 10 kΩ or higher
I269-5 (SGND) - Body ground Always 10 kΩ or higher
I269-1 (CGND) - Body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
