NETWORKING  CXPI COMMUNICATION SYSTEM  B235587  Power Distribution Box Missing Message  B235787  Wiper Module Missing Message


DESCRIPTION

This DTC is stored when CXPI communication between the power distribution box assembly, windshield wiper relay assembly and main body ECU (multiplex network body ECU) stops for 10 seconds or more.

DTC No. Detection Item DTC Detection Condition Trouble Area
B235587 Power Distribution Box Missing Message No communication between power distribution box assembly and main body ECU (multiplex network body ECU) for 10 seconds or more
·

Main body ECU (multiplex network body ECU)

·

Power distribution box assembly


B235787 Wiper Module Missing Message No communication between windshield wiper relay assembly and main body ECU (multiplex network body ECU) for 10 seconds or more
·

Main body ECU (multiplex network body ECU)

·

Windshield wiper relay assembly

·

Harness or connector

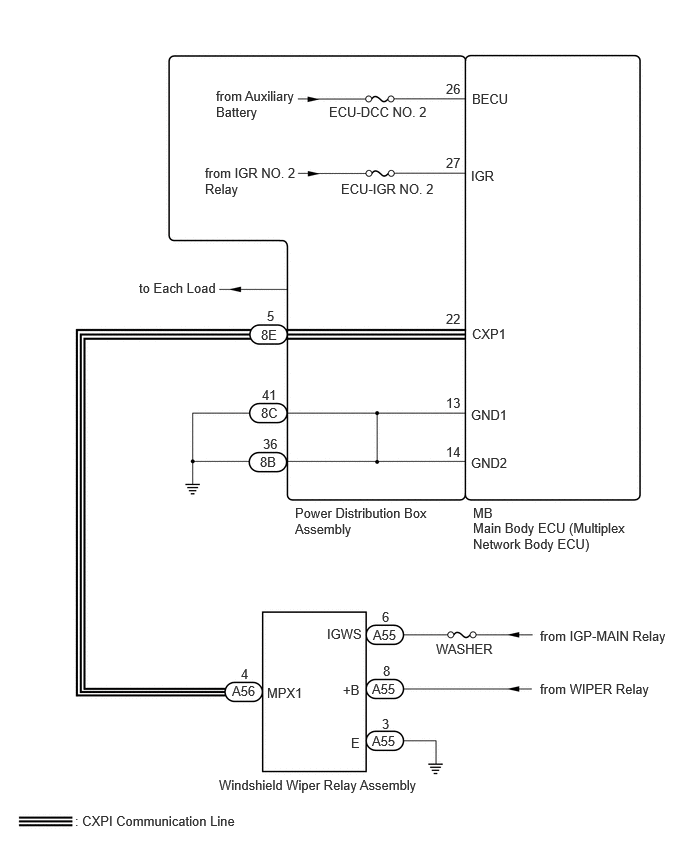

WIRING DIAGRAM

B581692E03
4.917,0.948 5.313,1.135 0.396,0.188 10 false BECU 4.906,1.75 5.302,1.938 0.396,0.188 10 false IGR 4.917,3.396 5.313,3.583 0.396,0.188 10 false CXP1 4.906,4.24 5.302,4.427 0.396,0.188 10 false GND1 4.906,4.74 5.302,4.927 0.396,0.188 10 false GND2 3.073,5.26 4.49,5.688 1.417,0.427 10 false Power Distribution Box Assembly 2.281,8.094 4.521,8.458 2.24,0.365 10 false Windshield Wiper Relay Assembly 2.781,7.135 3.177,7.323 0.396,0.188 10 false MPX1 3.406,6.521 3.802,6.708 0.396,0.188 10 false IGWS 3.573,7.104 3.969,7.292 0.396,0.188 10 false +B 4.542,6.677 5.177,6.906 0.635,0.229 10 false WASHER 5.625,6.542 7.094,6.802 1.469,0.26 10 false from IGP-MAIN Relay 5.625,7.094 7.042,7.469 1.417,0.375 10 false from WIPER Relay 0.781,8.469 2.667,8.719 1.885,0.25 10 false : CXPI Communication Line 4.927,5.417 6.604,6.052 1.677,0.635 10 false Main Body ECU (Multiplex Network Body ECU) 3.552,1.885 4.781,2.083 1.229,0.198 10 false ECU-IGR NO. 2 3.427,1.083 4.656,1.281 1.229,0.198 10 false ECU-DCC NO. 2 2.25,0.917 3.135,1.417 0.885,0.5 10 false from Auxiliary Battery 3.656,7.656 4.052,7.844 0.396,0.188 10 false E 1.448,2.917 2.406,3.26 0.958,0.344 10 false to Each Load 4.646,0.844 5.042,1.031 0.396,0.188 10 false 26 4.646,1.615 5.042,1.802 0.396,0.188 10 false 27 4.646,3.24 5.042,3.427 0.396,0.188 10 false 22 4.646,4.115 5.042,4.302 0.396,0.188 10 false 13 4.646,4.625 5.042,4.813 0.396,0.188 10 false 14 2.719,3.406 3.115,3.594 0.396,0.188 10 false 8E 2.719,4.219 3.115,4.406 0.396,0.188 10 false 8C 2.708,4.729 3.104,4.917 0.396,0.188 10 false 8B 2.781,3.208 3.177,3.458 0.396,0.25 10 false 5 2.729,4.031 3.125,4.281 0.396,0.25 10 false 41 2.74,4.542 3.135,4.792 0.396,0.25 10 false 36 2.417,7.115 2.813,7.302 0.396,0.188 10 false A56 3.885,6.531 4.281,6.719 0.396,0.188 10 false A55 3.875,7.094 4.271,7.281 0.396,0.188 10 false A55 3.875,7.635 4.271,7.823 0.396,0.188 10 false A55 2.51,6.938 2.906,7.188 0.396,0.25 10 false 4 3.979,6.344 4.375,6.594 0.396,0.25 10 false 6 3.99,6.906 4.385,7.156 0.396,0.25 10 false 8 3.979,7.458 4.375,7.708 0.396,0.25 10 false 3 4.927,5.26 5.323,5.448 0.396,0.188 10 false MB 2.135,1.719 3.125,2.198 0.99,0.479 10 false from IGR NO. 2 Relay

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Recognition code registration is necessary when replacing the main body ECU (multiplex network body ECU).

·

If the main body ECU (multiplex network body ECU) is replaced, refer to Service Bulletin.

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART




PROCEDURE

1.CLEAR DTC
a.

Clear the DTCs.

Body Electrical > Main Body > Clear DTCs
50002 449

Result:
Result
NEXT



NEXT

2.CHECK FOR DTC
2.CHECK FOR DTC
a.

Check for DTCs.

Body Electrical > Main Body > Trouble Codes
50001 449

Result:
Result Proceed to
B235587 and B235787 are output A
B235587 is output B
B235787 is output C
DTCs are not output D



A

3.INSPECT POWER DISTRIBUTION BOX ASSEMBLY

B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


C

5.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - WINDSHIELD WIPER RELAY ASSEMBLY)

D

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


3.INSPECT POWER DISTRIBUTION BOX ASSEMBLY
a.

Remove the power distribution box assembly.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


b.

Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.


c.

Disconnect the 8E power distribution box assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

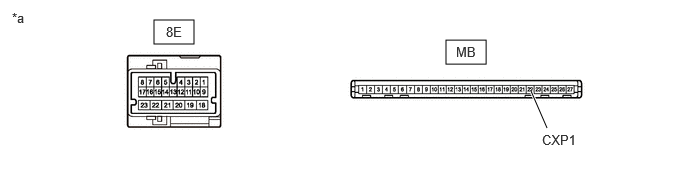

E444782C96
1.604,0.208 2.021,0.458 0.417,0.25 4.646,0.417 5.063,0.667 0.417,0.25 5.698,1.333 5.531,0.948 true 0.125,0.104 0.427,0.333 0.302,0.229 10 false *a 1.729,0.25 2.042,0.448 0.313,0.198 10 false 8E 4.75,0.458 5.063,0.656 0.313,0.198 10 false MB 5.646,1.375 6.073,1.615 0.427,0.24 10 false CXP1
*a Component without harness connected
(Power Distribution Box Assembly) 		- -


Standard Resistance
Tester Connection Condition Specified Condition
MB-22 (CXP1) - 8E-5 Always Below 1 Ω


Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - WINDSHIELD WIPER RELAY ASSEMBLY)

NG

REPLACE POWER DISTRIBUTION BOX ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


4.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - WINDSHIELD WIPER RELAY ASSEMBLY)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the 8E power distribution box assembly connector.


c.

Disconnect the A56 windshield wiper relay assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
8E-5 - A56-4 (MPX1) Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
8E-5 - Body ground Cable disconnected from negative (-) auxiliary battery terminal 10 kΩ or higher
A56-4 (MPX1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE WINDSHIELD WIPER RELAY ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>WIPER ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - WINDSHIELD WIPER RELAY ASSEMBLY)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the 8E power distribution box assembly connector.


c.

Disconnect the A56 windshield wiper relay assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
8E-5 - A56-4 (MPX1) Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
8E-5 - Body ground Cable disconnected from negative (-) auxiliary battery terminal 10 kΩ or higher
A56-4 (MPX1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

6.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - POWER SOURCE)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - POWER SOURCE)
a.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
A55-6 (IGWS) - Body ground Ignition switch ON 11 to 14 V
A55-8 (+B) - Body ground Ignition switch ON or less than approximately 60 seconds after ignition switch turned off 11 to 14 V
A55-8 (+B) - Body ground Approximately 60 seconds or more after ignition switch turned off Below 1 V



Result:
Proceed to
OK
NG



OK

7.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - POWER DISTRIBUTION BOX ASSEMBLY)

NG

GO TO WIPER AND WASHER SYSTEM

Click hereVehicle Exterior>WIPER / WASHER>WIPER AND WASHER SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING


7.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - POWER DISTRIBUTION BOX ASSEMBLY)
a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal.


c.

Disconnect the A56 windshield wiper relay assembly connector.


d.

Disconnect the 8E power distribution box assembly connector.


e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A56-4 (MPX1) - 8E-5 Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
A56-4 (MPX1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE WINDSHIELD WIPER RELAY ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>WIPER ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
