SLIDING ROOF / CONVERTIBLE SLIDING ROOF HOUSING(for Moon Roof) REMOVAL

CAUTION / NOTICE / HINT

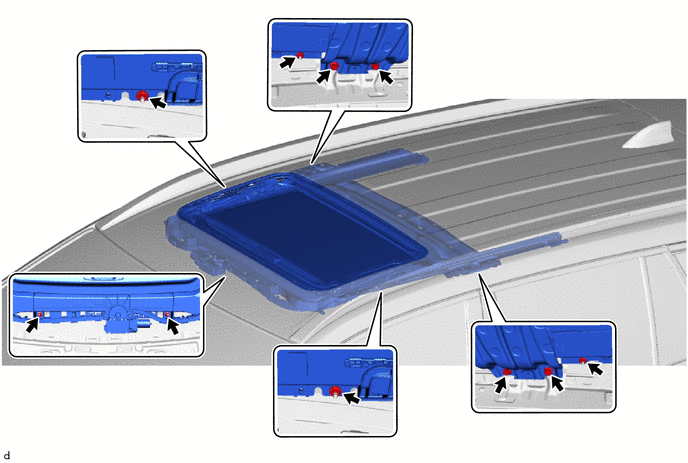

COMPONENTS (REMOVAL)

4.167,0.5 7,2.417 2.833,1.917 1.333,0.469 1.667,0.469 false 3.417,2.125 3.417,2.458 false 3.229,1.5 3.479,1.5 false 6.583,1.667 6.583,2 false 6.531,2.01 6.813,2.365 0.281,0.354 18 false 4 3.76,1.375 4.042,1.729 0.281,0.354 18 false 3 1.75,0.302 2.031,0.656 0.281,0.354 18 false 2 3.344,2.458 3.594,2.74 0.25,0.281 18 false 1 1.906,2.208 2.219,2.406 0.313,0.198 10 false x4 4.25,0.552 4.625,0.792 0.375,0.24 12 false *A

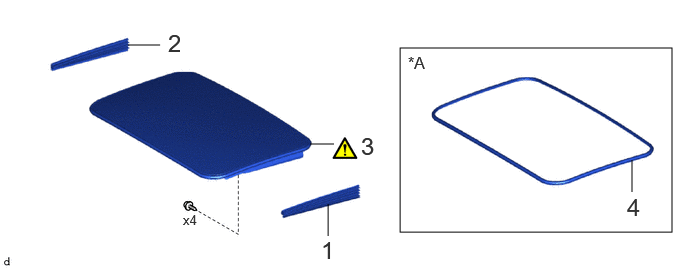

Procedure		Part Name Code

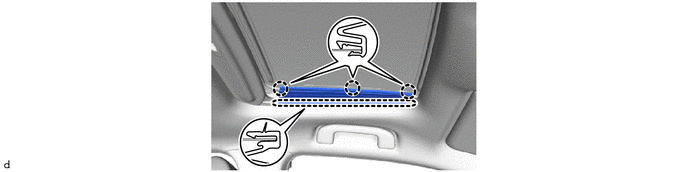

1	SLIDING ROOF SIDE GARNISH LH	63218G	-	-	-
2	SLIDING ROOF SIDE GARNISH RH	63217G	-	-	-

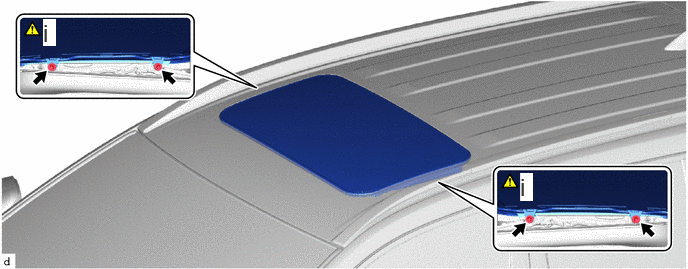

3	SLIDING ROOF GLASS SUB-ASSEMBLY	63201G	(202307,999999,_59,_114986,_0509985,RM100000002CXMT_01_0376,)	-	-
4	SLIDING ROOF WEATHERSTRIP	63251H	-	-	-

*A

for GTMC Made

-

3.104,0.979 3.104,1.229 false 3.813,2.229 3.813,2.479 false 3.042,1.229 3.323,1.583 0.281,0.354 18 false 6 3.75,2.5 4.031,2.854 0.281,0.354 18 false 5

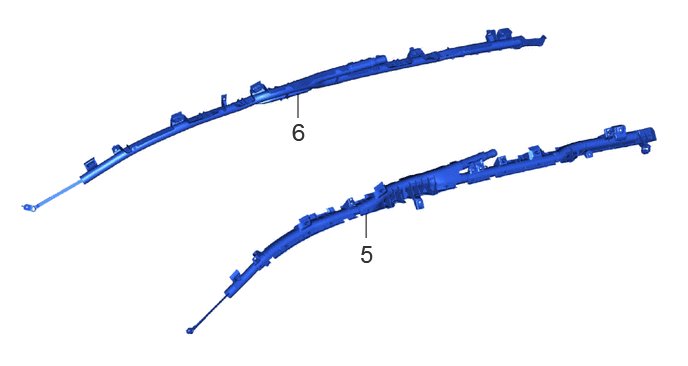

Procedure		Part Name Code
5	CURTAIN SHIELD AIRBAG ASSEMBLY LH	62180A	-	-	-
6	CURTAIN SHIELD AIRBAG ASSEMBLY RH	62170A	-	-	-

3.729,3 3.729,3.333 false 4.688,3.167 5.021,3.167 false 1.667,1.625 1.667,1.958 false 4.833,1.063 4.833,1.396 false 2.823,2.344 2.323,2.51 2.323,2.51 2.156,2.51 false 6.667,1.75 6.5,1.75 6.5,1.75 6,1.917 false 5.604,2.729 5.938,2.729 false 0.813,0.927 1.146,0.927 false 2,0.521 2.167,0.521 2.167,0.521 2.5,0.719 false 3.135,2.885 3.448,3.083 0.313,0.198 10 false x6 4.646,3.542 4.958,3.74 0.313,0.198 10 false x2 6.729,1.583 7.073,1.875 0.344,0.292 18 false 7 4.792,1.406 5.135,1.698 0.344,0.292 18 false 7 3.688,3.344 4.031,3.635 0.344,0.292 18 false 7 1.615,1.969 1.958,2.26 0.344,0.292 18 false 7 5.094,3 5.438,3.292 0.344,0.292 18 false 8 5.26,2.563 5.604,2.854 0.344,0.292 18 false 10 6.042,3.146 6.354,3.344 0.313,0.198 10 false x2 0.604,0.76 0.948,1.052 0.344,0.292 18 false 9 1.698,0.344 2.042,0.635 0.344,0.292 18 false 11 1.396,1.313 1.708,1.51 0.313,0.198 10 false x2 2.708,1.063 3.021,1.26 0.313,0.198 10 false x2 1.823,2.344 2.167,2.635 0.344,0.292 18 false 12 4.969,2.854 5.281,3.052 0.313,0.198 10 false x4

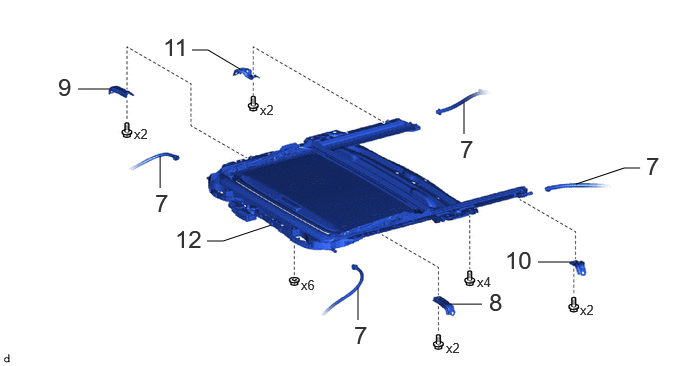

Procedure		Part Name Code

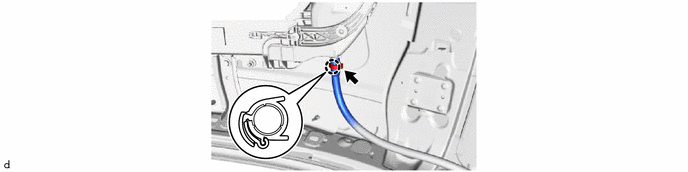

7	SLIDING ROOF DRAIN HOSE	-	-	-	-

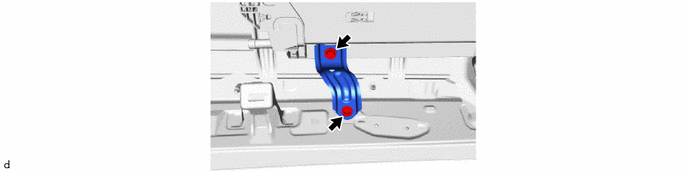

8	FRONT SLIDING ROOF HOUSING MOUNTING BRACKET LH	63242A	-	-	-
9	FRONT SLIDING ROOF HOUSING MOUNTING BRACKET RH	63241A	-	-	-

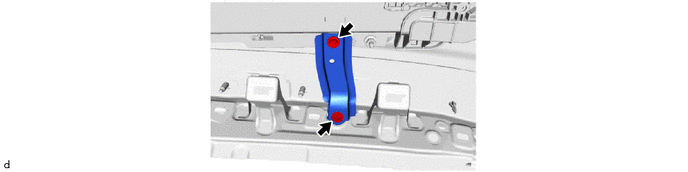

10	REAR SLIDING ROOF HOUSING MOUNTING BRACKET LH	63246D	-	-	-
11	REAR SLIDING ROOF HOUSING MOUNTING BRACKET RH	63245D	-	-	-
12	SLIDING ROOF HOUSING ASSEMBLY	-	-	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during sliding roof housing assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Link

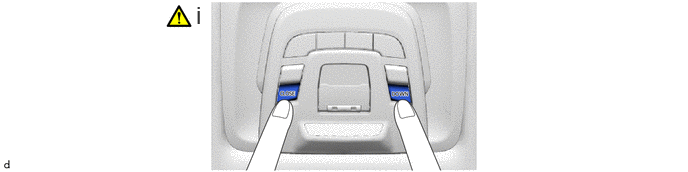

Sliding roof ECU (Sliding roof drive gear sub-assembly)	Initialize sliding roof system	· Auto operation function · Jam protection function · Key-off operation function · Key-linked function · Wireless transmitter-linked function · Sliding roof open warning function · Sliding roof may move in reverse or become misaligned	(202201,999999,_59,_114986,_0583911,RM1000000029E2G,)
Sliding roof drive cable sub-assembly (Including removal and installation)	Initialize sliding roof system	· Auto operation function · Jam protection function · Key-off operation function · Key-linked function · Wireless transmitter-linked function · Sliding roof open warning function · Sliding roof may move in reverse or become misaligned	(202201,999999,_59,_114986,_0583911,RM1000000029E2G,)
Sliding roof glass sub-assembly (Including removal and installation)	Initialize sliding roof system	· Auto operation function · Jam protection function · Key-off operation function · Key-linked function · Wireless transmitter-linked function · Sliding roof open warning function · Sliding roof may move in reverse or become misaligned	(202201,999999,_59,_114986,_0583911,RM1000000029E2G,)
