RM38T0EC _59 Vehicle Exterior _114986 SLIDING ROOF / CONVERTIBLE _0509983 SLIDING ROOF HOUSING(for Panoramic Moon Roof) A

SLIDING ROOF / CONVERTIBLE  SLIDING ROOF HOUSING(for Panoramic Moon Roof)  REMOVAL


CAUTION / NOTICE / HINT

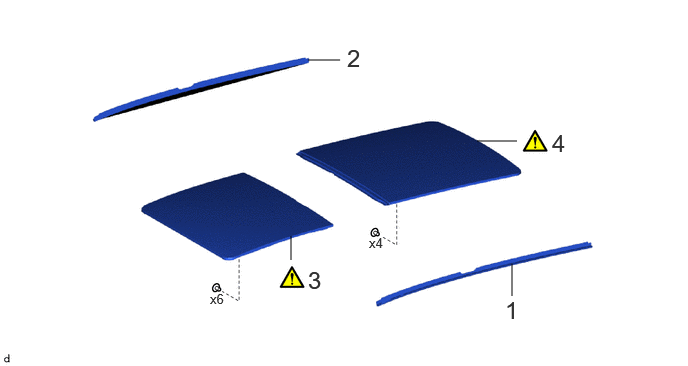

COMPONENTS (REMOVAL)
B635762N01
3.208,0.625 3.542,0.625 false 3.031,2.458 3.031,2.708 false 5.333,2.75 5.333,3.083 false 4.969,1.469 5.385,1.469 false 5.75,1.344 6.302,1.698 0.552,0.354 18 false 4 3.208,2.771 3.76,3.125 0.552,0.354 18 false 3 5.26,3.083 5.813,3.438 0.552,0.354 18 false 1 3.615,0.458 4.167,0.813 0.552,0.354 18 false 2 2.188,3.031 2.5,3.229 0.313,0.198 10 false x6 3.844,2.448 4.156,2.646 0.313,0.198 10 false x4

Procedure Part Name Code
Z101186

Z101188

Z101187

1 SLIDING ROOF SIDE GARNISH LH 63218S - - -
2 SLIDING ROOF SIDE GARNISH RH 63217G - - -
3 SLIDING ROOF PANEL SUB-ASSEMBLY 63201H (Click here) - -
4 SLIDING ROOF GLASS SUB-ASSEMBLY 63201G (Click here) - -

B582226N02
3.104,0.979 3.104,1.229 false 3.813,2.229 3.813,2.479 false 3.042,1.229 3.323,1.583 0.281,0.354 18 false 6 3.75,2.5 4.031,2.854 0.281,0.354 18 false 5

Procedure Part Name Code
Z101186

Z101188

Z101187

5 CURTAIN SHIELD AIRBAG ASSEMBLY LH 62180A - - -
6 CURTAIN SHIELD AIRBAG ASSEMBLY RH 62170A - - -

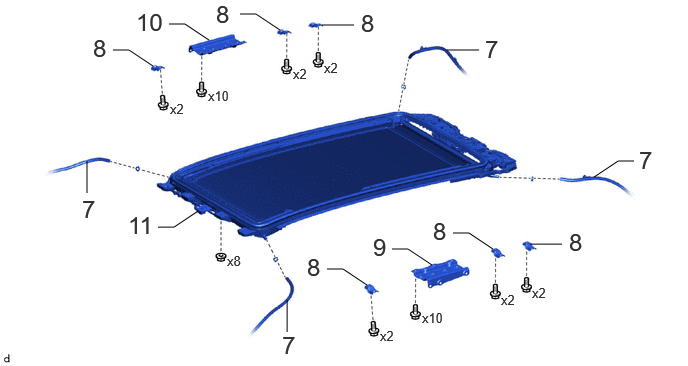

B625850N01
1.177,0.521 1.344,0.521 1.344,0.521 1.594,0.688 false 1.76,0.25 1.927,0.25 1.927,0.25 2.177,0.417 false 2.5,0.146 2.667,0.146 2.667,0.146 2.917,0.313 false 3.354,0.26 3.688,0.26 false 4.656,0.521 4.99,0.521 false 0.906,1.677 0.906,2.01 false 2.99,3.125 2.99,3.458 false 6.188,1.844 6.438,1.677 6.438,1.677 6.604,1.677 false 3.406,2.802 3.573,2.802 3.573,2.802 3.823,2.969 false 4.083,2.594 4.25,2.594 4.25,2.594 4.5,2.76 false 4.719,2.427 4.885,2.427 4.885,2.427 5.135,2.594 false 5.521,2.542 5.854,2.542 false 1.646,2.365 1.813,2.365 1.813,2.365 2.063,2.198 false 0.969,0.354 1.521,0.708 0.552,0.354 18 false 8 1.417,0.083 1.969,0.438 0.552,0.354 18 false 10 2.25,0 2.802,0.354 0.552,0.354 18 false 8 3.76,0.094 4.313,0.448 0.552,0.354 18 false 8 5.052,0.365 5.604,0.719 0.552,0.354 18 false 7 0.854,2.031 1.406,2.385 0.552,0.354 18 false 7 6.656,1.521 7.021,1.927 0.365,0.406 18 false 7 2.938,3.448 3.49,3.802 0.552,0.354 18 false 7 3.198,2.635 3.75,2.99 0.552,0.354 18 false 8 4.51,2.26 5.063,2.615 0.552,0.354 18 false 8 5.927,2.375 6.479,2.729 0.552,0.354 18 false 8 3.885,2.427 4.438,2.781 0.552,0.354 18 false 9 4.396,3.229 4.854,3.427 0.458,0.198 10 false x10 5.219,3.042 5.677,3.24 0.458,0.198 10 false x2 5.542,2.969 6,3.167 0.458,0.198 10 false x2 3.958,3.417 4.417,3.615 0.458,0.198 10 false x2 1.771,1.052 2.229,1.25 0.458,0.198 10 false x2 3.052,0.688 3.51,0.885 0.458,0.198 10 false x2 3.375,0.625 3.833,0.823 0.458,0.198 10 false x2 2.167,0.917 2.625,1.115 0.458,0.198 10 false x10 2.365,2.635 2.823,2.833 0.458,0.198 10 false x8 1.333,2.198 1.885,2.552 0.552,0.354 18 false 11

Procedure Part Name Code
Z101186

Z101188

Z101187

7 SLIDING ROOF DRAIN HOSE - - - -
8 FRONT SLIDING ROOF HOUSING MOUNTING BRACKET 63241A - - -
9 CENTER SLIDING ROOF HOUSING MOUNTING BRACKET LH 63244C - - -
10 CENTER SLIDING ROOF HOUSING MOUNTING BRACKET RH 63243C - - -
11 SLIDING ROOF HOUSING ASSEMBLY - - - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during sliding roof housing assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Link
Sliding roof ECU (Sliding roof drive gear sub-assembly) Initialize panoramic moon roof system (Sliding roof)
·

Auto operation function

·

Jam protection function

·

Key-off operation function

·

Key-linked function

·

Wireless transmitter-linked function

·

Sliding roof open warning function

·

Sliding roof may move in reverse or become misaligned


(Click here)
Sliding roof glass sub-assembly (Including removal and installation) Initialize panoramic moon roof system (Sliding roof)
·

Auto operation function

·

Jam protection function

·

Key-off operation function

·

Key-linked function

·

Wireless transmitter-linked function

·

Sliding roof open warning function

·

Sliding roof may move in reverse or become misaligned


(Click here)
·

Sliding roof housing panel (Including removal and installation)

·

Slide roof rail sub-assembly (Including removal and installation)


Initialize panoramic moon roof system (Sliding roof)
·

Auto operation function

·

Jam protection function

·

Key-off operation function

·

Key-linked function

·

Wireless transmitter-linked function

·

Sliding roof open warning function

·

Sliding roof may move in reverse or become misaligned


(Click here)
·

Roof sunshade ECU (sliding roof drive gear assembly) (Including removal and installation)

·

Sunshade trim sub-assembly (Including removal and installation)


Initialize panoramic moon roof system (Roof sunshade)
·

Auto operation function

·

Jam protection function

·

Key-linked function

·

Wireless transmitter-linked function

·

Key-off operation function

·

Roof sunshade may move in reverse or become misaligned


(Click here)

PROCEDURE

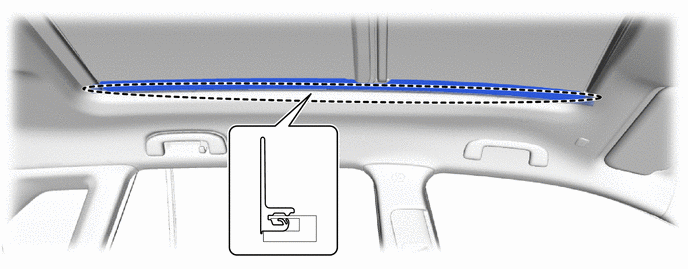

Hide 63218S 1.REMOVE SLIDING ROOF SIDE GARNISH LH

a.
B625851


Hide 63217G 2.REMOVE SLIDING ROOF SIDE GARNISH RH

a.

Use the same procedure as for the LH side.


Hide 63201H 3.REMOVE SLIDING ROOF PANEL SUB-ASSEMBLY

a.
B635862N01
1.927,0 2.208,0.354 0.281,0.354 18 false i

i.

Open the sliding roof panel sub-assembly to a position where the 2 screws on the front side of the sliding roof panel sub-assembly can be removed.



b.
B625852N01
1.333,0.094 1.469,0.375 0.135,0.281 18 true i 5,1.75 5.135,2.042 0.135,0.292 18 true i

i.

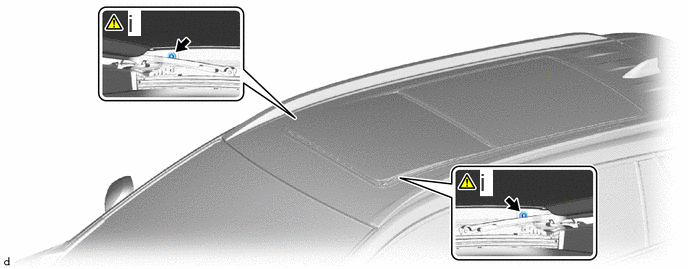

Using a T25 "TORX" socket wrench, remove the 2 screws.



c.

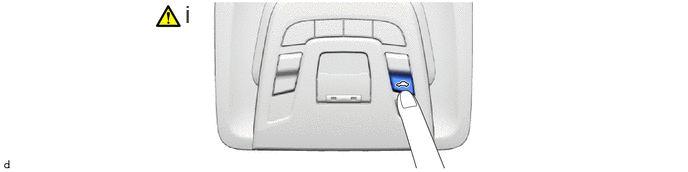

B625853N01
1.927,0 2.208,0.354 0.281,0.354 18 false i

i.

Move the sliding roof panel sub-assembly to the fully closed position.



d.
B635863N01
1.135,0.094 1.281,0.375 0.146,0.281 18 true i 4.917,1.802 5.063,2.083 0.146,0.281 18 true i

i.

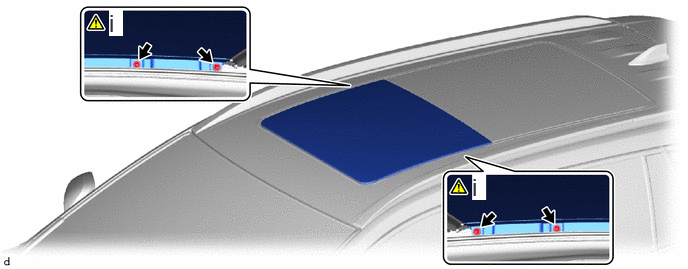

Using a T25 "TORX" socket wrench, remove the 4 screws and sliding roof panel sub-assembly.

NOTICE:

To prevent the sliding roof panel sub-assembly and sliding roof drive gear sub-assembly from becoming misaligned, move the sliding roof panel sub-assembly (sliding roof drive cable sub-assembly) to the fully closed position before removing it.




Hide 63201G 4.REMOVE SLIDING ROOF GLASS SUB-ASSEMBLY

a.
B625854N01
0.365,0.146 0.5,0.427 0.135,0.281 18 true i 4.281,1.729 4.417,2.021 0.135,0.292 18 true i

i.

Using a T25 "TORX" socket wrench, remove the 4 screws and sliding roof glass sub-assembly.



Hide 62170A 6.REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

a.

Use the same procedure as for the LH side.

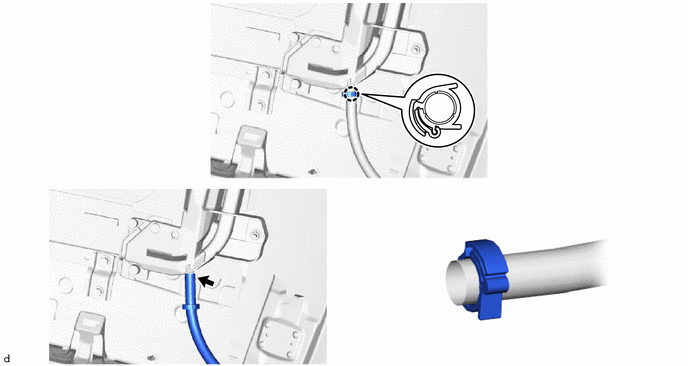

Hide 7.DISCONNECT SLIDING ROOF DRAIN HOSE

a.
B625855


b.

Use the same procedure for all of the sliding roof drain hose.


Hide 63241A 8.REMOVE FRONT SLIDING ROOF HOUSING MOUNTING BRACKET

a.
B625857


b.

Use the same procedure for all of the front sliding roof housing mounting bracket.

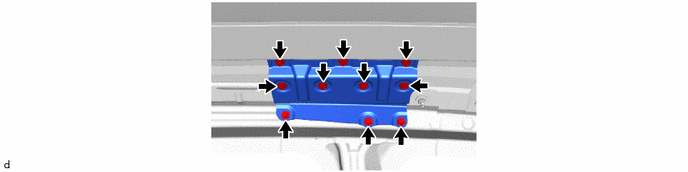

Hide 63244C 9.REMOVE CENTER SLIDING ROOF HOUSING MOUNTING BRACKET LH

a.
B625856


Hide 63243C 10.REMOVE CENTER SLIDING ROOF HOUSING MOUNTING BRACKET RH

a.

Use the same procedure as for the LH side.

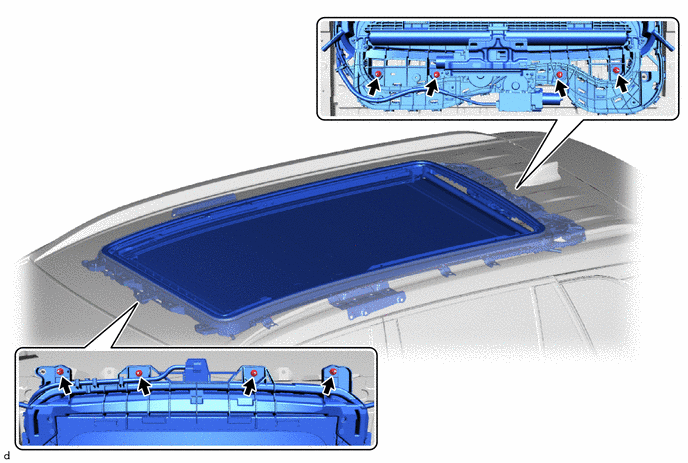

Hide 11.REMOVE SLIDING ROOF HOUSING ASSEMBLY

a.
B625858
