WINDOW / GLASS POWER WINDOW REGULATOR MOTOR(for Rear Door) INSTALLATION

CAUTION / NOTICE / HINT

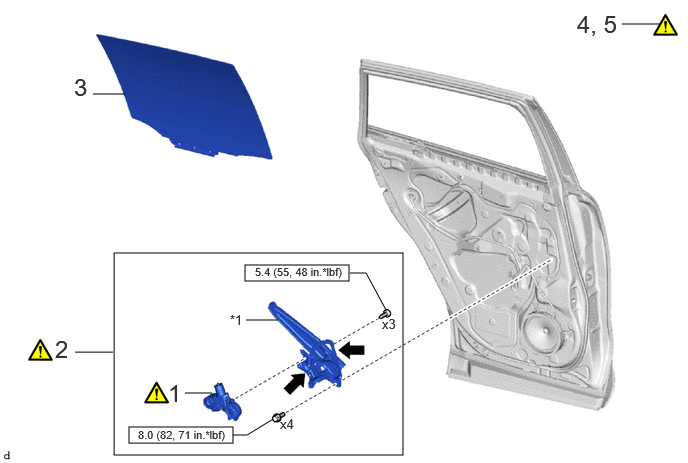

COMPONENTS (INSTALLATION)

1.344,4.448 2.427,4.615 1.083,0.167 2.552,2.76 3.635,2.927 1.083,0.167 1.188,2.635 4.198,4.74 3.01,2.104 1.302,0.979 0.969,0.979 false 2.208,4.094 1.927,4.094 false 2.844,4.365 2.573,4.531 2.573,4.531 2.427,4.531 false 4.021,3.229 3.813,2.844 3.813,2.844 3.646,2.844 false 1.177,3.667 0.781,3.667 false 6.875,0.25 6.479,0.25 false 2.563,3.333 2.896,3.333 false 0.771,0.76 1.052,1.115 0.281,0.354 18 false 3 1.75,3.948 2.031,4.302 0.281,0.354 18 false 1 1.438,4.458 2.417,4.646 0.979,0.188 8 false 8.0 (82, 71 in.*lbf) 2.917,4.333 3.177,4.552 0.26,0.219 10 false x4 3.979,3.292 4.24,3.51 0.26,0.219 10 false x3 2.656,2.76 3.635,2.948 0.979,0.188 8 false 5.4 (55, 48 in.*lbf) 0.573,3.49 0.854,3.844 0.281,0.354 18 false 2 6.01,0.104 6.625,0.438 0.615,0.333 18 false 4, 5 2.396,3.25 2.708,3.448 0.313,0.198 10 false *1

Procedure		Part Name Code
1	POWER WINDOW REGULATOR MOTOR ASSEMBLY	85710F	(202307,999999,_59,_115107,_0510341,RM100000002CWMA_01_0175,)	-	-
2	REAR DOOR WINDOW REGULATOR ASSEMBLY	-	(202307,999999,_59,_115107,_0510341,RM100000002CWMA_01_0199,)	-	-
3	REAR DOOR GLASS SUB-ASSEMBLY	68104	-	-	-
4	INITIALIZE POWER WINDOW CONTROL SYSTEM	-	(202307,999999,_59,_115107,_0510341,RM100000002CWMA_01_0239,)	-	-
5	INSPECT POWER WINDOW OPERATION	-	(202307,999999,_59,_115107,_0510341,RM100000002CWMA_01_0240,)	-	-

*1	REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque		MP grease

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 85710F 1.INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY

NOTICE:: The regulator arm must be below the intermediate position when installing the power window regulator motor assembly.

1.979,0.031 2.26,0.385 0.281,0.354 18 false i

Using a T25 "TORX" socket wrench, install the power window regulator motor assembly with the 3 screws to the rear door window regulator sub-assembly.

Torque:: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

HINT:: When replacing a power window regulator motor assembly, a new power window regulator motor assembly uses self-tapping screws to thread new installation holes when the self-tapping screws are inserted.

Hide Display 2.INSTALL REAR DOOR WINDOW REGULATOR ASSEMBLY

Click here(

202307,999999,_59,_113746,_0510835,RM100000002CODI_01_0280,)

Hide Display 68104 3.INSTALL REAR DOOR GLASS SUB-ASSEMBLY

Click hereVehicle Interior>DOOR LOCK>REAR DOOR LOCK>INSTALLATION202307,999999,_58,_115226,_0510792,RM100000002CO92,

Hide Display 4. INITIALIZE POWER WINDOW CONTROL SYSTEM

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM (Production Date from 2023/04)>INITIALIZATION202201,999999,_59,_115107,_0583893,RM1000000029E10,

Hide Display 5.INSPECT POWER WINDOW OPERATION

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM (Production Date from 2023/04)>OPERATION CHECK202307,999999,_59,_115107,_0583893,RM100000002BIAU,
