RM38T0EC _59 Vehicle Exterior _115107 WINDOW / GLASS _0510340 POWER WINDOW REGULATOR MOTOR(for Front Door) A

WINDOW / GLASS  POWER WINDOW REGULATOR MOTOR(for Front Door)  INSTALLATION


CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

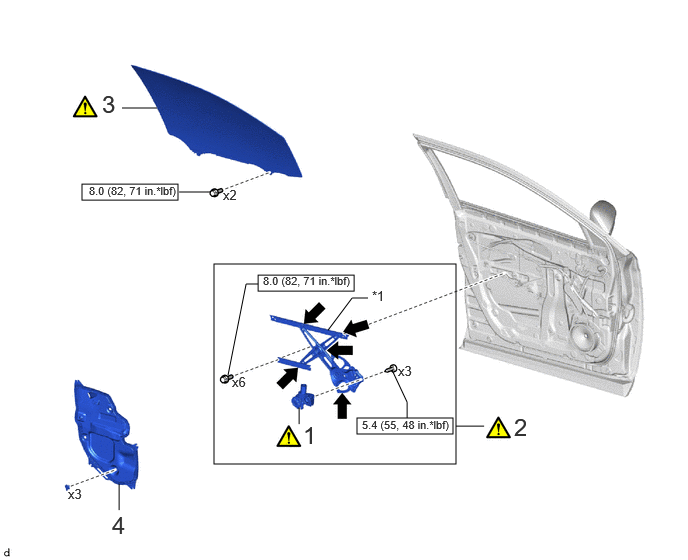

B625910N01
0.854,1.917 1.854,2.083 1,0.167 2.688,2.865 3.688,3.031 1,0.167 3.719,4.354 4.719,4.521 1,0.167 2.229,2.75 4.75,4.833 2.521,2.083 1.271,1.125 1.635,1.125 false 1.865,2 2.198,2 false 1.24,5.313 1.24,5.042 false 2.375,3.906 2.563,2.958 2.563,2.958 2.688,2.958 false 4.083,3.854 4.24,4.188 4.24,4.188 4.24,4.354 false 4.75,4.438 5.042,4.438 false 3.115,4.417 3.115,4.25 false 3.417,3.438 3.667,3.104 3.667,3.104 3.833,3.104 false 3.156,4.385 3.385,4.656 0.229,0.271 18 false 1 1.063,0.938 1.292,1.208 0.229,0.271 18 false 3 2.323,1.948 2.552,2.135 0.229,0.188 10 false x2 0.927,1.917 1.875,2.083 0.948,0.167 8 false 8.0 (82, 71 in.*lbf) 1.167,5.323 1.396,5.594 0.229,0.271 18 false 4 0.708,5.063 0.938,5.25 0.229,0.188 10 false x3 2.417,3.896 2.646,4.083 0.229,0.188 10 false x6 4.146,3.781 4.375,3.969 0.229,0.188 10 false x3 2.74,2.854 3.688,3.021 0.948,0.167 8 false 8.0 (82, 71 in.*lbf) 3.771,4.354 4.719,4.521 0.948,0.167 8 false 5.4 (55, 48 in.*lbf) 5.354,4.302 5.583,4.573 0.229,0.271 18 false 2 3.875,3 4.188,3.198 0.313,0.198 10 false *1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 POWER WINDOW REGULATOR MOTOR ASSEMBLY 85720D (Click here) - -
2 FRONT DOOR WINDOW REGULATOR ASSEMBLY - (Click here) - -
3 FRONT DOOR GLASS SUB-ASSEMBLY 68102 (Click here) - -
4 FRONT DOOR SERVICE HOLE COVER 67832 - - -

*1 FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY - -
V100146

N*m (kgf*cm, ft.*lbf): Specified torque
V100135

MP grease

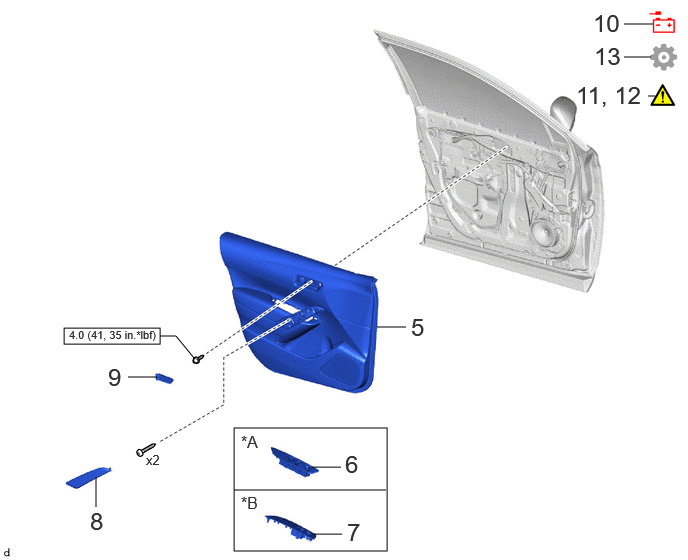

B625838N06
2.438,4.458 4.031,5.74 1.594,1.281 0.667,3.417 1.667,3.583 1,0.167 6.5,0.25 6.802,0.25 false 6.5,0.594 6.781,0.594 false 6.75,1 6.823,1 false 3.927,3.406 4.229,3.406 false 3.25,4.865 3.552,4.865 false 3.26,5.563 3.563,5.563 false 1.333,3.927 1.635,3.927 false 1,4.969 1,5.281 false 2.438,5.104 4.021,5.104 false 1.667,3.5 1.833,3.5 1.833,3.5 2.021,3.729 false 6.177,0.094 6.521,0.406 0.344,0.313 18 false 10 6.188,0.438 6.51,0.75 0.323,0.313 18 false 13 6,0.844 6.917,1.24 0.917,0.396 18 false 11, 12 4.281,3.26 4.563,3.615 0.281,0.354 18 false 5 3.594,4.688 3.875,5.042 0.281,0.354 18 false 6 3.615,5.396 3.896,5.75 0.281,0.354 18 false 7 1.125,3.781 1.427,4.073 0.302,0.292 18 false 9 0.938,5.281 1.24,5.573 0.302,0.292 18 false 8 2.51,4.5 2.792,4.76 0.281,0.26 12 false *A 2.51,5.135 2.792,5.396 0.281,0.26 12 false *B 1.521,4.708 1.833,4.906 0.313,0.198 10 false x2 0.719,3.417 3.167,3.573 2.448,0.156 8 false 4.0 (41, 35 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

5 FRONT DOOR TRIM BOARD SUB-ASSEMBLY 67602 - - -
6 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL - - - -
7 POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL - - - -
8 DOOR ASSIST GRIP COVER 74646 - - -
9 FRONT DOOR INSIDE HANDLE BEZEL PLUG 69284F - - -
10 CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
11 INITIALIZE POWER WINDOW CONTROL SYSTEM - (Click here) - -
12 INSPECT POWER WINDOW OPERATION - (Click here) - -
13 INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL - - - (Click here)

*A for Driver Side *B for Front Passenger Side
V100146

N*m (kgf*cm, ft.*lbf): Specified torque - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 85720D 1.INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY

Z101186

NOTICE:

The regulator arm must be below the intermediate position when installing the power window regulator motor assembly.



a.
B635850N01
1.979,0.042 2.26,0.396 0.281,0.354 18 false i

i.

Using a T25 "TORX" socket wrench, install the power window regulator motor assembly with the 3 screws to the front door window regulator sub-assembly.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)

HINT:

When replacing a power window regulator motor assembly, a new power window regulator motor assembly uses self-tapping screws to thread new installation holes when the self-tapping screws are inserted.




Hide 2.INSTALL FRONT DOOR WINDOW REGULATOR ASSEMBLY

Z101186

Click here(Click here)

Hide 68102 3.INSTALL FRONT DOOR GLASS SUB-ASSEMBLY

Z101186

Click here(Click here)

Hide 67832 4.INSTALL FRONT DOOR SERVICE HOLE COVER

Hide 6.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Hide 7.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Hide 74646 8.INSTALL DOOR ASSIST GRIP COVER

Hide 69284F 9.INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

Hide 13. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
