EXTERIOR PANELS / TRIM REAR BUMPER(for GTMC Made) REMOVAL

CAUTION / NOTICE / HINT

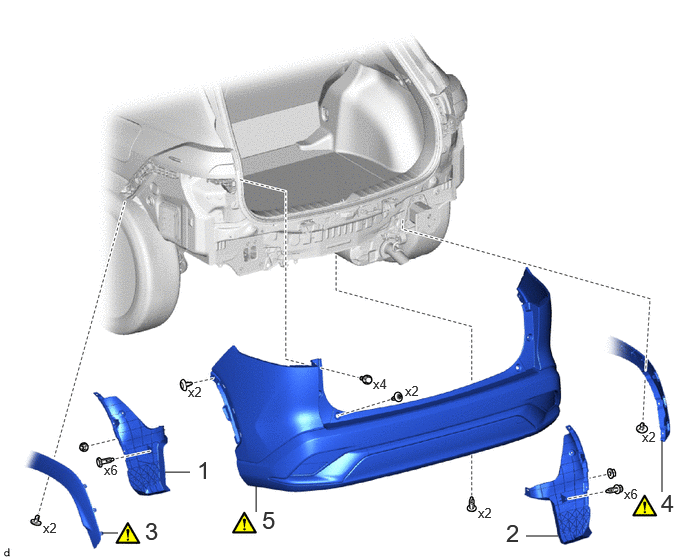

COMPONENTS (REMOVAL)

1.063,5.552 1.229,5.552 false 1.719,4.917 1.979,4.917 false 2.667,5.063 2.667,5.333 false 5.479,5.583 5.813,5.583 false 6.896,4.583 6.896,5.125 false 1.51,5.385 1.792,5.74 0.281,0.354 18 false 3 2.052,4.75 2.333,5.104 0.281,0.354 18 false 1 2.729,5.271 3.01,5.625 0.281,0.354 18 false 5 5.271,5.406 5.552,5.76 0.281,0.354 18 false 2 6.885,5.094 7.094,5.375 0.208,0.281 18 false 4 0.448,5.417 0.708,5.625 0.26,0.208 10 false x2 1.083,4.813 1.344,5.021 0.26,0.208 10 false x6 1.958,4 2.219,4.208 0.26,0.208 10 false x2 3.885,3.917 4.146,4.125 0.26,0.208 10 false x4 4.219,3.99 4.479,4.198 0.26,0.208 10 false x2 4.979,5.26 5.24,5.469 0.26,0.208 10 false x2 6.5,5.063 6.76,5.271 0.26,0.208 10 false x6 6.688,4.469 6.948,4.677 0.26,0.208 10 false x2

Procedure		Part Name Code
1	REAR BUMPER SIDE SEAL LH	52592	-	-	-
2	REAR BUMPER SIDE SEAL RH	52591	-	-	-
3	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH	75606B	(202307,999999,_59,_114126,_0505911,RM100000002CTJV_01_0070,)	-	-
4	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH	75605B	(202307,999999,_59,_114126,_0505911,RM100000002CTJV_01_0070,)	-	-
5	REAR BUMPER ASSEMBLY	-	(202307,999999,_59,_114126,_0505911,RM100000002CTJV_01_0068,)	-	-

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

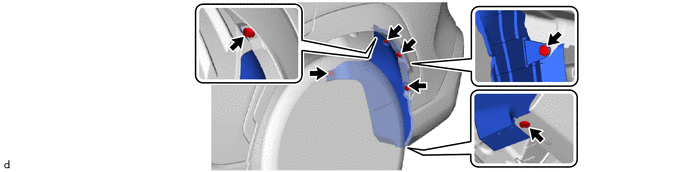

Hide Display 52592 1.REMOVE REAR BUMPER SIDE SEAL LH

Hide Display 52591 2.REMOVE REAR BUMPER SIDE SEAL RH

Use the same procedure as for the LH side.

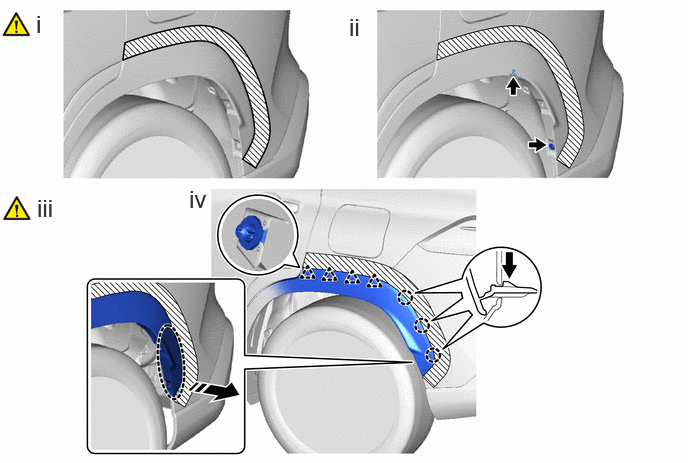

Hide Display 75606B 3.SEPARATE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH

0.375,0.104 0.656,0.458 0.281,0.354 18 false i 3.635,0.135 3.917,0.49 0.281,0.354 18 false ii 0.385,2.021 0.667,2.375 0.281,0.354 18 false iii 1.969,1.927 2.25,2.281 0.281,0.354 18 false iv

	Push		Place Hand Here
	Remove in this Direction	-	-

Apply protective tape around the quarter outside moulding sub-assembly LH as shown in the illustration.

ii.

Remove the 2 clips.

iii.

Disengage the claws by pushing the area indicated by the arrow in the illustration with a finger.

NOTICE:: To avoid damaging the claws, do not forcibly pull the quarter outside moulding sub-assembly LH.

iv.

Disengage the clips to separate the quarter outside moulding sub-assembly LH from the rear bumper assembly as shown in the illustration.

Hide Display 75605B 4.SEPARATE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH

Use the same procedure as for the LH side.

Hide Display 5.REMOVE REAR BUMPER ASSEMBLY

0.417,0.031 0.656,0.344 0.24,0.313 18 false i 0.365,1.969 0.604,2.281 0.24,0.313 18 false ii 2.323,4.063 2.563,4.375 0.24,0.313 18 false iii

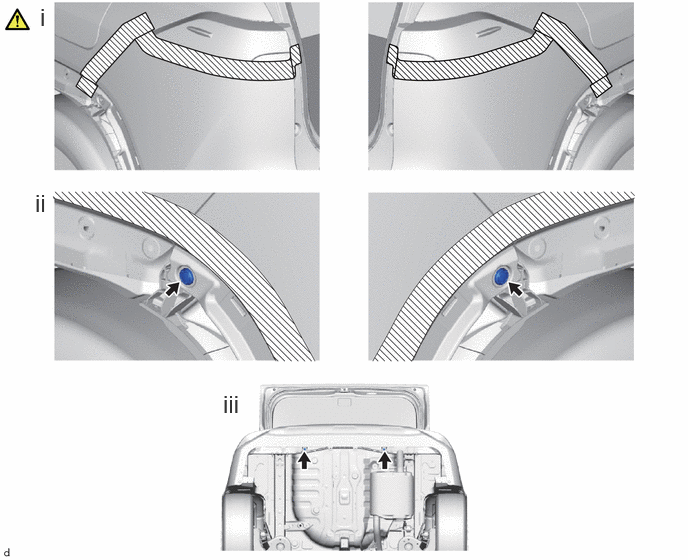

Apply protective tape around the rear bumper assembly as shown in the illustration.

ii.

Remove the 2 clips.

iii.

Remove the 2 clips.

2.292,0 2.573,0.354 0.281,0.354 18 false i 0.24,2 0.521,2.354 0.281,0.354 18 false ii

Remove in this Direction

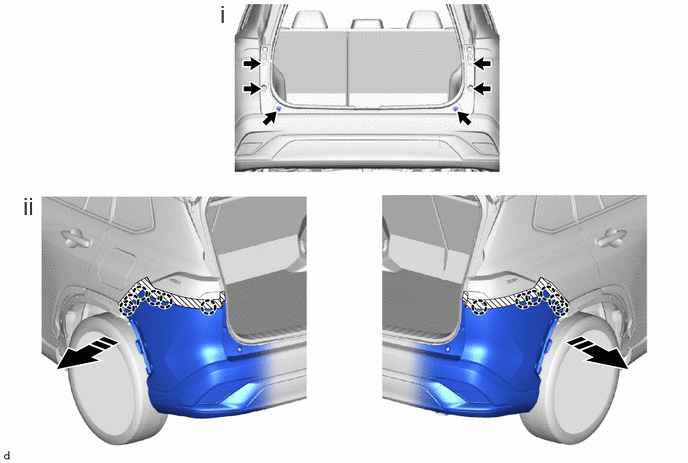

Remove the 2 rear bumper upper stoppers and 4 screws.

ii.

Disengage the claws as shown in the illustration.

3.396,0.313 3.646,0.51 0.25,0.198 12 true *A 1.938,0.052 2.406,0.354 0.469,0.302 18 false i 3.99,0.323 4.167,0.583 0.177,0.26 18 true ii

*A	w/ Kick Sensor	-	-
	Remove in this Direction	-	-

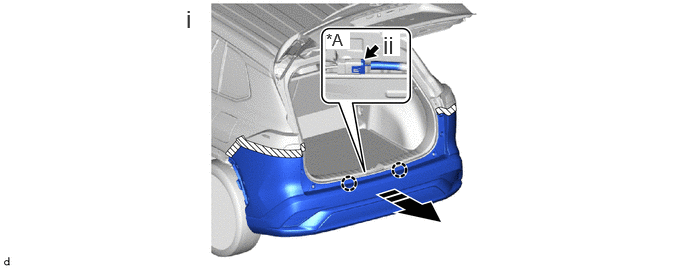

Disengage the claws to remove the rear bumper assembly as shown in the illustration.

ii.

w/ Kick Sensor:

1. Disconnect the connector.
