EXTERIOR PANELS / TRIM FRONT DOOR BELT MOULDING REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

3.917,3.833 6.333,5.333 2.417,1.5 5.167,5.333 5.167,3.833 false 3.281,3.583 3.615,3.583 false 0.698,4.177 0.948,4.177 false 2.083,1.885 2.083,1.552 false 1.01,1.521 1.01,1.188 false 3.344,2.292 3.344,1.958 false 4.573,4.719 4.573,4.385 false 5.76,4.708 5.76,4.375 false 0.698,5.094 0.948,5.094 false 1.635,4.781 1.948,4.979 0.313,0.198 10 false x2 3.979,3.865 4.354,4.104 0.375,0.24 12 false *A 5.229,3.865 5.604,4.104 0.375,0.24 12 false *B 2.021,1.906 2.302,2.26 0.281,0.354 18 false 6 0.458,4.021 0.74,4.375 0.281,0.354 18 false 1 0.479,4.927 0.76,5.281 0.281,0.354 18 false 2 4.667,4.698 4.948,5.052 0.281,0.354 18 false 3 5.844,4.708 6.125,5.063 0.281,0.354 18 false 4 3.719,3.448 4,3.802 0.281,0.354 18 false 5 3.281,2.323 3.563,2.677 0.281,0.354 18 false 8 0.958,1.563 1.24,1.917 0.281,0.354 18 false 7

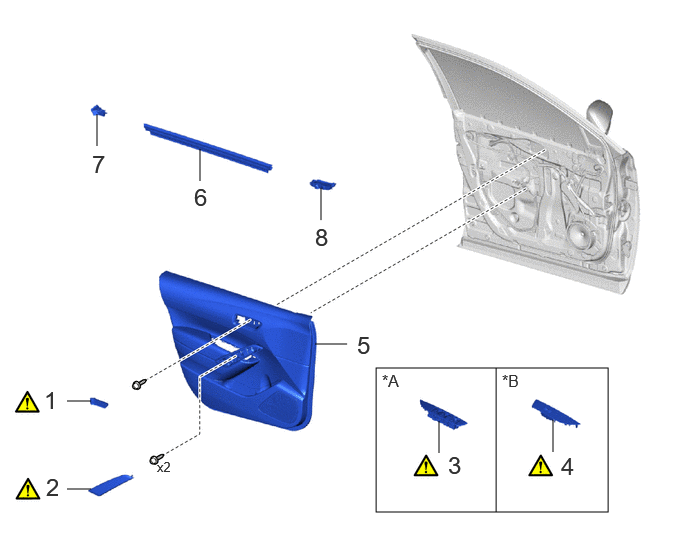

Procedure		Part Name Code
1	FRONT DOOR INSIDE HANDLE BEZEL PLUG	69284F	(202307,999999,_59,_114126,_0505930,RM100000002CTJT_01_0278,)	-	-
2	DOOR ASSIST GRIP COVER	74646	(202307,999999,_59,_114126,_0505930,RM100000002CTJT_01_0277,)	-	-
3	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	(202307,999999,_59,_114126,_0505930,RM100000002CTJT_01_0276,)	-	-
4	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	(202307,999999,_59,_114126,_0505930,RM100000002CTJT_01_0275,)	-	-
5	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602	-	-	-
6	FRONT DOOR GLASS INNER WEATHERSTRIP	68172A	-	-	-
7	FRONT DOOR REAR BELT SEAL	68195B	-	-	-
8	FRONT DOOR FRONT BELT SEAL	68193C	-	-	-

for Driver Side

for Front Passenger Side

0.729,1.792 1.01,1.792 false 3.042,3.208 3.323,3.208 false 2.177,4.198 2.458,4.198 false 6.323,1.01 6.323,1.292 false 1.427,3.979 1.615,4.156 0.188,0.177 10 false x2 6.313,1.344 6.438,1.542 0.125,0.198 10 false ● 0.531,1.635 0.729,1.896 0.198,0.26 18 false 9 2.521,4.021 2.854,4.281 0.333,0.26 18 false 10 3.417,3.063 3.781,3.323 0.365,0.26 18 false 11 6.438,1.26 6.771,1.542 0.333,0.281 18 false 12

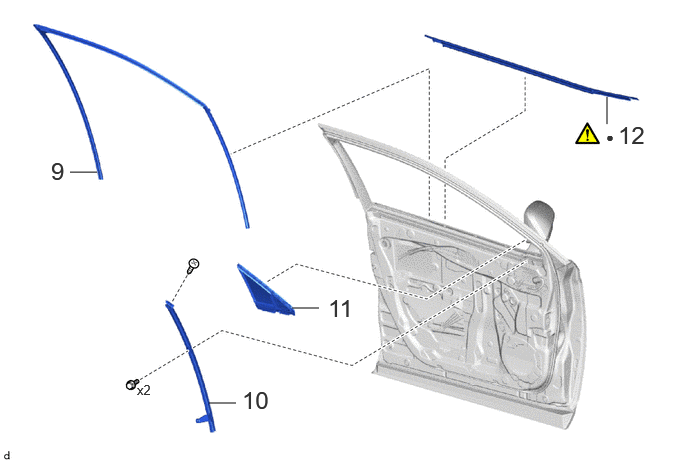

Procedure		Part Name Code

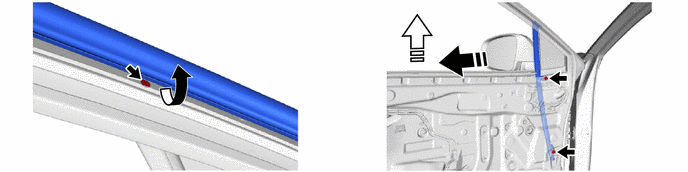

9	FRONT DOOR GLASS RUN	68151D	-	-	-
10	FRONT LOWER FRONT DOOR FRAME SUB-ASSEMBLY	67402F	-	-	-
11	FRONT DOOR FIX WINDOW GLASS	68126	-	-	-

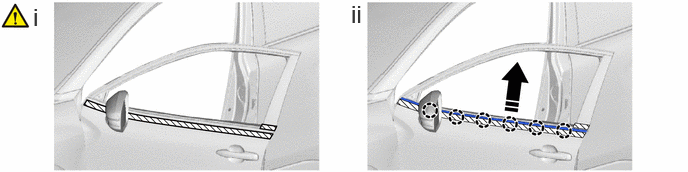

12	FRONT DOOR BELT MOULDING ASSEMBLY	75720	(202307,999999,_59,_114126,_0505930,RM100000002CTJT_01_0266,)	-	-

●

Non-reusable part

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
