Vehicle Exterior
_113746
DOOR / HATCH
_0510843
POWER BACK DOOR TOUCH SENSOR
A
DOOR / HATCH POWER BACK DOOR TOUCH SENSOR INSTALLATION
CAUTION / NOTICE / HINT

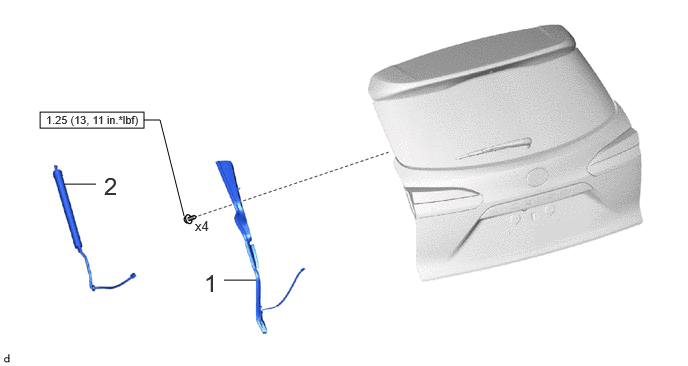

COMPONENTS (INSTALLATION)
0.417,1.167 1.5,1.333
1.083,0.167
0.667,1.917 1,1.917
false
2.333,2.917 2.667,2.917
false
1.5,1.25 1.667,1.25
1.667,1.25 1.917,2.25
false
2.125,2.802 2.406,3.156
0.281,0.354
18
false
1
2.031,2.271 2.313,2.625
0.281,0.354
10
false
x4
1.083,1.792 1.365,2.146
0.281,0.354
18
false
2
0.479,1.177 3.052,1.333
2.573,0.156
8
false
1.25 (13, 11 in.*lbf)
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | POWER BACK DOOR SENSOR ASSEMBLY | 84280D | - | - | - |
| 2 | POWER BACK DOOR UNIT ASSEMBLY SET | 68920 | - | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
84280D
1.INSTALL POWER BACK DOOR SENSOR ASSEMBLY
- Torque:
- 1.25 N*m (13 kgf*cm, 11 in.*lbf)
68920
2.INSTALL POWER BACK DOOR UNIT ASSEMBLY SET
