RM38T0EC
_59
Vehicle Exterior
_113746
DOOR / HATCH
_0510843
POWER BACK DOOR TOUCH SENSOR
A
DOOR / HATCH POWER BACK DOOR TOUCH SENSOR REMOVAL
CAUTION / NOTICE / HINT

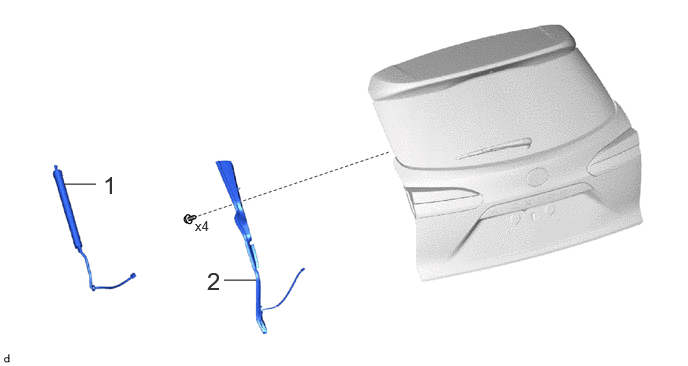

COMPONENTS (REMOVAL)
0.667,1.917 1,1.917
false
2.333,2.917 2.667,2.917
false
1.073,1.781 1.354,2.135
0.281,0.354
18
false
1
2.031,2.271 2.313,2.625
0.281,0.354
10
false
x4
2.156,2.781 2.438,3.135
0.281,0.354
18
false
2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | POWER BACK DOOR UNIT ASSEMBLY SET | 68920 | - | - | - |
| 2 | POWER BACK DOOR SENSOR ASSEMBLY | 84280D | - | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
68920
1.REMOVE POWER BACK DOOR UNIT ASSEMBLY SET
84280D

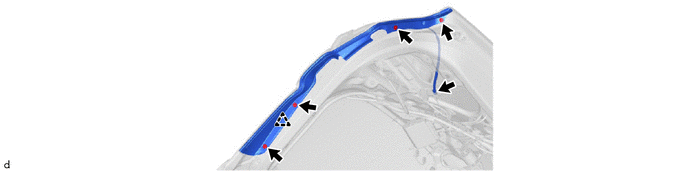

2.REMOVE POWER BACK DOOR SENSOR ASSEMBLY
a.
