RM38T0EC
_59
Vehicle Exterior
_113746
DOOR / HATCH
_0510845
BACK DOOR CLOSER ECU
A
DOOR / HATCH BACK DOOR CLOSER ECU REMOVAL
CAUTION / NOTICE / HINT

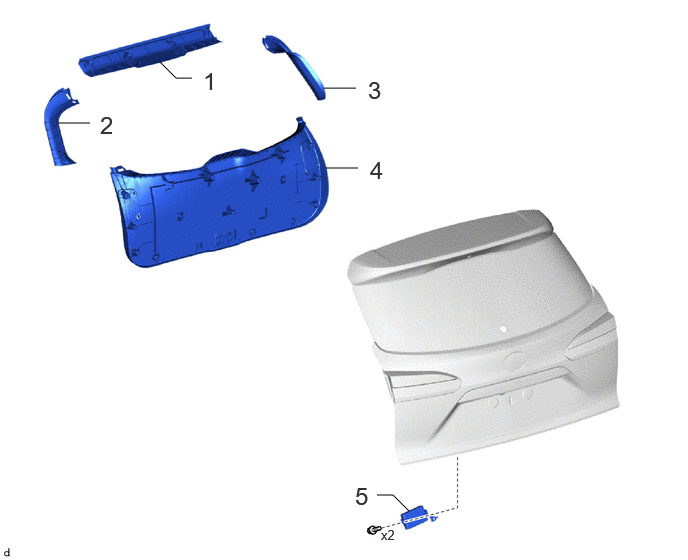

COMPONENTS (REMOVAL)
3.396,1.75 3.729,1.75
false
3.375,0.917 3.708,0.917
false
0.604,1.281 0.938,1.281
false
1.667,0.646 1.833,0.813
1.833,0.813 2,0.813
false
3.927,5.156 4.094,5.156
4.094,5.156 4.26,5.323
false
3.969,5.49 4.281,5.688
0.313,0.198
10
false
x2
2.115,0.698 2.396,1.052
0.281,0.354
18
false
1
1.042,1.156 1.323,1.51
0.281,0.354
18
false
2
3.833,0.792 4.115,1.146
0.281,0.354
18
false
3
3.854,1.625 4.135,1.979
0.281,0.354
18
false
4
3.698,5.021 3.979,5.375
0.281,0.354
18
false
5
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | BACK DOOR TRIM UPPER PANEL ASSEMBLY | 64790B | - | - | - |
| 2 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
| 3 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
| 4 | BACK DOOR TRIM PANEL ASSEMBLY | 64780A | - | - | - |
| 5 | MULTIPLEX NETWORK DOOR ECU | 89222A | - | - | - |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced multiplex network door ecu removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Multiplex network door ECU | Initialize power back door system | Power Back Door System | ( 202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
|
PROCEDURE
64790B
1.REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY
67938A
2.REMOVE BACK DOOR SIDE GARNISH LH
67937B
3.REMOVE BACK DOOR SIDE GARNISH RH
a.
Use the same procedure as for the LH side.
64780A
4.REMOVE BACK DOOR TRIM PANEL ASSEMBLY
89222A

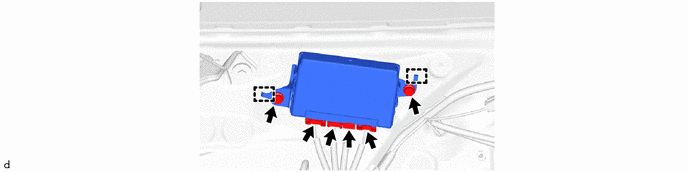

5.REMOVE MULTIPLEX NETWORK DOOR ECU
a.
