PARK ASSIST / MONITORING PANORAMIC VIEW MONITOR SYSTEM(Production Date from 2023/04) TERMINALS OF ECU

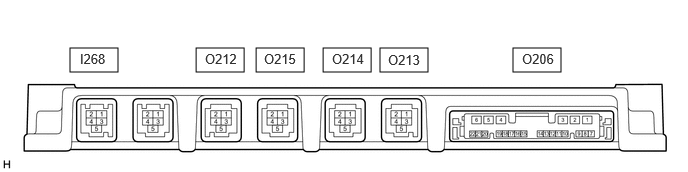

PARKING ASSIST ECU
5.344,0.5 5.844,0.75
0.5,0.25
3.958,0.5 4.458,0.75
0.5,0.25
0.729,0.5 1.229,0.75
0.5,0.25
2.667,0.5 3.167,0.75
0.5,0.25
3.365,0.5 3.865,0.75
0.5,0.25
2.042,0.5 2.542,0.75
0.5,0.25
5.438,0.531 5.896,0.729
0.458,0.198
10
false
O206
0.833,0.531 1.292,0.729
0.458,0.198
10
false
I268
3.458,0.531 3.917,0.729
0.458,0.198
10
false
O214
2.135,0.531 2.594,0.729
0.458,0.198
10
false
O212
2.75,0.531 3.208,0.729
0.458,0.198
10
false
O215
4.042,0.542 4.5,0.74
0.458,0.198
10
false
O213
a.
Disconnect the O206 parking assist ECU connector.
b.
Measure the voltage and resistance according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| O206-1 (+B) - O206-4 (GND1) | Power source signal | Ignition switch off | 11 to 14 V |
| O206-2 (IG) - O206-4 (GND1) | IG power source signal | Ignition switch ON | 11 to 14 V |
| Ignition switch off | Below 1 V | ||
| O206-4 (GND1) - Body ground | Ground | Always | Below 1 Ω |
c.
Reconnect the O206 parking assist ECU connector.
d.
Measure the voltage and resistance according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| O206-7 (REV) - Body ground | Reverse signal input | Ignition switch ON, shift lever in R | 11 to 14 V |
| Ignition switch ON, shift lever except R | Below 1 V | ||
| O206-11 (BLSW) - O206-4 (GND1) | Panoramic view monitor switch signal | Ignition switch ON, panoramic view monitor switch off | 5.5 to 6.5 V |
| Ignition switch ON, panoramic view monitor switch on | Below 1 V | ||
| O206-12 (CANH) | CAN communication line | - | - |
| O206-13 (CANL) | CAN communication line | - | - |
| O206-10 (RSW+) - O206-4 (GND1) | Terminal required by law | Panoramic image being displayed | 0 to 2 V |
| Panoramic image not being displayed | 5.5 to 7.05 V | ||
| I268-1 (GB+) - I268-2 (GGND) | Power source to video signal | Ignition switch ON | 7.5 to 9.0 V |
| I268-2 (GGND) - Body ground | Video signal ground | Always | Below 1 Ω |
| I268-3 (GVO+) | Video signal (Digital) | - | - |
| I268-4 (GVO-) | Video signal (Digital) | - | - |
| I268-5 (GVG1) - Body ground | Shield ground | Always | Below 1 Ω |
| O213-1 (BCB+) - O213-2 (BGND) | Power source to front television camera | Ignition switch ON | 7.5 to 8.5 V |
| O213-2 (BGND) - Body ground | Front television camera assembly ground | Always | Below 1 Ω |
| O213-3 (BCV+) - O213-4 (BCV-) | Front television camera assembly display signal input | - | - |
| O213-4 (BCV-) - Body ground | Front television camera assembly display ground | Always | 10 kΩ or higher |
| O213-5 (SGND) - Body ground | Front television camera assembly ground (shield) | Always | Below 1 Ω |
| O215-1 (LCB+) - O215-2 (LGND) | Power source to side television camera assembly LH | Ignition switch ON | 7.5 to 8.5 V |
| O215-2 (LGND) - Body ground | Side television camera assembly LH ground | Always | Below 1 Ω |
| O215-3 (LCV+) - O215-4 (LCV-) | Side television camera assembly LH display signal input | - | - |
| O215-4 (LCV-) - Body ground | Side television camera assembly LH display ground | Always | 10 kΩ or higher |
| O215-5 (SGND) - Body ground | Side television camera assembly LH ground (shield) | Always | Below 1 Ω |
| O212-1 (CB+) - O212-2 (CGND) | Power source to rear television camera assembly | Ignition switch ON | 7.5 to 8.5 V |
| O212-2 (CGND) - Body ground | Rear television camera assembly ground | Always | Below 1 Ω |
| O212-3 (CV+) - O212-4 (CV-) | Rear television camera assembly display signal input | - | - |
| O212-4 (CV-) - Body ground | Rear television camera assembly display ground | Always | 10 kΩ or higher |
| O212-5 (SGND) - Body ground | Rear television camera assembly ground (shield) | Always | Below 1 Ω |
| O214-1 (RCB+) - O214-2 (RGND) | Power source to side television camera assembly RH | Ignition switch ON | 7.5 to 8.5 V |
| O214-2 (RGND) - Body ground | Side television camera assembly RH ground | Always | Below 1 Ω |
| O214-3 (RCV+) - O214-4 (RCV-) | Side television camera assembly RH display signal input | - | - |
| O214-4 (RCV-) - Body ground | Side television camera assembly RH display ground | Always | 10 kΩ or higher |
| O214-5 (SGND) - Body ground | Side television camera assembly RH ground (shield) | Always | Below 1 Ω |
