RM38T0EC _54 Brake _112607 PARKING BRAKE _0608079 ELECTRIC PARKING BRAKE SYSTEM(for HEV Model) C

PARKING BRAKE  ELECTRIC PARKING BRAKE SYSTEM(for HEV Model)  C060913  Electric Parking Brake Switch Circuit Open


DESCRIPTION

When the electric parking brake switch is pulled, a lock request signal is sent from the skid control ECU (brake actuator assembly) to the parking brake actuator assembly. When the electric parking brake switch is pushed, a release request signal is sent from the skid control ECU (brake actuator assembly) to the parking brake actuator assembly.

DTC No. Detection Item DTC Detection Condition Trouble Area Memory Note
C060913 Electric Parking Brake Switch Circuit Open Open detected in parking brake switch circuit for 1 second or more
·

Wire harness and connector

·

Skid control ECU (brake actuator assembly)


DTC stored An electric parking brake system malfunction is displayed on the multi-information display.

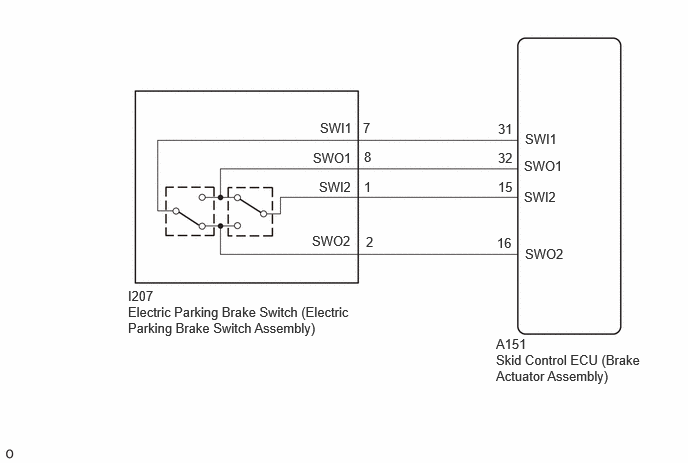

WIRING DIAGRAM

C506856E02
1.333,3.167 3.74,3.75 2.406,0.583 10 false Electric Parking Brake Switch (Electric Parking Brake Switch Assembly) 5.167,3.667 6.729,4.323 1.563,0.656 10 false Skid Control ECU (Brake Actuator Assembly) 5.167,3.5 5.604,3.688 0.438,0.188 10 false A151 1.333,3 1.833,3.25 0.5,0.25 10 false I207 3.333,1.25 3.771,1.438 0.438,0.188 10 false SWI1 3.26,1.563 3.792,1.75 0.531,0.188 10 false SWO1 3.323,1.865 3.76,2.052 0.438,0.188 10 false SWI2 3.25,2.427 3.781,2.615 0.531,0.188 10 false SWO2 5.469,1.365 5.906,1.552 0.438,0.188 10 false SWI1 5.458,1.646 5.938,1.833 0.479,0.188 10 false SWO1 5.458,1.969 5.896,2.156 0.438,0.188 10 false SWI2 5.469,2.563 5.979,2.75 0.51,0.188 10 false SWO2 3.781,1.25 3.969,1.448 0.188,0.198 10 false 7 3.792,1.552 4.052,1.75 0.26,0.198 10 false 8 5.188,1.563 5.375,1.76 0.188,0.198 10 false 32 3.792,1.865 3.979,2.063 0.188,0.198 10 false 1 3.813,2.438 4,2.635 0.188,0.198 10 false 2 5.188,1.26 5.375,1.458 0.188,0.198 10 false 31 5.188,1.865 5.375,2.063 0.188,0.198 10 false 15 5.177,2.448 5.365,2.646 0.188,0.198 10 false 16

CAUTION / NOTICE / HINT

NOTICE:
·

The electric parking brake may still operate up to 4 minutes after the ignition switch is turned off. Before disconnecting connectors or fuses, turn the ignition switch off and wait 4 minutes or more.

·

After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and store system information memorization.

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HEV Model)>UTILITY

·

When replacing the skid control ECU (brake actuator assembly), operate the electric parking brake switch (electric parking brake switch assembly) as the parking brake indicator light (red) blinks when the ignition switch is first turned ON.



PROCEDURE

1.CHECK DTC
a.

Check for DTCs.

Chassis > Brake/EPB > Trouble Codes
50001 435

Result:
Result Proceed to
Only C060913 is output A
C060913 and C060962 are output B



A

2.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - ELECTRIC PARKING BRAKE SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)

B

GO TO DTC C060962

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE SYSTEM (for HEV Model)>C060962


2.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - ELECTRIC PARKING BRAKE SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)
a.

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.



b.

Disconnect the I207 electric parking brake switch (electric parking brake switch assembly) connector.


c.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A151-31 (SWI1) - I207-7 (SWI1) Always Below 1 Ω
A151-32 (SWO1) - I207-8 (SWO1) Always Below 1 Ω
A151-15 (SWI2) - I207-1 (SWI2) Always Below 1 Ω
A151-16 (SWO2) - I207-2 (SWO2) Always Below 1 Ω
A151-31 (SWI1) or I207-7 (SWI1) - Body ground Always 10 kΩ or higher
A151-32 (SWO1) or I207-8 (SWO1) - Body ground Always 10 kΩ or higher
A151-15 (SWI2) or I207-1 (SWI2) - Body ground Always 10 kΩ or higher
A151-16 (SWO2) or I207-2 (SWO2) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HEV Model)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
