RM38T0EC _51 Engine / Hybrid System _115233 STOP AND START _0514517 VACUUM SENSOR ASSEMBLY A

STOP AND START VACUUM SENSOR ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

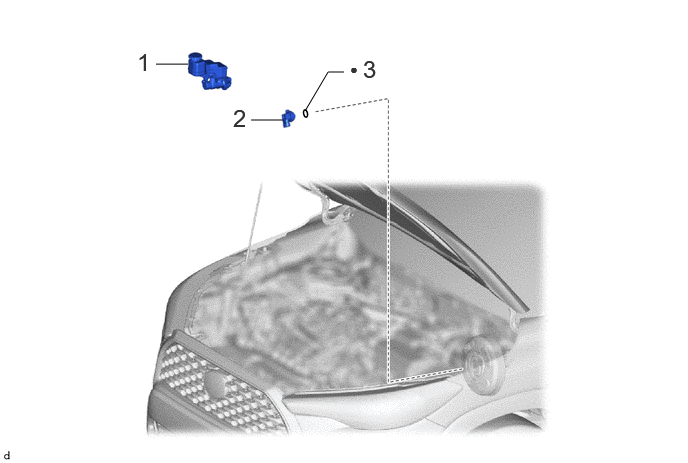

COMPONENTS (REMOVAL)

1.625,0.667 1.958,0.667 false 3.177,1.156 3.417,0.75 3.417,0.75 3.583,0.75 false 2.615,1.25 2.948,1.25 false 1.427,0.5 1.708,0.854 0.281,0.354 18 false 1 2.427,1.083 2.708,1.438 0.281,0.354 18 false 2 3.781,0.573 4.063,0.927 0.281,0.354 18 false 3 3.646,0.635 3.802,0.833 0.156,0.198 10 false ●

Procedure		Part Name Code
1	BRAKE MASTER CYLINDER SUB-ASSEMBLY	47201	-	-	-
2	VACUUM SENSOR ASSEMBLY	89420H	-	-	-
3	VACUUM SENSOR GROMMET	-	-	-	-

●

Non-reusable part

CAUTION / NOTICE / HINT

NOTICE:: After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 47201 1.REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE MASTER CYLINDER (for Gasoline Model)>REMOVAL202307,999999,_54,_113942,_0604481,RM100000002BUH1,

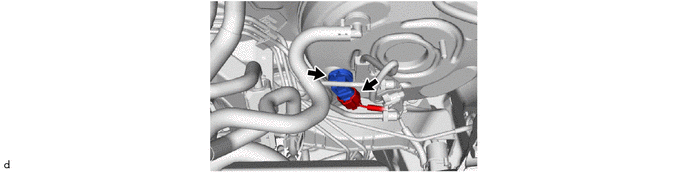

Hide Display 89420H 2.REMOVE VACUUM SENSOR ASSEMBLY

Hide Display 3.REMOVE VACUUM SENSOR GROMMET
