BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS ELECTRONICALLY CONTROLLED BRAKE SYSTEM(for HEV Model) C054016 Brake Pressure Sensor "A" Circuit Voltage Below Threshold C054017 Brake Pressure Sensor "A" Circuit Voltage Above Threshold
DESCRIPTION

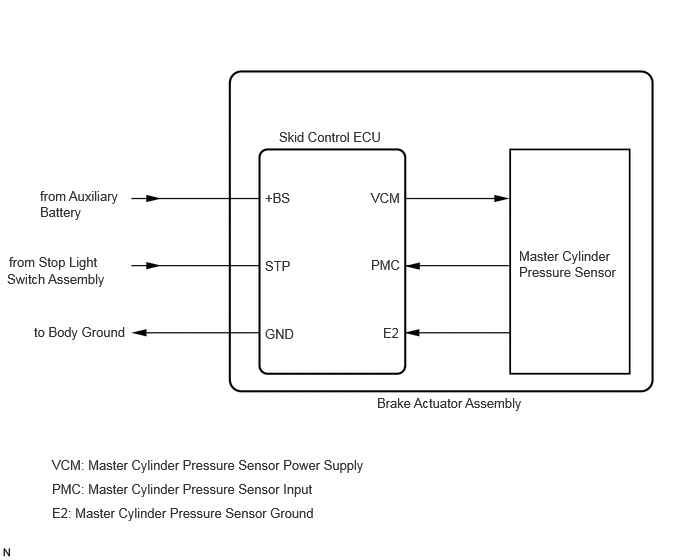

The master cylinder pressure sensor is connected to the skid control ECU inside the brake actuator assembly.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | DTC Output from | Note |
|---|---|---|---|---|---|---|
| C054016 | Brake Pressure Sensor "A" Circuit Voltage Below Threshold | Divergence between relative displacement sensor value of electric brake booster (brake booster with master cylinder assembly) and oil pressure value of skid control ECU (brake actuator assembly) is large. | Skid control ECU (brake actuator assembly) | Comes on | Brake/EPB | ·
SAE Code: C053D (Case 1) ·
Output ECU: Skid control ECU (brake actuator assembly) |
| C054017 | Brake Pressure Sensor "A" Circuit Voltage Above Threshold | Divergence between relative displacement sensor value of electric brake booster (brake booster with master cylinder assembly) and oil pressure value of skid control ECU (brake actuator assembly) is large. | Skid control ECU (brake actuator assembly) | Comes on | Brake/EPB | ·
SAE Code: C053D (Case 2) ·
Output ECU: Skid control ECU (brake actuator assembly) |
CONFIRMATION DRIVING PATTERN
- NOTICE:
-
When performing the normal judgment procedure, make sure that the driver door is closed and is not opened at any time during the procedure.
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON and turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off.
Turn the ignition switch to ON (READY) and turn the GTS on.
Drive the vehicle at a speed of 3 km/h (2 mph) or more for 1 second or more. [*1]
Enter dealer mode or inspection mode, and drive the vehicle at a speed of 10 km/h (6 mph) for 1 second or more. [*2]
- HINT:
-
[*1] to [*2]: Normal judgment procedure.
-
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
Enter the following menus: Chassis / Brake Booster / Utility / All Readiness.
Check the DTC judgment result.
- HINT:
- ·
If the judgment result shows NORMAL, the system is normal.
·If the judgment result shows ABNORMAL, the system has a malfunction.
·If the judgment result shows INCOMPLETE, perform driving pattern again.
PROCEDURE
Clear the DTCs.
- Chassis > Brake/EPB > Clear DTCs
- 50002 435
Turn the ignition switch off.
- Result:
Proceed to NEXT
NEXT
Based on the Freeze Frame Data and interview with the customer, attempt to reproduce the conditions when the malfunction occurred.
Check if the same DTC is output.
- Chassis > Brake/EPB > Trouble Codes
- 50001 435
- Result:
Result Proceed to C054016 and C054017 are not output A C054016 and/or C054017 are output B
A
B
