RM38T0EC _53 Suspension _112967 REAR SUSPENSION _0502998 REAR SHOCK ABSORBER A

REAR SUSPENSION  REAR SHOCK ABSORBER  REMOVAL


CAUTION / NOTICE / HINT

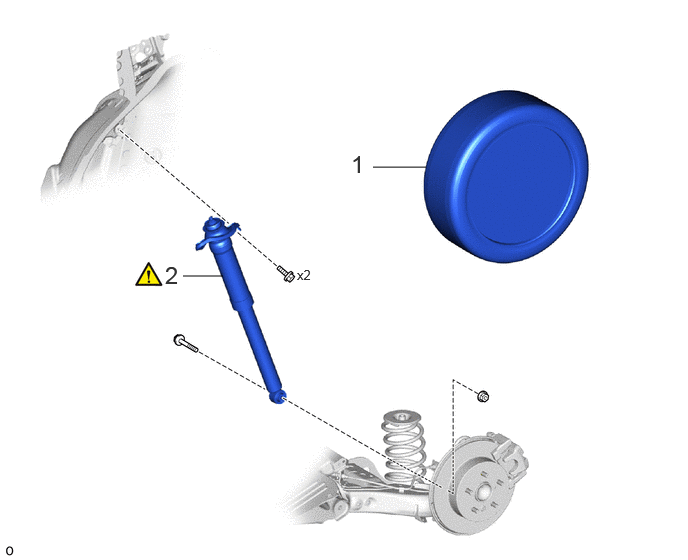

COMPONENTS (REMOVAL)
C438391N01
1.906,2.875 2.323,2.875 false 3.885,1.74 4.438,1.74 false 3.656,1.563 3.938,1.917 0.281,0.354 18 false 1 1.719,2.719 2,3.073 0.281,0.354 18 false 2 3.094,2.781 3.406,2.979 0.313,0.198 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR WHEEL - - - -
2 REAR SHOCK ABSORBER ASSEMBLY 48540 (Click here) - -

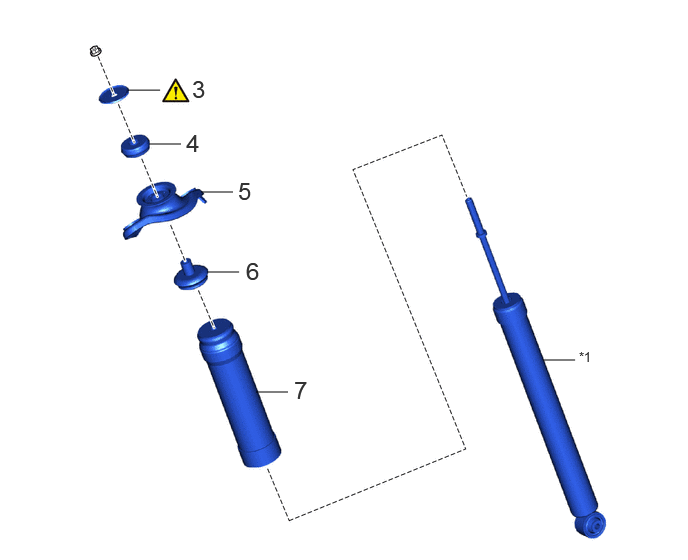

C438392N01
1.333,0.938 1.667,0.938 false 1.552,1.5 1.885,1.5 false 2.094,2 2.427,2 false 2.156,2.833 2.49,2.833 false 2.667,4.083 3,4.083 false 5.656,3.75 5.99,3.75 false 2,0.781 2.281,1.135 0.281,0.354 18 false 3 1.938,1.344 2.219,1.698 0.281,0.354 18 false 4 2.479,1.844 2.76,2.198 0.281,0.354 18 false 5 2.563,2.677 2.844,3.031 0.281,0.354 18 false 6 3.063,3.917 3.344,4.271 0.281,0.354 18 false 7 6.031,3.635 6.375,3.844 0.344,0.208 10 false *1

Procedure Part Name Code
Z101186

Z101188

Z101187

3 REAR NO. 1 SHOCK ABSORBER CUSHION WASHER 48530B (Click here) - -
4 REAR SUSPENSION SUPPORT 48755 - - -
5 REAR SUSPENSION SUPPORT ASSEMBLY 48760B - - -
6 REAR SUSPENSION SUPPORT STOPPER 48752A - - -
7 REAR NO. 1 SPRING BUMPER 48341B - - -

*1 REAR SHOCK ABSORBER ASSEMBLY - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear shock absorber assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: for HEV Model

*2: for Gasoline Model

Rear wheel alignment adjustment Calibration
·

DTCs are stored

·

ABS warning light illuminates

·

Slip indicator light illuminates

·

VSC disabled or malfunctions


(Click here)*1
(Click here)*2
Suspension, tires, etc. Parking assist ECU initialization Panoramic view monitor system (Click here)

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 48540 2.REMOVE REAR SHOCK ABSORBER ASSEMBLY

a.

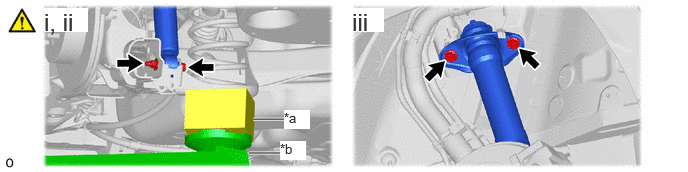

C438393C01
2.635,1.24 2.969,1.24 true 2.594,1.594 2.927,1.594 true 2.958,1.146 3.229,1.344 0.271,0.198 10 true *a 2.917,1.469 3.188,1.667 0.271,0.198 10 true *b 0.458,0.083 0.917,0.333 0.458,0.25 18 true i, ii 3.667,0.083 4,0.333 0.333,0.25 18 true iii
*a Wooden Block *b Jack


i.

Support the spring seat of the rear axle beam assembly using a jack and wooden block.

CAUTION:

Do not jack up the rear axle beam assembly too high as the vehicle may fall.


NOTICE:
·

When jacking up the rear axle beam assembly, be sure to jack it up slowly.

·

Make sure to perform this operation with the vehicle kept as low as possible.

·

Keep supporting the rear axle beam assembly with a jack until the installation of the rear shock absorber assembly is completed.




ii.

Remove the bolt and nut to separate the rear shock absorber assembly while compressing the rear shock absorber assembly.

NOTICE:

Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.



iii.

Remove the 2 bolts and rear shock absorber assembly from the vehicle.



Hide 48530B 3.REMOVE REAR NO. 1 SHOCK ABSORBER CUSHION WASHER

a.

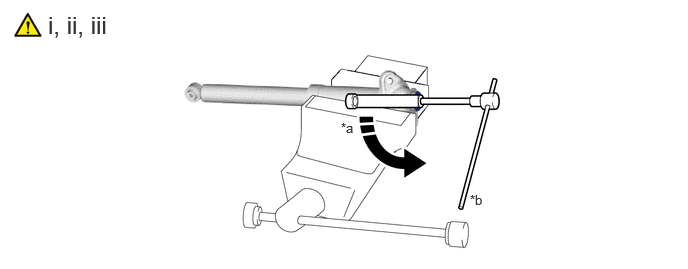

C438394C01
0.5,0.115 1.417,0.406 0.917,0.292 18 false i, ii, iii 4.896,2 5.208,2.198 0.313,0.198 10 false *b 3.552,1.25 3.865,1.448 0.313,0.198 10 false *a
*a Turn *b Hold


i.

Secure the rear shock absorber assembly in a vise using aluminum plates.

NOTICE:

Do not overtighten the vise.



ii.

Using a 6 mm hexagon socket wrench, hold the rear shock absorber rod and remove the rear support to rear shock absorber nut.


iii.

Remove the rear No. 1 shock absorber cushion washer from the rear shock absorber assembly.



Hide 48755 4.REMOVE REAR SUSPENSION SUPPORT

a.
C438395


Hide 48760B 5.REMOVE REAR SUSPENSION SUPPORT ASSEMBLY

a.
C438396


Hide 48752A 6.REMOVE REAR SUSPENSION SUPPORT STOPPER

a.
C438397


Hide 48341B 7.REMOVE REAR NO. 1 SPRING BUMPER

a.
C438398
