THEFT DETERRENT / KEYLESS ENTRY  DIGITAL KEY SYSTEM  B27C487  Front Passenger Side BLE Antenna Missing Message


DESCRIPTION

This DTC is stored when a LIN communication malfunction between the digital key ECU assembly and front door outside handle assembly (for front passenger door) is detected.

DTC No. Detection Item DTC Detection Condition Trouble Area Note
B27C487 Front Passenger Side BLE Antenna Missing Message LIN communication malfunction between the digital key ECU assembly and front door outside handle assembly (for front passenger door)
·

Digital key ECU assembly

·

Front door outside handle assembly (for front passenger door)

·

Wire harness or connector


DTC Output Confirmation Operation:

Any time



Vehicle Condition and Fail-safe Operation when Malfunction Detected
Vehicle Condition when Malfunction Detected Fail-safe Operation when Malfunction Detected
Digital key is inside the front passenger seat digital key detection range

Front passenger door entry function does not operate


-

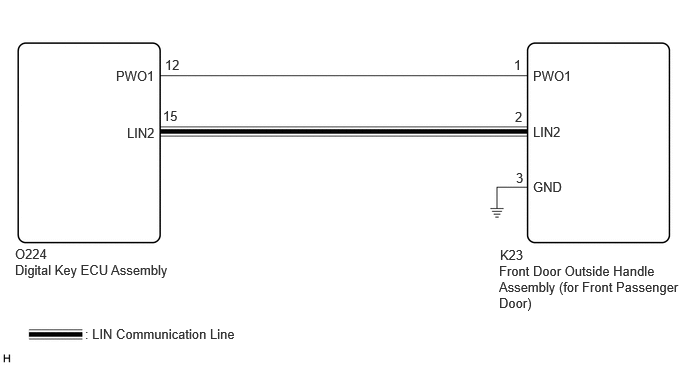

WIRING DIAGRAM

B621853E85
0.156,2.563 0.75,2.729 0.594,0.167 10 false O224 0.156,2.729 2.167,2.917 2.01,0.188 10 false Digital Key ECU Assembly 0.885,3.396 2.823,3.646 1.938,0.25 10 false : LIN Communication Line 1.719,0.594 2.406,0.823 0.688,0.229 10 false 12 5.365,1.135 6.052,1.365 0.688,0.229 10 false 2 5.208,2.573 5.896,2.802 0.688,0.229 10 false K23 5.198,2.74 7.115,3.333 1.917,0.594 10 false Front Door Outside Handle Assembly (for Front Passenger Door) 5.552,0.708 6.24,0.938 0.688,0.229 10 false PWO1 5.552,1.292 6.24,1.521 0.688,0.229 10 false LIN2 5.552,1.865 5.948,2.063 0.396,0.198 10 false GND 5.375,1.771 5.708,1.969 0.333,0.198 10 false 3 5.354,0.594 6.042,0.823 0.688,0.229 10 false 1 1.323,1.302 2.01,1.531 0.688,0.229 10 false LIN2 1.208,0.708 1.896,0.938 0.688,0.229 10 false PWO1 1.698,1.125 2.385,1.354 0.688,0.229 10 false 15

CAUTION / NOTICE / HINT

NOTICE:
·

Before replacing the digital key ECU assembly or front door outside handle assembly (for front passenger door), refer to Service Bulletin.

·

Cancel power saving mode before performing troubleshooting.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>DIGITAL KEY SYSTEM>PRECAUTION



PROCEDURE

1.CHECK CONNECTOR CONNECTION
a.

Check that the connectors are properly connected to the digital key ECU assembly and front door outside handle assembly (for front passenger door).

OK:

Connectors are properly connected.


Result:
Proceed to
OK
NG




OK

2.CHECK HARNESS AND CONNECTOR (DIGITAL KEY ECU ASSEMBLY - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR) - BODY GROUND)

NG

CONNECT CONNECTORS PROPERLY

2.CHECK HARNESS AND CONNECTOR (DIGITAL KEY ECU ASSEMBLY - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR) - BODY GROUND)
a.

Disconnect the O224 digital key ECU assembly connector.


b.

Disconnect the K23 front door outside handle assembly (for front passenger door) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O224-12 (PWO1) - K23-1 (PWO1) Always Below 1 Ω
O224-12 (PWO1) or K23-1 (PWO1) - Other terminals and body ground Always 10 kΩ or higher
O224-15 (LIN2) - K23-2 (LIN2) Always Below 1 Ω
O224-15 (LIN2) or K23-2 (LIN2) - Other terminals and body ground Always 10 kΩ or higher
K23-3 (GND) - Body ground Always Below 1 Ω


Result:
Proceed to
OK
NG



d.

Connect the O224 digital key ECU assembly connector.



OK

3.REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR)
a.

Replace the front door outside handle assembly (for front passenger door) with a new one or used one.

HINT:

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY


Result:
Proceed to
NEXT




NEXT

4.CLEAR DTC
4.CLEAR DTC
a.

Clear the DTCs.

Body Electrical > Entry&Start > Clear DTCs
50002 440
Result:
Proceed to
NEXT




NEXT

5.CHECK DTC
5.CHECK DTC
a.

Check for DTCs.

Body Electrical > Entry&Start > Trouble Codes
50001 440
Result:
Result Proceed to
B27C487 is not output A
B27C487 is output B




A

END (FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR) WAS DEFECTIVE)

B

REPLACE DIGITAL KEY ECU ASSEMBLY
