RM38T0EC _58 Vehicle Interior _115230 THEFT DETERRENT / KEYLESS ENTRY _0606513 DIGITAL KEY SYSTEM C

THEFT DETERRENT / KEYLESS ENTRY  DIGITAL KEY SYSTEM  B27C587  Outside Luggage Compartment (Back Door) BLE Antenna Missing Message


DESCRIPTION

This DTC is stored when a LIN communication malfunction between the digital key ECU assembly and BLE luggage digital key receiver assembly is detected.

DTC No. Detection Item DTC Detection Condition Trouble Area Note
B27C587 Outside Luggage Compartment (Back Door) BLE Antenna Missing Message LIN communication malfunction between the digital key ECU assembly and BLE luggage digital key receiver assembly.
·

Digital key ECU assembly

·

BLE luggage digital key receiver assembly

·

Wire harness or connector


DTC Output Confirmation Operation:

Any time



Vehicle Condition and Fail-safe Operation when Malfunction Detected
Vehicle Condition when Malfunction Detected Fail-safe Operation when Malfunction Detected
Digital key is inside the back door digital key detection range

Back door entry function does not operate


-

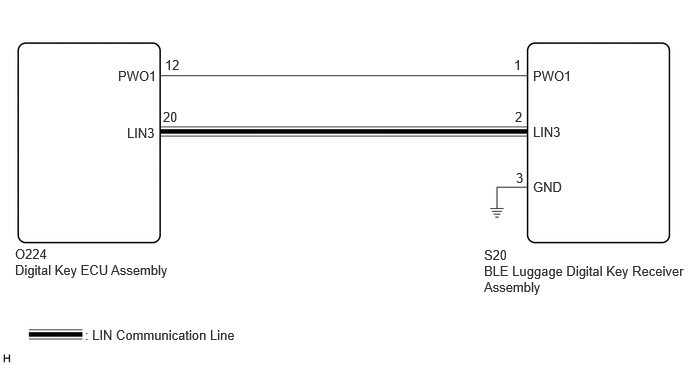

WIRING DIAGRAM

B621853E86
0.156,2.563 0.75,2.729 0.594,0.167 10 false O224 0.156,2.729 2.167,2.917 2.01,0.188 10 false Digital Key ECU Assembly 0.885,3.406 2.823,3.656 1.938,0.25 10 false : LIN Communication Line 1.719,0.594 2.406,0.823 0.688,0.229 10 false 12 5.365,1.135 6.052,1.365 0.688,0.229 10 false 2 5.042,2.573 5.729,2.802 0.688,0.229 10 false S20 5.042,2.74 7.156,3.281 2.115,0.542 10 false BLE Luggage Digital Key Receiver Assembly 5.552,0.708 6.24,0.938 0.688,0.229 10 false PWO1 5.552,1.292 6.24,1.521 0.688,0.229 10 false LIN3 5.552,1.865 5.948,2.063 0.396,0.198 10 false GND 5.375,1.771 5.708,1.969 0.333,0.198 10 false 3 5.354,0.594 6.042,0.823 0.688,0.229 10 false 1 1.323,1.302 2.01,1.531 0.688,0.229 10 false LIN3 1.229,0.708 1.917,0.938 0.688,0.229 10 false PWO1 1.698,1.135 2.385,1.365 0.688,0.229 10 false 20

CAUTION / NOTICE / HINT

NOTICE:
·

Before replacing the digital key ECU assembly or BLE luggage digital key receiver assembly, refer to Service Bulletin.

·

Cancel power saving mode before performing troubleshooting.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>DIGITAL KEY SYSTEM>PRECAUTION



PROCEDURE

1.CHECK CONNECTOR CONNECTION
a.

Check that the connectors are properly connected to the digital key ECU assembly and BLE luggage digital key receiver assembly.

OK:

Connectors are properly connected.


Result:
Proceed to
OK
NG




OK

2.CHECK HARNESS AND CONNECTOR (DIGITAL KEY ECU ASSEMBLY - BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY - BODY GROUND)

NG

CONNECT CONNECTORS PROPERLY

2.CHECK HARNESS AND CONNECTOR (DIGITAL KEY ECU ASSEMBLY - BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY - BODY GROUND)
a.

Disconnect the O224 digital key ECU assembly connector.


b.

Disconnect the S20 BLE luggage digital key receiver assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O224-12 (PWO1) - S20-1 (PWO1) Always Below 1 Ω
O224-12 (PWO1) or S20-1 (PWO1) - Other terminals and body ground Always 10 kΩ or higher
O224-20 (LIN3) - S20-2 (LIN3) Always Below 1 Ω
O224-20 (LIN3) or S20-2 (LIN3) - Other terminals and body ground Always 10 kΩ or higher
S20-3 (GND) - Body ground Always Below 1 Ω


Result:
Proceed to
OK
NG



d.

Connect the O224 digital key ECU assembly connector.



OK

3.REPLACE BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.REPLACE BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY
a.

Replace the BLE luggage digital key receiver assembly with a new one or used one.

HINT:

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>DIGITAL KEY RECEIVER (for Outside Luggage Compartment)>REMOVAL


Result:
Proceed to
NEXT




NEXT

4.CLEAR DTC
4.CLEAR DTC
a.

Clear the DTCs.

Body Electrical > Entry&Start > Clear DTCs
50002 440
Result:
Proceed to
NEXT




NEXT

5.CHECK DTC
5.CHECK DTC
a.

Check for DTCs.

Body Electrical > Entry&Start > Trouble Codes
50001 440
Result:
Result Proceed to
B27C587 is not output A
B27C587 is output B




A

END (BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY WAS DEFECTIVE)

B

REPLACE DIGITAL KEY ECU ASSEMBLY
