RM38T0EC _58 Vehicle Interior _115230 THEFT DETERRENT / KEYLESS ENTRY _0605274 DIGITAL KEY RECEIVER(for Outside Luggage Compartment) A

THEFT DETERRENT / KEYLESS ENTRY DIGITAL KEY RECEIVER(for Outside Luggage Compartment) REMOVAL

CAUTION / NOTICE / HINT

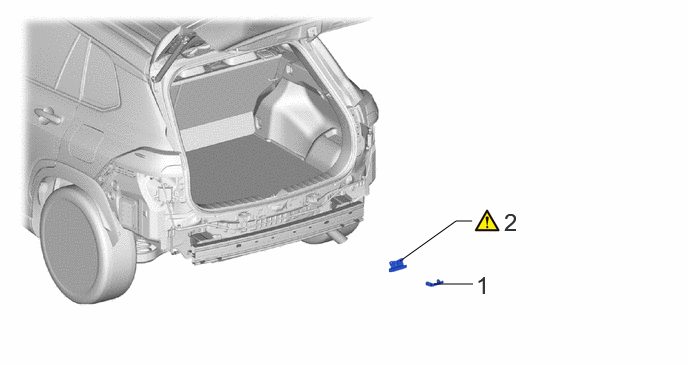

COMPONENTS (REMOVAL)

4.167,2.719 4.75,2.302 4.75,2.302 4.917,2.302 false 4.521,2.958 4.927,2.958 false 5.25,2.167 5.531,2.521 0.281,0.354 18 false 2 4.958,2.823 5.24,3.177 0.281,0.354 18 false 1

Procedure		Part Name Code
1	ELECTRICAL KEY ANTENNA	89997	-	-	-
2	BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY	890F0	(202307,999999,_58,_115230,_0605274,RM100000002BYFB_01_0003,)	-	-

PROCEDURE

Hide Display 89997 1.REMOVE ELECTRICAL KEY ANTENNA

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Outside Luggage Compartment)>REMOVAL202307,999999,_58,_115230,_0510817,RM100000002CW3U,

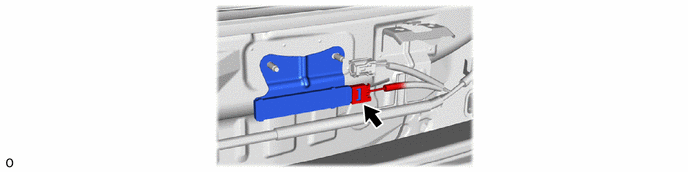

Hide Display 890F0 2.REMOVE BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY

NOTICE:: Be careful when removing the ble luggage digital key receiver assembly. If the ble luggage digital key receiver assembly is dropped, replace it with a new one.
