THEFT DETERRENT / KEYLESS ENTRY SMART ENTRY AND START SYSTEM(for Start Function, HEV Model) OPERATION CHECK
CHECK CUSTOMIZE PARAMETERS
The operation check below is based on the non-customized initial condition of the vehicle. (However, make sure that "ACC Customize" is set to "ON" using the multi-display.)
CHECK PUSH-BUTTON START FUNCTION
Check the push-button start function:
Get into the vehicle while carrying the electrical key transmitter sub-assembly with the ignition switch off. With the shift lever in P, check that the key indicator display is displayed when the brake pedal is depressed. Check that the hybrid control system starts when the power switch is pressed after the key indicator display is displayed on the multi-information display.
While carrying the electrical key transmitter sub-assembly, check that the power source mode changes in the following order when the power switch is pressed with the brake pedal released: off → ACC* → ON → off.
*: When "ACC Customize" is set to "ON" using the multi-display
- HINT:
-
If the power switch is pressed with the ignition switch ON and the shift lever not in P, the power source mode will not change to off.

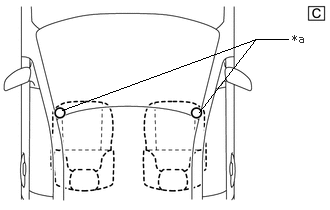

| *a | Electrical Key Transmitter Sub-assembly Inspection Point |
The illustrations shown are examples only.
Check the push-button start function operation range for the front side. Place the electrical key transmitter sub-assembly at either inspection point so that it is facing the direction shown in the illustration, and then check that the hybrid control system can be started.
- NOTICE:
-
Even if the electrical key transmitter sub-assembly is in a vehicle interior detection area, it may not be properly detected if it is on the instrument panel, in the glove box or on the floor.
- HINT:
- ·
Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the No. 1 indoor electrical key antenna assembly (front floor).
·Perform this inspection for both inspection points.

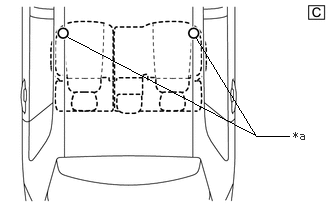

| *a | Electrical Key Transmitter Sub-assembly Inspection Point |
The illustrations shown are examples only.
No. 3 indoor electrical key antenna assembly (inside luggage compartment):
Check the push-button start function operation range for the rear side. Place the electrical key transmitter sub-assembly at either inspection point so that it is facing the direction shown in the illustration, and then check that the hybrid control system can be started.
- NOTICE:
-
Even if the electrical key transmitter sub-assembly is in a vehicle interior detection area, it may not be properly detected if it is on the instrument panel, in the glove box or on the floor.
- HINT:
- ·
Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the center of the No. 3 indoor electrical key antenna assembly (inside luggage compartment).
·Perform this inspection for both inspection points.
CHECK POWER SOURCE MODE CHANGING FUNCTION
- NOTICE:
- ·
When "ACC customize" is set to "OFF" using the multi-display, ACC supply power can be disabled.
·When "ACC Customize" is set to "OFF" using the multi-display, make sure to return the setting to its original state after completing the inspection.
Check the power switch. (ACC customize "ON")
Check that the power source mode changes according to the chart below.
| Shift Position | Brake Pedal | Power Source Mode when Power Switch Pressed |
|---|---|---|
| P | Released | Off → ACC → ON → off |
| P | Released | ON (READY) → off |
| P | Depressed | Off → ON (READY) |
| P | Depressed | ACC → ON (READY) |
| P | Depressed | ON → ON (READY) |
| P | Depressed | ON (READY) → off |
| Not P | Released | ON |
| Not P | Released | ON |
| Not P | Depressed | ON |
| Not P | Depressed | ON |
Check the power switch. (ACC customize "OFF")
Check that the power source mode changes according to the chart below.
| Shift Position | Brake Pedal | Power Source Mode when Power Switch Pressed |
|---|---|---|
| P | Released | Off → ON → off |
| P | Released | ON (READY) → off |
| P | Depressed | Off → ON (READY) |
| P | Depressed | ON → ON (READY) |
| P | Depressed | ON (READY) → off |
| Not P | Released | ON |
| Not P | Released | ON |
| Not P | Depressed | ON |
| Not P | Depressed | ON |
CHECK TRANSMITTER BATTERY SAVING MODE FUNCTION
Check the transmitter battery saving mode function:
Press the unlock switch of the electrical key transmitter sub-assembly twice while pressing the lock switch and check that the electrical key transmitter sub-assembly LED blinks 4 times and enters transmitter battery saving mode.
Check that the smart entry and start system does not operate while in transmitter battery saving mode.
- HINT:
-
To cancel transmitter battery saving mode, press a switch of the electrical key transmitter sub-assembly.
CHECK +BA POWER SOURCE MODE CHANGING FUNCTION
Check the +BA can be switched to ON.
Lock doors via entry lock function or wireless function with all of the doors close.
Wait 3 minutes, unlock the doors via entry lock function or wireless function.
Open and Close driver door.
Check that starts multi-information display in combination meter assembly.
Check that can operate the steering pad switch.
Check the +BA can be switched to OFF.
Turn the ignition switch off.
Open and Close driver door.
Wait 3 minutes, check that is displayed +BA power source mode OFF message on the multi-display in the combination meter assembly.
CHECK ENTRY CANCEL FUNCTION
Disable the smart entry and start system and check that all functions of the smart entry and start system no longer operate.
- HINT:
-
When the smart entry and start system is disabled, it is possible to lock and unlock the doors with the wireless function, and the hybrid control system can be started by holding the electrical key transmitter sub-assembly near the power switch.
CHECK KEY DIAGNOSTIC MODE
