Engine / Hybrid System
_144998
M20F-FXS, M20G-FXS LUBRICATION
_0606151
OIL PUMP
A
M20F-FXS, M20G-FXS LUBRICATION OIL PUMP REMOVAL
CAUTION / NOTICE / HINT

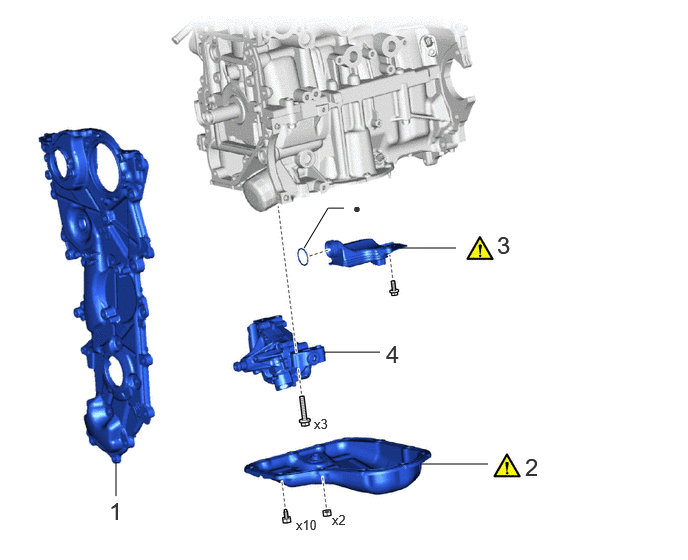

COMPONENTS (REMOVAL)
3.167,2.583 3.417,2.167
3.417,2.167 3.583,2.167
false
4.75,2.583 4.167,2.583
false
5.083,4.833 4.375,4.833
false
3.958,3.667 3.375,3.667
false
1.208,5.167 1.208,4.813
false
3.677,2.083 3.833,2.281
0.156,0.198
10
false
●
3.458,5.333 3.771,5.531
0.313,0.198
10
false
x2
3.083,5.385 3.5,5.583
0.417,0.198
10
false
x10
3.271,4.333 3.583,4.531
0.313,0.198
10
false
x3
5.177,2.406 5.458,2.76
0.281,0.354
18
false
3
5.469,4.719 5.75,5.073
0.281,0.354
18
false
2
4.021,3.542 4.302,3.896
0.281,0.354
18
false
4
1.135,5.177 1.417,5.531
0.281,0.354
18
false
1
| Procedure | Part Name Code |
|
|
|
|
| 1 | TIMING CHAIN COVER ASSEMBLY | 11310 | - | - | - |
| 2 | OIL PAN SUB-ASSEMBLY | 12101 | ( 202307,999999,_51,_144998,_0606151,RM100000002C151_03_0083,)
|
- | - |
| 3 | OIL STRAINER SUB-ASSEMBLY | 15104 | (202307,999999,_51,_144998,_0606151,RM100000002C151_03_0084,)
|
- | - |
| 4 | OIL PUMP ASSEMBLY | 15100 | - | - | - |
| ● | Non-reusable part | - | - |
CAUTION / NOTICE / HINT
- NOTICE:
- ·
After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) battery terminal.
·This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
PROCEDURE
11310
1.REMOVE TIMING CHAIN COVER ASSEMBLY
12101
2.REMOVE OIL PAN SUB-ASSEMBLY
15104
3.REMOVE OIL STRAINER SUB-ASSEMBLY
15100

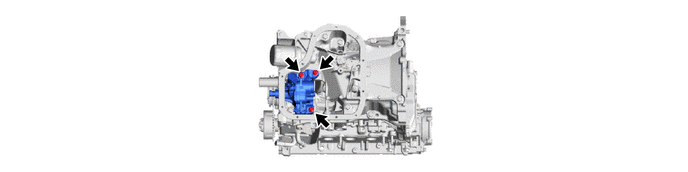

4.REMOVE OIL PUMP ASSEMBLY
a.
