NETWORKING  CAN COMMUNICATION SYSTEM(for HEV Model)  Radio Receiver Assembly Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Radio Receiver Assembly Communication Stop Mode Communication stop for "Display and Navigation (AVN)" is indicated on the "Communication Bus Check" screen of the GTS.
Click here(Click here)
·

Radio and display receiver assembly branch line or connector

·

Power source circuit of radio and display receiver assembly

·

Radio and display receiver assembly ground circuit

·

Radio and display receiver assembly



WIRING DIAGRAM

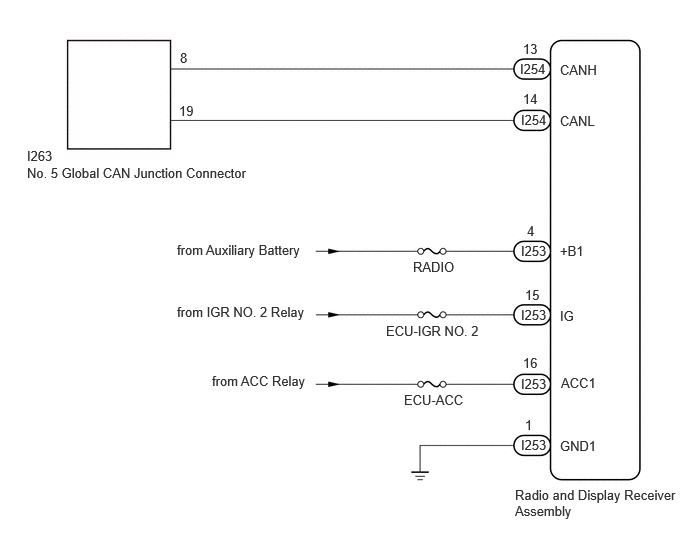

w/ Navigation System


C447009E16
0.281,1.719 2.844,1.969 2.563,0.25 10 false No. 5 Global CAN Junction Connector 0.281,1.542 0.75,1.76 0.469,0.219 10 false I263 5.365,5.073 7.063,5.563 1.698,0.49 10 false Radio and Display Receiver Assembly 5.417,0.635 5.885,0.854 0.469,0.219 10 false I254 1.875,0.521 2.344,0.74 0.469,0.219 10 false 8 1.865,1.073 2.333,1.292 0.469,0.219 10 false 19 5.448,0.427 5.917,0.646 0.469,0.219 10 false 13 5.448,0.948 5.917,1.167 0.469,0.219 10 false 14 5.49,2.323 5.958,2.542 0.469,0.219 10 false 4 5.448,3.698 5.917,3.917 0.469,0.219 10 false 16 5.469,2.99 5.938,3.208 0.469,0.219 10 false 15 5.469,4.344 5.938,4.563 0.469,0.219 10 false 1 5.833,0.646 6.302,0.865 0.469,0.219 10 false CANH 5.833,1.177 6.302,1.396 0.469,0.219 10 false CANL 5.833,2.531 6.302,2.75 0.469,0.219 10 false +B1 5.844,3.906 6.313,4.125 0.469,0.219 10 false ACC1 5.833,3.208 6.302,3.427 0.469,0.219 10 false IG 5.833,4.563 6.302,4.781 0.469,0.219 10 false GND1 4.302,2.698 5.292,2.969 0.99,0.271 10 false RADIO 4.021,3.365 5.125,3.615 1.104,0.25 10 false ECU-IGR NO. 2 4.208,4.083 5.021,4.292 0.813,0.208 10 false ECU-ACC 1.844,2.521 3.323,2.813 1.479,0.292 10 false from Auxiliary Battery 1.844,3.167 3.563,3.375 1.719,0.208 10 false from IGR NO. 2 Relay 2.208,3.885 4.063,4.167 1.854,0.281 10 false from ACC Relay 5.427,1.167 5.896,1.385 0.469,0.219 10 false I254 5.427,2.531 5.896,2.75 0.469,0.219 10 false I253 5.427,3.198 5.896,3.417 0.469,0.219 10 false I253 5.427,3.917 5.896,4.135 0.469,0.219 10 false I253 5.427,4.552 5.896,4.771 0.469,0.219 10 false I253

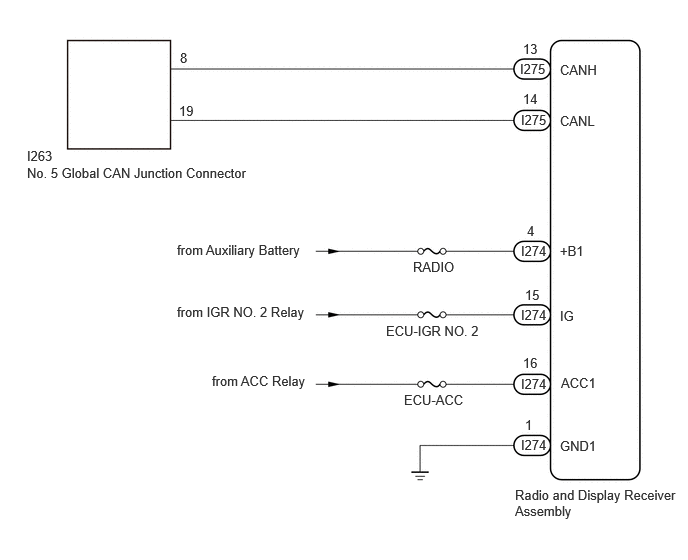

w/ Audio and Visual System


C447009E17
0.281,1.719 2.844,1.969 2.563,0.25 10 false No. 5 Global CAN Junction Connector 0.281,1.542 0.75,1.76 0.469,0.219 10 false I263 5.365,5.073 7.063,5.563 1.698,0.49 10 false Radio and Display Receiver Assembly 5.417,0.635 5.885,0.854 0.469,0.219 10 false I275 1.875,0.521 2.344,0.74 0.469,0.219 10 false 8 1.865,1.073 2.333,1.292 0.469,0.219 10 false 19 5.448,0.427 5.917,0.646 0.469,0.219 10 false 13 5.448,0.948 5.917,1.167 0.469,0.219 10 false 14 5.49,2.323 5.958,2.542 0.469,0.219 10 false 4 5.448,3.698 5.917,3.917 0.469,0.219 10 false 16 5.469,2.99 5.938,3.208 0.469,0.219 10 false 15 5.469,4.344 5.938,4.563 0.469,0.219 10 false 1 5.833,0.646 6.302,0.865 0.469,0.219 10 false CANH 5.833,1.177 6.302,1.396 0.469,0.219 10 false CANL 5.833,2.531 6.302,2.75 0.469,0.219 10 false +B1 5.844,3.906 6.313,4.125 0.469,0.219 10 false ACC1 5.833,3.208 6.302,3.427 0.469,0.219 10 false IG 5.833,4.563 6.302,4.781 0.469,0.219 10 false GND1 4.302,2.698 5.292,2.969 0.99,0.271 10 false RADIO 4.021,3.365 5.125,3.615 1.104,0.25 10 false ECU-IGR NO. 2 4.208,4.083 5.021,4.292 0.813,0.208 10 false ECU-ACC 1.844,2.521 3.323,2.813 1.479,0.292 10 false from Auxiliary Battery 1.844,3.167 3.563,3.375 1.719,0.208 10 false from IGR NO. 2 Relay 2.208,3.885 4.063,4.167 1.854,0.281 10 false from ACC Relay 5.427,1.167 5.896,1.385 0.469,0.219 10 false I275 5.427,2.531 5.896,2.75 0.469,0.219 10 false I274 5.427,3.198 5.896,3.417 0.469,0.219 10 false I274 5.427,3.917 5.896,4.135 0.469,0.219 10 false I274 5.427,4.552 5.896,4.771 0.469,0.219 10 false I274


CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minute or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>DIAGNOSIS SYSTEM

·

Inspect the fuses for circuits related to this system before performing the following procedure.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
w/ Navigation System A
w/ Audio and Visual System B



A

2.CHECK FOR OPEN IN CAN BUS LINES (RADIO AND DISPLAY RECEIVER ASSEMBLY BRANCH LINE)

B

4.CHECK FOR OPEN IN CAN BUS LINES (RADIO AND DISPLAY RECEIVER ASSEMBLY BRANCH LINE)
2.CHECK FOR OPEN IN CAN BUS LINES (RADIO AND DISPLAY RECEIVER ASSEMBLY BRANCH LINE)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the radio and display receiver assembly connector.


c.

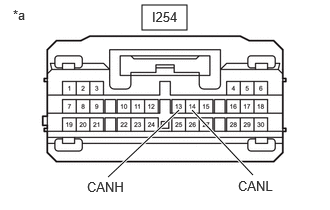

C434862C25
1.479,0.052 1.948,0.313 0.469,0.26 1.125,1.844 1.865,1.146 true 2.635,1.823 2,1.146 true 0.135,0.073 0.469,0.24 0.333,0.167 10 false *a 1.583,0.094 2.031,0.281 0.448,0.188 10 false I254 2.479,1.854 2.906,2.021 0.427,0.167 10 false CANL 0.906,1.865 1.323,2.031 0.417,0.167 10 false CANH
*a Front view of wire harness connector
(to Radio and Display Receiver Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I254-13 (CANH) - I254-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY)

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

Disconnect the radio and display receiver assembly connector.


b.

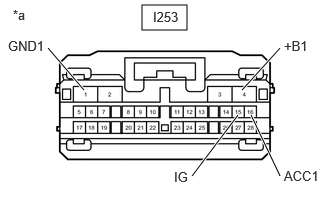

C457358C18
1.479,0.052 1.948,0.313 0.469,0.26 2,1.833 2.479,1.198 true 2.917,1.833 2.615,1.198 true 0.875,0.938 0.5,0.5 true 2.521,0.938 2.917,0.5 true 0.135,0.073 0.469,0.24 0.333,0.167 10 false *a 1.594,0.094 1.948,0.26 0.354,0.167 10 false I253 2.958,1.75 3.385,1.917 0.427,0.167 10 false ACC1 0.083,0.396 0.5,0.563 0.417,0.167 10 false GND1 2.958,0.396 3.292,0.563 0.333,0.167 10 false +B1 1.813,1.76 2.063,1.927 0.25,0.167 10 false IG
*a Front view of wire harness connector
(to Radio and Display Receiver Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I253-1 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω



c.

Reconnect the cable to the negative (-) auxiliary battery terminal.


d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
I253-15 (IG) - Body ground Ignition switch ON 11 to 14 V
I253-4 (+B1) - Body ground Ignition switch off 11 to 14 V
I253-16 (ACC1) - Body ground Ignition switch ACC 11 to 14 V



Result:
Proceed to
OK
NG



OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

4.CHECK FOR OPEN IN CAN BUS LINES (RADIO AND DISPLAY RECEIVER ASSEMBLY BRANCH LINE)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the radio and display receiver assembly connector.


c.

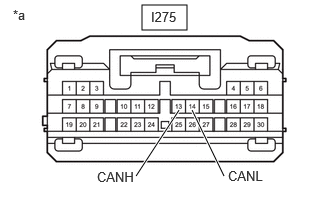

C434862C26
1.479,0.052 1.948,0.313 0.469,0.26 1.417,1.833 1.865,1.146 true 2.333,1.833 2,1.146 true 0.135,0.073 0.469,0.24 0.333,0.167 10 false *a 1.573,0.094 1.927,0.26 0.354,0.167 10 false I275 2.375,1.75 2.802,1.917 0.427,0.167 10 false CANL 1.01,1.76 1.427,1.927 0.417,0.167 10 false CANH
*a Front view of wire harness connector
(to Radio and Display Receiver Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I275-13 (CANH) - I275-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY)

5.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

Disconnect the radio and display receiver assembly connector.


b.
C457358C19
1.479,0.052 1.948,0.313 0.469,0.26 2,1.833 2.479,1.198 true 2.917,1.833 2.615,1.198 true 0.875,0.938 0.5,0.5 true 2.521,0.938 2.917,0.5 true 0.135,0.073 0.469,0.24 0.333,0.167 10 false *a 1.594,0.094 1.948,0.26 0.354,0.167 10 false I274 2.958,1.75 3.385,1.917 0.427,0.167 10 false ACC1 0.083,0.396 0.5,0.563 0.417,0.167 10 false GND1 2.958,0.396 3.292,0.563 0.333,0.167 10 false +B1 1.813,1.76 2.063,1.927 0.25,0.167 10 false IG
*a Front view of wire harness connector
(to Radio and Display Receiver Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I274-1 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω



c.

Reconnect the cable to the negative (-) auxiliary battery terminal.


d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
I274-15 (IG) - Body ground Ignition switch ON 11 to 14 V
I274-4 (+B1) - Body ground Ignition switch off 11 to 14 V
I274-16 (ACC1) - Body ground Ignition switch ACC 11 to 14 V



Result:
Proceed to
OK
NG



OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
