NETWORKING  CAN COMMUNICATION SYSTEM(for HEV Model)  Combination Meter ECU Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Combination Meter ECU Communication Stop Mode Communication stop for "Combination Meter" is indicated on the "Communication Bus Check" screen of the GTS.
Click here(Click here)
·

Combination meter assembly main line or connector

·

Power source circuit of combination meter assembly

·

Combination meter assembly ground circuit

·

Combination meter assembly

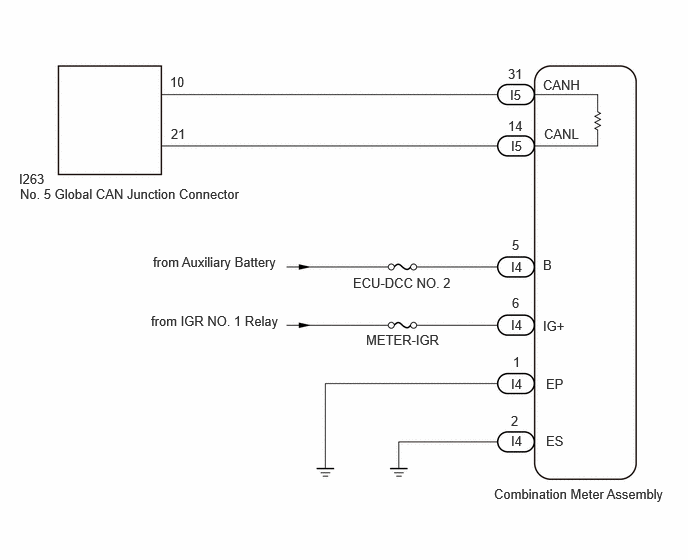

WIRING DIAGRAM

C484985E01
0.198,1.781 0.656,1.979 0.458,0.198 10 false I263 0.208,1.938 3.156,2.208 2.948,0.271 10 false No. 5 Global CAN Junction Connector 1.771,0.771 2.229,0.969 0.458,0.198 10 false 10 1.781,1.313 2.24,1.51 0.458,0.198 10 false 21 5.292,0.688 5.75,0.885 0.458,0.198 10 false 31 5.292,1.229 5.75,1.427 0.458,0.198 10 false 14 5.333,3.073 5.792,3.271 0.458,0.198 10 false 6 5.333,2.469 5.792,2.667 0.458,0.198 10 false 5 5.323,4.302 5.781,4.5 0.458,0.198 10 false 2 5.344,3.688 5.802,3.885 0.458,0.198 10 false 1 5.656,0.802 6.115,1 0.458,0.198 10 false CANH 5.667,1.313 6.125,1.51 0.458,0.198 10 false CANL 5.656,3.313 6.115,3.51 0.458,0.198 10 false IG+ 5.656,2.677 6.115,2.875 0.458,0.198 10 false B 5.688,4.51 6.146,4.708 0.458,0.198 10 false ES 5.688,3.917 6.146,4.115 0.458,0.198 10 false EP 3.677,2.865 4.865,3.094 1.188,0.229 10 false ECU-DCC NO. 2 1.594,2.646 3.167,3.021 1.573,0.375 10 false from Auxiliary Battery 1.573,3.26 3.323,3.688 1.75,0.427 10 false from IGR NO. 1 Relay 3.813,3.458 4.802,3.688 0.99,0.229 10 false METER-IGR 5.313,0.906 5.771,1.104 0.458,0.198 10 false I5 5.146,5.063 7.031,5.354 1.885,0.292 10 false Combination Meter Assembly 5.323,1.438 5.781,1.635 0.458,0.198 10 false I5 5.323,2.698 5.781,2.896 0.458,0.198 10 false I4 5.323,3.302 5.781,3.5 0.458,0.198 10 false I4 5.323,3.917 5.781,4.115 0.458,0.198 10 false I4 5.323,4.51 5.781,4.708 0.458,0.198 10 false I4

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minute or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>DIAGNOSIS SYSTEM

·

Inspect the fuses for circuits related to this system before performing the following procedure.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS LINES (COMBINATION METER ASSEMBLY MAIN LINE)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the combination meter assembly connector.


c.
C464763C35
1.479,0.188 1.917,0.458 0.438,0.271 1.396,1.917 1.542,1.25 true 2.115,1.917 1.833,1.448 true 0.167,0.146 0.479,0.344 0.313,0.198 10 false *a 1.656,0.25 2.063,0.5 0.406,0.25 10 false I5 1.115,1.948 1.635,2.146 0.521,0.198 10 false CANL 2.115,1.938 2.635,2.135 0.521,0.198 10 false CANH

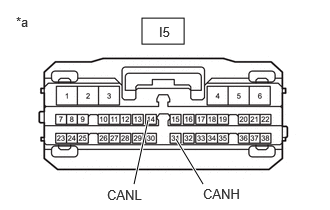

*a Front view of wire harness connector
(to Combination Meter Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I5-31 (CANH) - I5-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (COMBINATION METER ASSEMBLY)

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.
C473235C06
1.479,0.167 1.979,0.417 0.5,0.25 0.25,1.854 0.656,0.979 true 2,1.885 2.51,0.99 true 3.115,1.833 2.719,0.99 true 1.333,1.854 0.938,1 true 0.115,0.083 0.427,0.24 0.313,0.156 10 false *a 1.677,0.208 1.99,0.365 0.313,0.156 10 false I4 1.271,1.917 1.865,2.125 0.594,0.208 10 false ES 1.927,1.927 2.083,2.167 0.156,0.24 10 false B 3.031,1.906 3.302,2.104 0.271,0.198 10 false IG+ 0.135,1.917 0.729,2.125 0.594,0.208 10 false EP

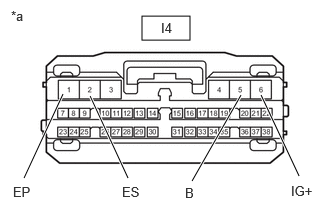

*a Front view of wire harness connector
(to Combination Meter Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I4-1 (EP) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
I4-2 (ES) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) auxiliary battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
I4-5 (B) - Body ground Ignition switch off 11 to 14 V
I4-6 (IG+) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
