RM38T0EC _57 Power Source / Network _104409 NETWORKING _0606038 CAN COMMUNICATION SYSTEM(for HEV Model) C

NETWORKING  CAN COMMUNICATION SYSTEM(for HEV Model)  U011000  Lost Communication with Drive Motor Control Module "A"  U111A87  Lost Communication with ECM/PCM "A" (ch2) Missing Message  U115087  Lost Communication with Hybrid Powertrain Control Module (ch2) Missing Message  U115487  Lost Communication with Drive Motor Control Module "A" (ch2) Missing Message  U115887  Lost Communication with Electronic Brake Booster Control Module "A" (ch2) Missing Message  U117008  Lost Communication with Brake System Control Module (ch2) Bus Signal / Message Failure  U117087  Lost Communication with Brake System Control Module (ch2) Missing Message


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Note
U011000 Lost Communication with Drive Motor Control Module "A" Communication stops between the electric brake booster (brake booster with master cylinder assembly) and the inverter with converter assembly.
·

CAN main/branch bus lines or connector

·

Electric brake booster (brake booster with master cylinder assembly)

·

Inverter with converter assembly

·

No. 1 CAN junction connector

·

No. 2 CAN junction connector


DTC Output from
·

Electric brake booster (brake booster with master cylinder assembly)


U111A87 Lost Communication with ECM/PCM "A" (ch2) Missing Message Communication stops between the hybrid vehicle control ECU and the ECM.
·

CAN main/branch bus lines or connector

·

Hybrid vehicle control ECU

·

ECM

·

No. 1 CAN junction connector

·

No. 2 CAN junction connector


DTC Output from
·

Hybrid vehicle control ECU


U115087 Lost Communication with Hybrid Powertrain Control Module (ch2) Missing Message Communication stops between the ECM or skid control ECU (brake actuator assembly) and the hybrid vehicle control ECU.
·

CAN main/branch bus lines or connector

·

ECM

·

Skid control ECU (brake actuator assembly)

·

Hybrid vehicle control ECU

·

No. 1 CAN junction connector

·

No. 2 CAN junction connector


DTC Output from
·

ECM

·

Skid control ECU (brake actuator assembly)


U115487 Lost Communication with Drive Motor Control Module "A" (ch2) Missing Message Communication stops between the ECM or hybrid vehicle control ECU and the inverter with converter assembly.
·

CAN main/branch bus lines or connector

·

ECM

·

Hybrid vehicle control ECU

·

Inverter with converter assembly

·

No. 1 CAN junction connector

·

No. 2 CAN junction connector


DTC Output from
·

ECM

·

Hybrid vehicle control ECU


U115887 Lost Communication with Electronic Brake Booster Control Module "A" (ch2) Missing Message Communication stops between the electric brake booster (brake booster with master cylinder assembly) and the skid control ECU (brake actuator assembly).
·

CAN main/branch bus lines or connector

·

Electric brake booster (brake booster with master cylinder assembly)

·

Skid control ECU (brake actuator assembly)

·

No. 1 CAN junction connector

·

No. 2 CAN junction connector


DTC Output from
·

Electric brake booster (brake booster with master cylinder assembly)


U117008 Lost Communication with Brake System Control Module (ch2) Bus Signal / Message Failure Communication stops between the inverter with converter assembly and the skid control ECU (brake actuator assembly).
·

CAN main/branch bus lines or connector

·

Inverter with converter assembly

·

Skid control ECU (brake actuator assembly)

·

No. 1 CAN junction connector

·

No. 2 CAN junction connector


DTC Output from
·

Inverter with converter assembly


U117087 Lost Communication with Brake System Control Module (ch2) Missing Message Communication stops between the hybrid vehicle control ECU or electric brake booster (brake booster with master cylinder assembly) and the skid control ECU (brake actuator assembly).
·

CAN main/branch bus lines or connector

·

Hybrid vehicle control ECU

·

Electric brake booster (brake booster with master cylinder assembly)

·

Skid control ECU (brake actuator assembly)

·

No. 1 CAN junction connector

·

No. 2 CAN junction connector


DTC Output from
·

Hybrid vehicle control ECU

·

Electric brake booster (brake booster with master cylinder assembly)

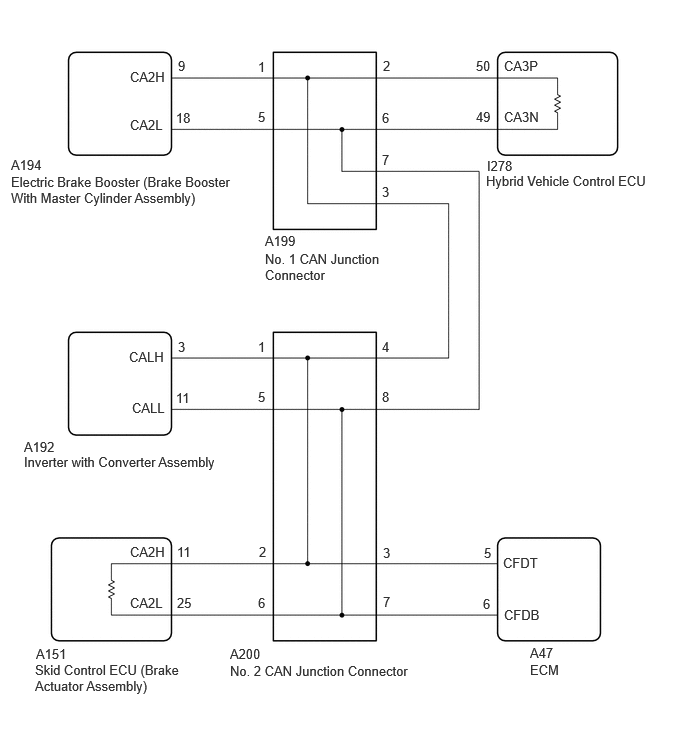

WIRING DIAGRAM

C440218E08
1.354,0.719 1.969,0.917 0.615,0.198 10 false CA2H 1.354,1.219 1.969,1.417 0.615,0.198 10 false CA2L 1.854,0.604 2.135,0.854 0.281,0.25 10 false 9 1.833,1.146 2.115,1.396 0.281,0.25 10 false 18 2.688,0.615 2.969,0.865 0.281,0.25 10 false 1 2.688,1.135 2.969,1.385 0.281,0.25 10 false 5 3.99,0.604 4.323,0.771 0.333,0.167 10 false 2 3.979,1.146 4.313,1.313 0.333,0.167 10 false 6 3.979,1.583 4.313,1.75 0.333,0.167 10 false 7 3.979,1.917 4.313,2.083 0.333,0.167 10 false 3 2.76,2.427 3.344,2.594 0.583,0.167 10 false A199 2.76,2.615 4.031,3.021 1.271,0.406 10 false No. 1 CAN Junction Connector 4.958,0.604 5.292,0.771 0.333,0.167 10 false 50 4.958,1.135 5.292,1.302 0.333,0.167 10 false 49 5.25,0.604 5.865,0.802 0.615,0.198 10 false CA3P 5.25,1.135 5.865,1.333 0.615,0.198 10 false CA3N 5.073,1.646 5.688,1.844 0.615,0.198 10 false I278 5.063,1.802 6.948,2.094 1.885,0.292 10 false Hybrid Vehicle Control ECU 1.344,3.635 1.792,3.802 0.448,0.167 10 false CALH 1.375,4.167 1.781,4.406 0.406,0.24 10 false CALL 1.854,3.531 2.135,3.781 0.281,0.25 10 false 3 1.833,4.063 2.115,4.229 0.281,0.167 10 false 11 2.688,3.531 2.969,3.698 0.281,0.167 10 false 1 2.688,4.052 2.875,4.292 0.188,0.24 10 false 5 3.979,3.531 4.26,3.698 0.281,0.167 10 false 4 3.979,4.052 4.26,4.219 0.281,0.167 10 false 8 3.99,5.677 4.271,5.844 0.281,0.167 10 false 3 3.99,6.188 4.271,6.354 0.281,0.167 10 false 7 2.688,6.198 2.969,6.365 0.281,0.167 10 false 6 2.698,5.667 2.979,5.833 0.281,0.167 10 false 2 1.844,5.667 2.125,5.833 0.281,0.167 10 false 11 1.844,6.198 2.125,6.365 0.281,0.167 10 false 25 5.042,5.677 5.323,5.844 0.281,0.167 10 false 5 5.031,6.208 5.313,6.375 0.281,0.167 10 false 6 5.24,5.781 5.854,5.979 0.615,0.198 10 false CFDT 5.25,6.323 5.865,6.521 0.615,0.198 10 false CFDB 5.521,6.719 5.969,6.938 0.448,0.219 10 false A47 5.521,6.896 5.927,7.146 0.406,0.25 10 false ECM 2.396,6.729 3.01,6.927 0.615,0.198 10 false A200 2.396,6.906 4.354,7.167 1.958,0.26 10 false No. 2 CAN Junction Connector 0.375,6.729 0.99,6.927 0.615,0.198 10 false A151 0.365,6.896 1.906,7.302 1.542,0.406 10 false Skid Control ECU (Brake Actuator Assembly) 1.354,5.667 1.969,5.865 0.615,0.198 10 false CA2H 1.354,6.198 1.969,6.396 0.615,0.198 10 false CA2L 0.25,4.573 0.865,4.771 0.615,0.198 10 false A192 0.25,4.729 2.375,5.031 2.125,0.302 10 false Inverter with Converter Assembly 0.115,1.635 0.729,1.833 0.615,0.198 10 false A194 0.115,1.813 2.469,2.229 2.354,0.417 10 false Electric Brake Booster (Brake Booster With Master Cylinder Assembly)

CAUTION / NOTICE / HINT

CAUTION:
·

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

·
A340358

Before the following operations are conducted, take precautions to prevent electric shock by turning the power switch off, wearing insulated gloves, and removing the service plug grip from HV battery.

-

Inspecting the high-voltage system

-

Disconnecting the low voltage connector of the inverter with converter assembly

-

Disconnecting the low voltage connector of the HV battery


·
A371653

To prevent electric shock, make sure to remove the service plug grip to cut off the high voltage circuit before servicing the vehicle.

·
A358042

After removing the service plug grip from the HV battery, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.

·
A371654C04
1.563,1.229 1.333,0.813 true 1.156,0.677 1.469,0.875 0.313,0.198 10 false *a
*a Without waiting for 10 minutes


After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>PRECAUTION

HINT:

Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.




NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minute or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>DIAGNOSIS SYSTEM

·

Before replacing the hybrid vehicle control ECU, refer to Service Bulletin.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN MAIN BUS LINES
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Measure the resistance according to the value(s) in the table below.

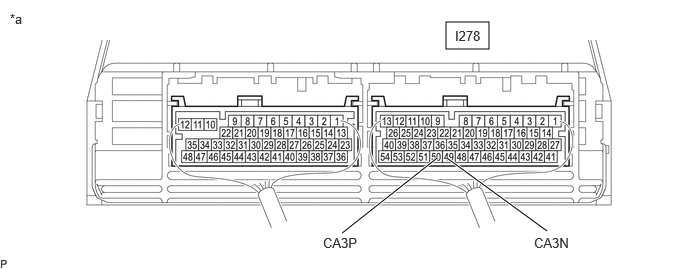

C461854C53
4.646,0.229 5.094,0.51 0.448,0.281 4.552,1.646 3.563,2.427 true 4.656,1.646 5.698,2.406 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.74,0.292 5.198,0.49 0.458,0.198 10 false I278 5.563,2.448 6.177,2.646 0.615,0.198 10 false CA3N 3.365,2.448 3.979,2.646 0.615,0.198 10 false CA3P
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I278-50 (CA3P) - I278-49 (CA3N) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK FOR SHORT IN CAN BUS LINES

NG

41.CHECK FOR OPEN IN CAN MAIN BUS LINES (HYBRID VEHICLE CONTROL ECU)
2.CHECK FOR SHORT IN CAN BUS LINES
a.

Measure the resistance according to the value(s) in the table below.

C461854C53
4.646,0.229 5.094,0.51 0.448,0.281 4.552,1.646 3.563,2.427 true 4.656,1.646 5.698,2.406 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.74,0.292 5.198,0.49 0.458,0.198 10 false I278 5.563,2.448 6.177,2.646 0.615,0.198 10 false CA3N 3.365,2.448 3.979,2.646 0.615,0.198 10 false CA3P
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I278-50 (CA3P) - I278-49 (CA3N) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher



Result:
Proceed to
OK
NG



OK

3.CHECK FOR SHORT TO +B IN CAN BUS LINE

NG

29.CHECK FOR SHORT IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
3.CHECK FOR SHORT TO +B IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

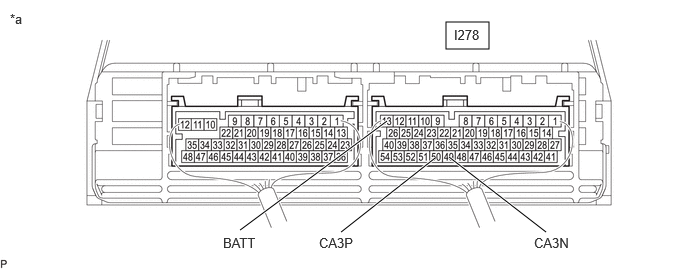

C461854C54
4.646,0.229 5.094,0.51 0.448,0.281 4.531,1.646 3.552,2.417 true 4.677,1.635 5.688,2.417 true 4.031,1.26 2.5,2.396 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.729,0.281 5.188,0.479 0.458,0.198 10 false I278 5.563,2.448 6.177,2.646 0.615,0.198 10 false CA3N 3.323,2.448 3.938,2.646 0.615,0.198 10 false CA3P 2.323,2.448 2.938,2.646 0.615,0.198 10 false BATT
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I278-50 (CA3P) - I278-13 (BATT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I278-49 (CA3N) - I278-13 (BATT)



Result:
Proceed to
OK
NG



OK

4.CHECK FOR SHORT TO GND IN CAN BUS LINE

NG

17.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
4.CHECK FOR SHORT TO GND IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

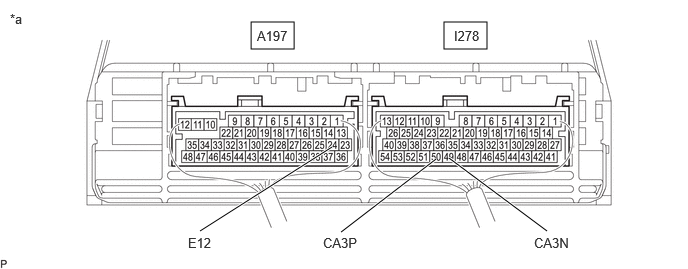

C461854C55
4.625,0.229 5.073,0.51 0.448,0.281 2.615,0.229 3.063,0.51 0.448,0.281 4.677,1.646 5.698,2.406 true 4.542,1.656 3.552,2.417 true 3.458,1.531 2.083,2.406 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.729,0.292 5.188,0.49 0.458,0.198 10 false I278 5.563,2.448 6.177,2.646 0.615,0.198 10 false CA3N 3.365,2.448 3.979,2.646 0.615,0.198 10 false CA3P 1.958,2.448 2.573,2.646 0.615,0.198 10 false E12 2.677,0.292 3.135,0.49 0.458,0.198 10 false A197
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I278-50 (CA3P) - A197-24 (E12) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I278-49 (CA3N) - A197-24 (E12)



Result:
Proceed to
OK
NG



OK

INSPECT FOR INTERMITTENT PROBLEMS

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

5.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
5.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the No. 1 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C486241C09
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 1.844,0.74 2.51,0.229 true 1.833,1.021 2.51,1.521 true 5.333,0.771 4.771,1.583 true 3.906,0.125 4.219,0.281 0.313,0.156 10 false *1 0.198,0.125 0.51,0.281 0.313,0.156 10 false *a 2.583,0.146 3.24,0.354 0.656,0.208 10 false CANH*b 2.573,1.469 3.229,1.677 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.458,0.802 1.115,1.01 0.656,0.208 10 false A199 3.802,0.781 4.458,0.99 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A199-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A199-6 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

6.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION CONNECTOR)

NG

8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
6.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C486241C10
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 2.219,0.76 1.521,0.281 true 2.219,1.021 1.542,1.51 true 5.333,0.771 4.771,1.583 true 3.906,0.125 4.219,0.281 0.313,0.156 10 false *1 0.167,0.125 0.479,0.281 0.313,0.156 10 false *a 0.948,0.198 1.604,0.406 0.656,0.208 10 false CANH*b 1,1.438 1.656,1.646 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.479,0.813 1.135,1.021 0.656,0.208 10 false A199 3.802,0.781 4.458,0.99 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to No. 2 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A199-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A199-7 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)
7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

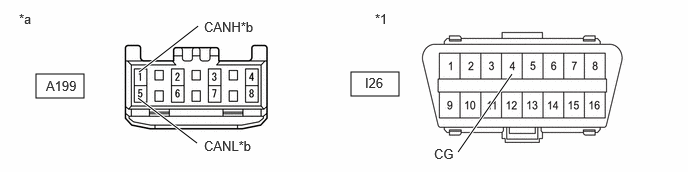

C486241C11
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 1.448,0.75 2.063,0.271 true 1.438,1.021 2.052,1.49 true 5.333,0.771 4.771,1.583 true 3.906,0.115 4.219,0.271 0.313,0.156 10 false *1 0.198,0.115 0.51,0.271 0.313,0.156 10 false *a 2.125,0.198 2.781,0.406 0.656,0.208 10 false CANH*b 2.125,1.438 2.781,1.646 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.479,0.813 1.135,1.021 0.656,0.208 10 false A199 3.802,0.781 4.458,0.99 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A199-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A199-5 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

REPLACE NO. 1 CAN JUNCTION CONNECTOR

NG

9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I278 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C486241C09
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 1.844,0.74 2.51,0.229 true 1.833,1.021 2.51,1.521 true 5.333,0.771 4.771,1.583 true 3.906,0.125 4.219,0.281 0.313,0.156 10 false *1 0.198,0.125 0.51,0.281 0.313,0.156 10 false *a 2.583,0.146 3.24,0.354 0.656,0.208 10 false CANH*b 2.573,1.469 3.229,1.677 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.458,0.802 1.115,1.01 0.656,0.208 10 false A199 3.802,0.781 4.458,0.99 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A199-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A199-6 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A194 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C486241C11
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 1.448,0.75 2.063,0.271 true 1.438,1.021 2.052,1.49 true 5.333,0.771 4.771,1.583 true 3.906,0.115 4.219,0.271 0.313,0.156 10 false *1 0.198,0.115 0.51,0.271 0.313,0.156 10 false *a 2.125,0.198 2.781,0.406 0.656,0.208 10 false CANH*b 2.125,1.438 2.781,1.646 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.479,0.813 1.135,1.021 0.656,0.208 10 false A199 3.802,0.781 4.458,0.99 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A199-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A199-5 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HEV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)
a.

Disconnect the No. 2 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

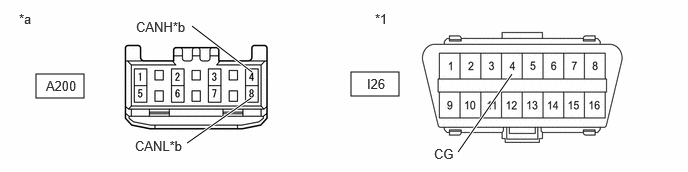

C486241C12
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 2.625,0.75 2,0.271 true 2.615,1.021 1.948,1.49 true 5.333,0.771 4.771,1.583 true 3.906,0.115 4.219,0.271 0.313,0.156 10 false *1 0.198,0.115 0.51,0.271 0.313,0.156 10 false *a 1.417,0.198 2.073,0.406 0.656,0.208 10 false CANH*b 1.406,1.438 2.063,1.646 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.479,0.813 1.135,1.021 0.656,0.208 10 false A200 3.823,0.792 4.479,1 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to No. 1 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A200-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A200-8 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)

11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C486241C13
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 1.448,0.75 2.063,0.271 true 1.438,1.021 2.052,1.49 true 5.333,0.771 4.771,1.583 true 3.906,0.115 4.219,0.271 0.313,0.156 10 false *1 0.198,0.115 0.51,0.271 0.313,0.156 10 false *a 2.125,0.198 2.781,0.406 0.656,0.208 10 false CANH*b 2.125,1.438 2.781,1.646 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.479,0.813 1.135,1.021 0.656,0.208 10 false A200 3.802,0.781 4.458,0.99 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A200-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A200-5 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)

NG

14.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

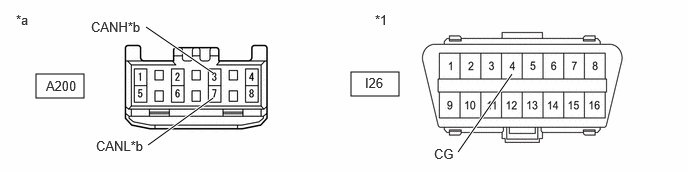

C486241C14
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 2.219,0.76 1.521,0.281 true 2.219,1.021 1.542,1.51 true 5.333,0.771 4.771,1.583 true 3.906,0.125 4.219,0.281 0.313,0.156 10 false *1 0.167,0.125 0.479,0.281 0.313,0.156 10 false *a 0.948,0.198 1.604,0.406 0.656,0.208 10 false CANH*b 1,1.438 1.656,1.646 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.479,0.813 1.135,1.021 0.656,0.208 10 false A200 3.802,0.781 4.458,0.99 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A200-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A200-7 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

13.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

15.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
13.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

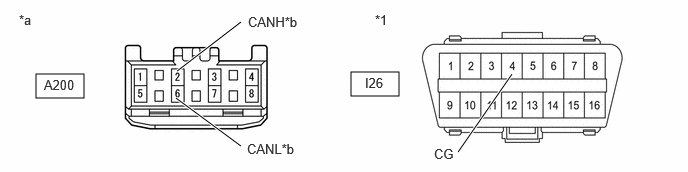

C486241C15
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 1.844,0.74 2.51,0.229 true 1.833,1.021 2.51,1.521 true 5.333,0.771 4.771,1.583 true 3.906,0.125 4.219,0.281 0.313,0.156 10 false *1 0.198,0.125 0.51,0.281 0.313,0.156 10 false *a 2.583,0.146 3.24,0.354 0.656,0.208 10 false CANH*b 2.573,1.469 3.229,1.677 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.458,0.802 1.115,1.01 0.656,0.208 10 false A200 3.802,0.781 4.458,0.99 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A200-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A200-6 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION CONNECTOR

NG

16.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
14.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A192 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C486241C13
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 1.448,0.75 2.063,0.271 true 1.438,1.021 2.052,1.49 true 5.333,0.771 4.771,1.583 true 3.906,0.115 4.219,0.271 0.313,0.156 10 false *1 0.198,0.115 0.51,0.271 0.313,0.156 10 false *a 2.125,0.198 2.781,0.406 0.656,0.208 10 false CANH*b 2.125,1.438 2.781,1.646 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.479,0.813 1.135,1.021 0.656,0.208 10 false A200 3.802,0.781 4.458,0.99 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A194-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A194-5 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

REPLACE MG ECU (REPLACE INVERTER WITH CONVERTER ASSEMBLY)

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

15.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A47 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

C486241C14
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 2.219,0.76 1.521,0.281 true 2.219,1.021 1.542,1.51 true 5.333,0.771 4.771,1.583 true 3.906,0.125 4.219,0.281 0.313,0.156 10 false *1 0.167,0.125 0.479,0.281 0.313,0.156 10 false *a 0.948,0.198 1.604,0.406 0.656,0.208 10 false CANH*b 1,1.438 1.656,1.646 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.479,0.813 1.135,1.021 0.656,0.208 10 false A200 3.802,0.781 4.458,0.99 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A200-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A200-7 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - ECM)

16.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

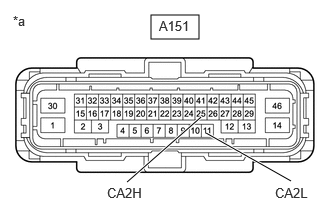

Disconnect the A151 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C486241C15
0.375,0.771 0.875,1.021 0.5,0.25 3.656,0.75 4.156,1 0.5,0.25 1.844,0.74 2.51,0.229 true 1.833,1.021 2.51,1.521 true 5.333,0.771 4.771,1.583 true 3.906,0.125 4.219,0.281 0.313,0.156 10 false *1 0.198,0.125 0.51,0.281 0.313,0.156 10 false *a 2.583,0.146 3.24,0.354 0.656,0.208 10 false CANH*b 2.573,1.469 3.229,1.677 0.656,0.208 10 false CANL*b 4.521,1.521 4.802,1.729 0.281,0.208 10 false CG 0.458,0.802 1.115,1.01 0.656,0.208 10 false A200 3.802,0.781 4.458,0.99 0.656,0.208 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A200-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A200-6 (CANL) - I26-4 (CG)



Result:
Proceed to
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HEV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

17.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the No. 9 Global CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C486241C16
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 1.854,0.74 2.375,0.229 true 1.833,1.021 2.375,1.542 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 2.427,0.135 3.063,0.385 0.635,0.25 10 false CANH*b 2.448,1.49 3.083,1.74 0.635,0.25 10 false CANL*b 0.594,0.833 1.229,1.083 0.635,0.25 10 false A199 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A199-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A199-6 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

18.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION CONNECTOR)

NG

20.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
18.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C486241C17
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 2.229,0.74 1.458,0.302 true 2.219,1.031 1.469,1.542 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 0.906,0.229 1.542,0.479 0.635,0.25 10 false CANH*b 0.917,1.479 1.552,1.729 0.635,0.25 10 false CANL*b 0.615,0.833 1.25,1.083 0.635,0.25 10 false A199 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to No. 2 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A199-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A199-7 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

19.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

22.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)
19.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C486241C18
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 1.458,0.74 2.063,0.24 true 1.469,1.021 2.063,1.552 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 2.115,0.167 2.75,0.417 0.635,0.25 10 false CANH*b 2.125,1.479 2.76,1.729 0.635,0.25 10 false CANL*b 0.594,0.833 1.229,1.083 0.635,0.25 10 false A199 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A199-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A199-5 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

REPLACE NO. 1 CAN JUNCTION CONNECTOR

NG

21.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
20.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

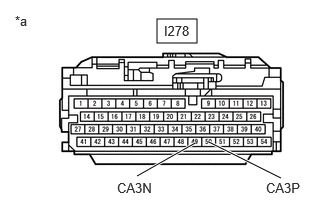

Disconnect the I278 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C486241C16
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 1.854,0.74 2.375,0.229 true 1.833,1.021 2.375,1.542 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 2.427,0.135 3.063,0.385 0.635,0.25 10 false CANH*b 2.448,1.49 3.083,1.74 0.635,0.25 10 false CANL*b 0.594,0.833 1.229,1.083 0.635,0.25 10 false A199 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A199-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A199-6 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

21.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A194 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

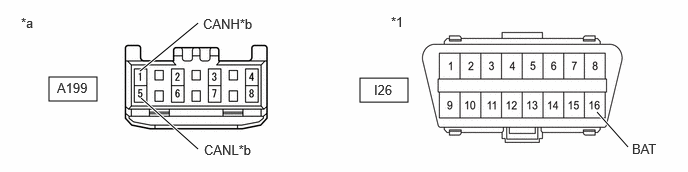

C486241C18
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 1.458,0.74 2.063,0.24 true 1.469,1.021 2.063,1.552 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 2.115,0.167 2.75,0.417 0.635,0.25 10 false CANH*b 2.125,1.479 2.76,1.729 0.635,0.25 10 false CANL*b 0.594,0.833 1.229,1.083 0.635,0.25 10 false A199 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A199-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A199-5 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HEV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

22.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)
a.

Disconnect the No. 2 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

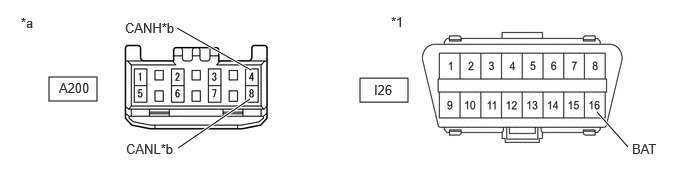

C486241C19
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 2.615,0.729 1.844,0.292 true 2.604,1.031 1.854,1.542 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 1.302,0.208 1.938,0.458 0.635,0.25 10 false CANH*b 1.313,1.469 1.948,1.719 0.635,0.25 10 false CANL*b 0.615,0.833 1.25,1.083 0.635,0.25 10 false A200 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to No. 1 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A200-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A200-8 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

23.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)

23.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C486241C20
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 1.458,0.74 2.063,0.24 true 1.469,1.021 2.063,1.552 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 2.115,0.167 2.75,0.417 0.635,0.25 10 false CANH*b 2.125,1.479 2.76,1.729 0.635,0.25 10 false CANL*b 0.594,0.833 1.229,1.083 0.635,0.25 10 false A200 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A200-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A200-5 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

24.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)

NG

26.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
24.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

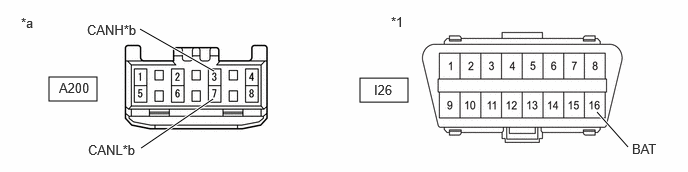

C486241C21
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 2.229,0.74 1.458,0.302 true 2.219,1.031 1.469,1.542 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 0.906,0.229 1.542,0.479 0.635,0.25 10 false CANH*b 0.917,1.479 1.552,1.729 0.635,0.25 10 false CANL*b 0.615,0.833 1.25,1.083 0.635,0.25 10 false A200 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A200-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A200-7 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

25.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

27.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
25.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C486241C22
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 1.854,0.74 2.375,0.229 true 1.833,1.021 2.375,1.542 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 2.427,0.135 3.063,0.385 0.635,0.25 10 false CANH*b 2.448,1.49 3.083,1.74 0.635,0.25 10 false CANL*b 0.594,0.844 1.229,1.094 0.635,0.25 10 false A200 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A200-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A200-6 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION CONNECTOR

NG

28.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
26.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A192 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C486241C20
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 1.458,0.74 2.063,0.24 true 1.469,1.021 2.063,1.552 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 2.115,0.167 2.75,0.417 0.635,0.25 10 false CANH*b 2.125,1.479 2.76,1.729 0.635,0.25 10 false CANL*b 0.594,0.833 1.229,1.083 0.635,0.25 10 false A200 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A200-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A200-5 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

REPLACE MG ECU (REPLACE INVERTER WITH CONVERTER ASSEMBLY)

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

27.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A47 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

C486241C21
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 2.229,0.74 1.458,0.302 true 2.219,1.031 1.469,1.542 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 0.906,0.229 1.542,0.479 0.635,0.25 10 false CANH*b 0.917,1.479 1.552,1.729 0.635,0.25 10 false CANL*b 0.615,0.833 1.25,1.083 0.635,0.25 10 false A200 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A200-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A200-7 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - ECM)

28.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C486241C22
0.51,0.802 1.01,1.052 0.5,0.25 3.75,0.813 4.25,1.063 0.5,0.25 1.854,0.74 2.375,0.229 true 1.833,1.021 2.375,1.542 true 6.219,1.167 6.542,1.531 true 0.219,0.156 0.531,0.354 0.313,0.198 10 false *a 4.073,0.146 4.385,0.344 0.313,0.198 10 false *1 2.427,0.135 3.063,0.385 0.635,0.25 10 false CANH*b 2.448,1.49 3.083,1.74 0.635,0.25 10 false CANL*b 0.594,0.844 1.229,1.094 0.635,0.25 10 false A200 6.583,1.469 6.969,1.688 0.385,0.219 10 false BAT 3.896,0.854 4.531,1.104 0.635,0.25 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A200-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A200-6 (CANL) - I26-16 (BAT)



Result:
Proceed to
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HEV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

29.CHECK FOR SHORT IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the No. 9 Global CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C486242C05
1.833,0.802 2.333,1.052 0.5,0.25 2.604,0.354 3.385,0.76 true 2.646,1.458 3.375,1.063 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A199 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 2.031,0.281 2.646,0.479 0.615,0.198 10 false CANH*b 2.104,1.396 2.719,1.594 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A199-2 (CANH) - A199-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

30.CHECK FOR SHORT IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION CONNECTOR)

NG

32.CHECK FOR SHORT IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
30.CHECK FOR SHORT IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

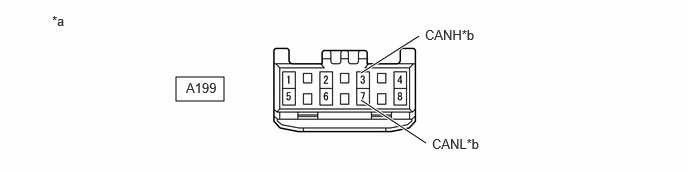

C486242C06
1.833,0.802 2.333,1.052 0.5,0.25 4.365,0.375 3.76,0.76 true 4.438,1.49 3.76,1.042 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A199 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 4.427,0.281 5.042,0.479 0.615,0.198 10 false CANH*b 4.5,1.417 5.115,1.615 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to No. 2 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A199-3 (CANH) - A199-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

31.CHECK FOR SHORT IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

34.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)
31.CHECK FOR SHORT IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C486242C07
1.833,0.802 2.333,1.052 0.5,0.25 2.292,0.344 3,0.76 true 2.281,1.458 3.01,1.063 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A199 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 1.719,0.25 2.333,0.448 0.615,0.198 10 false CANH*b 1.74,1.396 2.354,1.594 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A199-1 (CANH) - A199-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE NO. 1 CAN JUNCTION CONNECTOR

NG

33.CHECK FOR SHORT IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
32.CHECK FOR SHORT IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I278 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C486242C05
1.833,0.802 2.333,1.052 0.5,0.25 2.604,0.354 3.385,0.76 true 2.646,1.458 3.375,1.063 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A199 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 2.031,0.281 2.646,0.479 0.615,0.198 10 false CANH*b 2.104,1.396 2.719,1.594 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A199-2 (CANH) - A199-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

33.CHECK FOR SHORT IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A194 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C486242C07
1.833,0.802 2.333,1.052 0.5,0.25 2.292,0.344 3,0.76 true 2.281,1.458 3.01,1.063 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A199 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 1.719,0.25 2.333,0.448 0.615,0.198 10 false CANH*b 1.74,1.396 2.354,1.594 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A199-1 (CANH) - A199-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HEV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 1 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

34.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)
a.

Reconnect the A199 No. 1 CAN junction connector.


b.

Disconnect the No. 2 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

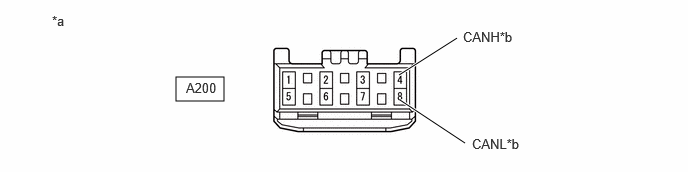

C486242C08
1.833,0.802 2.333,1.052 0.5,0.25 4.76,0.396 4.156,0.781 true 4.844,1.49 4.167,1.042 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A200 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 4.823,0.302 5.438,0.5 0.615,0.198 10 false CANH*b 4.917,1.417 5.531,1.615 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to No. 1 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A200-4 (CANH) - A200-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

35.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)

35.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

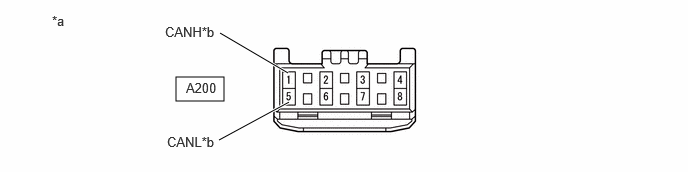

C486242C09
1.833,0.802 2.333,1.052 0.5,0.25 2.292,0.344 3,0.76 true 2.281,1.458 3.01,1.063 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A200 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 1.719,0.25 2.333,0.448 0.615,0.198 10 false CANH*b 1.74,1.396 2.354,1.594 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A200-1 (CANH) - A200-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

36.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)

NG

38.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
36.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C486242C10
1.833,0.802 2.333,1.052 0.5,0.25 4.365,0.375 3.76,0.76 true 4.438,1.49 3.76,1.042 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A200 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 4.427,0.281 5.042,0.479 0.615,0.198 10 false CANH*b 4.5,1.417 5.115,1.615 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A200-3 (CANH) - A200-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

37.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

39.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)
37.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

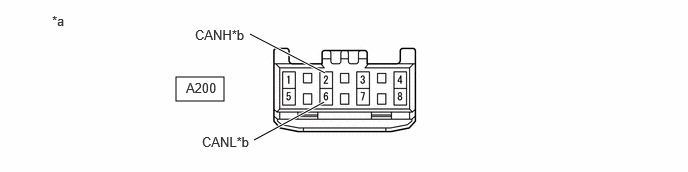

C486242C11
1.833,0.802 2.333,1.052 0.5,0.25 2.604,0.354 3.385,0.76 true 2.646,1.458 3.375,1.063 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A200 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 2.031,0.281 2.646,0.479 0.615,0.198 10 false CANH*b 2.104,1.396 2.719,1.594 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A200-2 (CANH) - A200-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION CONNECTOR

NG

40.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
38.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A192 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C486242C09
1.833,0.802 2.333,1.052 0.5,0.25 2.292,0.344 3,0.76 true 2.281,1.458 3.01,1.063 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A200 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 1.719,0.25 2.333,0.448 0.615,0.198 10 false CANH*b 1.74,1.396 2.354,1.594 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A200-1 (CANH) - A200-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE MG ECU (REPLACE INVERTER WITH CONVERTER ASSEMBLY)

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

39.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A47 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

C486242C10
1.833,0.802 2.333,1.052 0.5,0.25 4.365,0.375 3.76,0.76 true 4.438,1.49 3.76,1.042 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A200 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 4.427,0.281 5.042,0.479 0.615,0.198 10 false CANH*b 4.5,1.417 5.115,1.615 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A200-3 (CANH) - A200-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - ECM)

40.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C486242C11
1.833,0.802 2.333,1.052 0.5,0.25 2.604,0.354 3.385,0.76 true 2.646,1.458 3.375,1.063 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A200 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 2.031,0.281 2.646,0.479 0.615,0.198 10 false CANH*b 2.104,1.396 2.719,1.594 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A200-2 (CANH) - A200-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HEV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

41.CHECK FOR OPEN IN CAN MAIN BUS LINES (HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the hybrid vehicle control ECU connector.


b.
C430869C38
1.635,0.198 2.052,0.448 0.417,0.25 2.927,1.854 2.177,1.479 true 1.427,1.833 2.031,1.49 true 0.156,0.135 0.469,0.333 0.313,0.198 10 false *a 1.708,0.24 2.167,0.438 0.458,0.198 10 false I278 1.219,1.875 1.677,2.073 0.458,0.198 10 false CA3N 2.771,1.875 3.229,2.073 0.458,0.198 10 false CA3P
*a Front view of wire harness connector
(to Hybrid Vehicle Control ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I278-50 (CA3P) - I278-49 (CA3N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

42.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
42.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Reconnect the I278 hybrid vehicle control ECU connector.


b.

Disconnect the No. 1 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C486242C05
1.833,0.802 2.333,1.052 0.5,0.25 2.604,0.354 3.385,0.76 true 2.646,1.458 3.375,1.063 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A199 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 2.031,0.281 2.646,0.479 0.615,0.198 10 false CANH*b 2.104,1.396 2.719,1.594 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A199-2 (CANH) - A199-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

43.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION CONNECTOR)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 1 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

43.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C486242C06
1.833,0.802 2.333,1.052 0.5,0.25 4.365,0.375 3.76,0.76 true 4.438,1.49 3.76,1.042 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A199 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 4.427,0.281 5.042,0.479 0.615,0.198 10 false CANH*b 4.5,1.417 5.115,1.615 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		*b to No. 2 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A199-3 (CANH) - A199-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE NO. 1 CAN JUNCTION CONNECTOR

NG

44.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION CONNECTOR)
44.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION CONNECTOR)
a.

Reconnect the A199 No. 1 CAN junction connector.


b.

Disconnect the No. 2 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C486242C08
1.833,0.802 2.333,1.052 0.5,0.25 4.76,0.396 4.156,0.781 true 4.844,1.49 4.167,1.042 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A200 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 4.823,0.302 5.438,0.5 0.615,0.198 10 false CANH*b 4.917,1.417 5.531,1.615 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to No. 1 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A200-4 (CANH) - A200-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

45.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION CONNECTOR)

45.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C486242C11
1.833,0.802 2.333,1.052 0.5,0.25 2.604,0.354 3.385,0.76 true 2.646,1.458 3.375,1.063 true 1.938,0.833 2.552,1.031 0.615,0.198 10 false A200 0.542,0.135 1.156,0.333 0.615,0.198 10 false *a 2.031,0.281 2.646,0.479 0.615,0.198 10 false CANH*b 2.104,1.396 2.719,1.594 0.615,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A200-2 (CANH) - A200-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION CONNECTOR

NG

46.CHECK FOR OPEN IN CAN MAIN BUS LINES (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
46.CHECK FOR OPEN IN CAN MAIN BUS LINES (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Reconnect the A200 No. 2 CAN junction connector.


b.

Disconnect the skid control ECU (brake actuator assembly) connector.


c.
C437333C32
1.573,0.156 2.073,0.406 0.5,0.25 3.031,1.885 2.146,1.385 true 1.323,1.896 2.094,1.219 true 0.135,0.135 0.448,0.333 0.313,0.198 10 false *a 1.656,0.188 2.208,0.406 0.552,0.219 10 false A151 2.865,1.927 3.333,2.146 0.469,0.219 10 false CA2L 1.115,1.927 1.729,2.125 0.615,0.198 10 false CA2H
*a Front view of wire harness connector
(to Skid Control ECU (Brake Actuator Assembly))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A151-11 (CA2H) - A151-25 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HEV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - NO. 2 CAN JUNCTION CONNECTOR)
