RM38T0EC _53 Suspension _112966 FRONT SUSPENSION _0502992 FRONT LOWER SUSPENSION ARM A

FRONT SUSPENSION FRONT LOWER SUSPENSION ARM REMOVAL

CAUTION / NOTICE / HINT

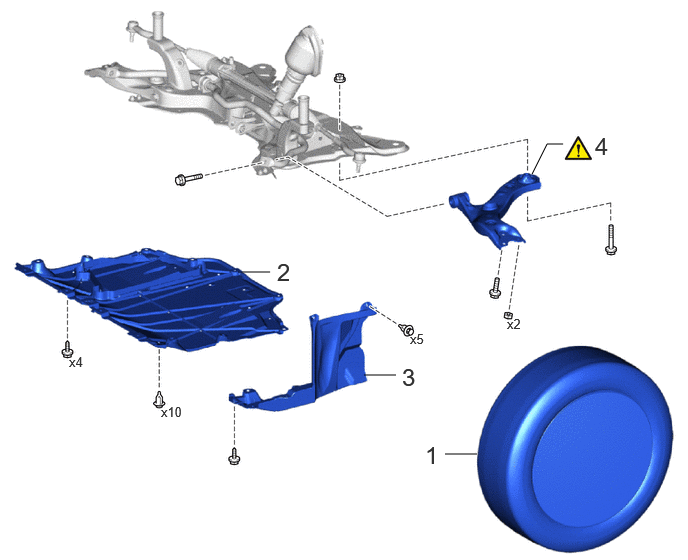

COMPONENTS (REMOVAL)

4.635,4.729 4.969,4.729 false 2.479,2.833 2.813,2.833 false 3.792,3.906 4.125,3.906 false 5.542,1.813 5.698,1.5 5.698,1.5 5.865,1.5 false 1.677,4.208 1.99,4.406 0.313,0.198 10 false x10 0.719,3.688 1.094,3.854 0.375,0.167 10 false x4 4.271,3.448 4.583,3.646 0.313,0.198 10 false x5 4.427,4.594 4.75,4.906 0.323,0.313 18 false 1 2.885,2.688 3.208,3 0.323,0.313 18 false 2 4.188,3.781 4.51,4.094 0.323,0.313 18 false 3 6.198,1.375 6.521,1.688 0.323,0.313 18 false 4 5.281,3.292 5.594,3.49 0.313,0.198 10 false x2

Procedure		Part Name Code
1	FRONT WHEEL	-	-	-	-
2	NO. 1 ENGINE UNDER COVER ASSEMBLY	51410	-	-	-
3	REAR ENGINE UNDER COVER LH	51444A	-	-	-
4	FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY	48069	(202307,999999,_53,_112966,_0502992,RM100000002BYRX_01_0082,)	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front lower No. 1 suspension arm sub-assembly LH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
1: for HEV Model 2: for Gasoline Model
Front wheel alignment adjustment	Calibration	· DTCs are stored · ABS warning light illuminates · Slip indicator light illuminates · VSC disabled or malfunctions	(202307,999999,_54,_112606,_0608077,RM100000002C79U,)1 (202307,999999,_54,_112606,_0608078,RM100000002C7D1,)2
Suspension, tires, etc.	Parking assist ECU initialization	Panoramic view monitor system	(202201,999999,_56,_111969,_0587004,RM1000000029RN8,)

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE FRONT WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202201,999999,_V1,_104397,_0503374,RM100000001ZE9H,

Hide Display 51410 2.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

for HEV Model:

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_144958,_0604262,RM100000002BTSY_01_0306,

for Gasoline Model:

Click hereEngine / Hybrid System>M20A-FKS, M20C-FKS, M20E-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_104395,_0481057,RM100000002CKR4_01_0306,

Hide Display 51444A 3.REMOVE REAR ENGINE UNDER COVER LH

for HEV Model:

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_144958,_0604262,RM100000002BTSY_01_0327,

for Gasoline Model:

Click hereEngine / Hybrid System>M20A-FKS, M20C-FKS, M20E-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_104395,_0481057,RM100000002CKR4_01_0327,

Hide Display 48069 4.REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

0.167,0.063 0.448,0.417 0.281,0.354 18 false i 3.875,0.083 4.156,0.438 0.281,0.354 18 false ii

Remove the bolt and 2 nuts and separate the front lower No. 1 suspension arm sub-assembly from the front lower ball joint assembly.

ii.

Remove the 2 bolts, nut and front lower No. 1 suspension arm sub-assembly from the front suspension crossmember sub-assembly.

NOTICE:: Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
