RM38T0EC _58 Vehicle Interior _115230 THEFT DETERRENT / KEYLESS ENTRY _0605275 DIGITAL KEY RECEIVER(for Front Floor) A

THEFT DETERRENT / KEYLESS ENTRY DIGITAL KEY RECEIVER(for Front Floor) REMOVAL

CAUTION / NOTICE / HINT

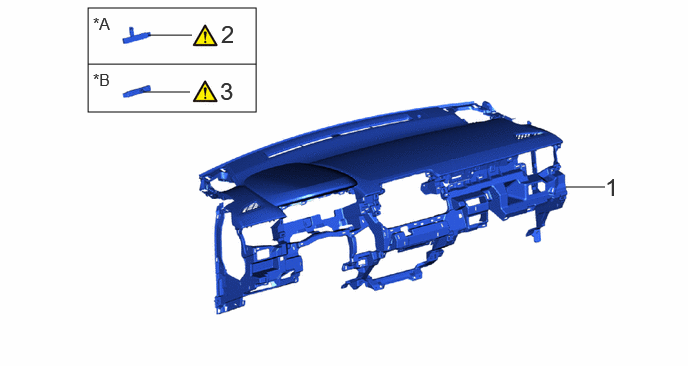

COMPONENTS (REMOVAL)

0.917,0.083 2.667,1.167 1.75,1.083 5.896,1.948 6.302,1.948 false 1.542,0.365 2,0.365 false 1.49,0.958 1.979,0.958 false 0.917,0.667 2.667,0.667 false 2.302,0.208 2.583,0.563 0.281,0.354 18 false 2 6.302,1.802 6.583,2.156 0.281,0.354 18 false 1 2.292,0.802 2.573,1.156 0.281,0.354 18 false 3 0.969,0.146 1.25,0.5 0.281,0.354 12 false *A 0.969,0.729 1.25,1.083 0.281,0.354 12 false *B

Procedure		Part Name Code
1	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	89997	-	-	-
2	REMOVE BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY	890G0	(202307,999999,_58,_115230,_0605275,RM100000002BYFD_01_0001,)	-	-
3	REMOVE BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY	890G0	(202307,999999,_58,_115230,_0605275,RM100000002BYFD_01_0003,)	-	-

for Type A

for Type B

PROCEDURE

Hide Display 1.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202307,999999,_58,_112291,_0501085,RM100000002BHCD,

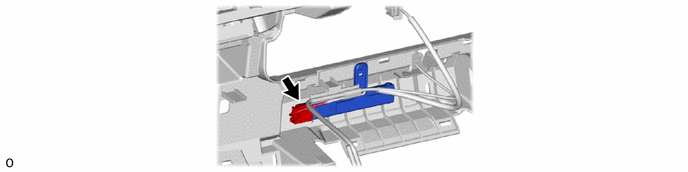

Hide Display 890G0 2.REMOVE BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY (for Type A)

NOTICE:: Be careful when removing the ble indoor digital key receiver assembly. If the ble indoor digital key receiver assembly is dropped, replace it with a new one.

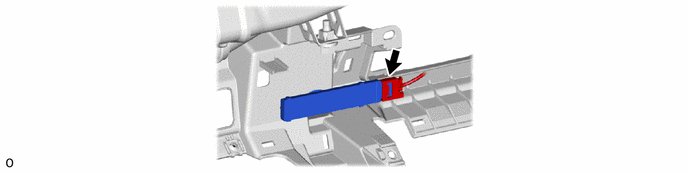

Hide Display 890G0 3.REMOVE BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY (for Type B)

NOTICE:: Be careful when removing the ble indoor digital key receiver assembly. If the ble indoor digital key receiver assembly is dropped, replace it with a new one.
