M20F-FXS, M20G-FXS ENGINE CONTROL SFI SYSTEM P21352B Throttle/Pedal Position Sensor/Switch "A"/"B" Voltage Correlation Signal Cross Coupled
DESCRIPTION
Refer to DTC P012011.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Note |
|---|---|---|---|---|---|
| P21352B | Throttle/Pedal Position Sensor/Switch "A"/"B" Voltage Correlation Signal Cross Coupled | The difference between the output voltage of VTA1 and VTA2 is 0.02 V or less for 2 seconds or more (1 trip detection logic). | ·
Throttle position sensor (throttle body with motor assembly) ·
Short between VTA1 and VTA2 circuits ·
Open in ETA circuit ·
Open in VCTA circuit ·
ECM |
Comes on | SAE Code: P2135 |
MONITOR DESCRIPTION
VTA1 and VTA2 should never be close to the same voltage. If the difference between the value of VTA1 and VTA2 is 0.02 V or less for 2 seconds or more, the ECM will determine there is a short in the sensor circuit, illuminate the MIL and store this DTC.
MONITOR STRATEGY
| Frequency of Operation | Continuous |
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON [A].
Turn the GTS on.
Put the engine in Inspection Mode (Maintenance Mode).
Start the engine.
With the vehicle stationary, fully depress and release the accelerator pedal [B].
- HINT:
-
During charge control, the engine speed is set at idle. Therefore, the engine speed will not increase when the accelerator pedal is depressed. In this case, perform step [B] after charge control has completed.
Idle the engine for 2 seconds or more [C].
Enter the following menus: Powertrain / Engine / Trouble Codes [D].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P21352B.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system is malfunctioning.
·If the judgment result is INCOMPLETE, perform steps [B] through [D] again.
·[A] to [D]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
FAIL-SAFE
When this DTC is stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 7.5° throttle valve opening angle by the return spring. The ECM then adjusts the engine output, by controlling the fuel injection (intermittent fuel cut) and ignition timing, in accordance with the engine torque request signal sent from the hybrid vehicle control ECU assembly, to allow the vehicle to continue being driven at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.
Fail-safe mode continues until a pass condition is detected, and the ignition switch is turned off.
WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
- ·
Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.
(Select Powertrain in Health Check and then check the time stamp data.)
·If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.
- HINT:
-
Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Enter the following menus.
- Powertrain > Engine > Data List
-
Tester Display Throttle Position Sensor No.1 Voltage Throttle Position Sensor No.2 Voltage - 50003 372 75,76
Read the values displayed on the GTS.
- Result:
Result Proceed to Value of both Throttle Position Sensor No.1 Voltage and Throttle Position Sensor No.2 Voltage are less than 0.56 V A Value of both Throttle Position Sensor No.1 Voltage and Throttle Position Sensor No.2 Voltage are higher than 4.535 V B Value of both Throttle Position Sensor No.1 Voltage and Throttle Position Sensor No.2 Voltage are between 0.56 V and 4.535 V C
A
B
C
Disconnect the throttle body with motor assembly connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C19-2 (VC) - C141-109 (VCTA) Always Below 1 Ω C19-1 (VTA) - C141-108 (VTA1) Always Below 1 Ω C19-3 (VTA2) - C141-87 (VTA2) Always Below 1 Ω C19-4 (E2) - C141-110 (ETA) Always Below 1 Ω C19-2 (VC) or C141-109 (VCTA) - Body ground and other terminals Always 10 kΩ or higher C19-1 (VTA) or C141-108 (VTA1) - Body ground and other terminals Always 10 kΩ or higher C19-3 (VTA2) or C141-87 (VTA2) - Body ground and other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG

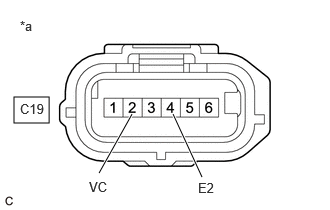

| *a | Front view of wire harness connector
(to Throttle Body with Motor Assembly) |
Disconnect the throttle body with motor assembly connector.
Turn the ignition switch to ON.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition C19-2 (VC) - C19-4 (E2) Ignition switch ON 4.5 to 5.5 V
- HINT:
-
Perform "Inspection After Repair" after replacing the throttle body with motor assembly.
- Result:
Proceed to OK NG
OK
NG
- HINT:
-
Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.
Disconnect the throttle body with motor assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C19-4 (E2) - Body ground Always Below 1 Ω
- HINT:
-
Perform "Inspection After Repair" after replacing the throttle body with motor assembly.
- Result:
Proceed to OK NG
OK
NG
Disconnect the throttle body with motor assembly connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C19-2 (VC) - C141-109 (VCTA) Always Below 1 Ω C19-1 (VTA) - C141-108 (VTA1) Always Below 1 Ω C19-3 (VTA2) - C141-87 (VTA2) Always Below 1 Ω C19-4 (E2) - C141-110 (ETA) Always Below 1 Ω C19-2 (VC) or C141-109 (VCTA) - Other terminals Always 10 kΩ or higher C19-1 (VTA) or C141-108 (VTA1) - Other terminals Always 10 kΩ or higher C19-3 (VTA2) or C141-87 (VTA2) - Other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
Disconnect the throttle body with motor assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C19-1 (VTA) - C19-3 (VTA2) Always 10 kΩ or higher
- HINT:
-
Perform "Inspection After Repair" after replacing the throttle body with motor assembly.
- Result:
Proceed to OK NG
OK
NG
Disconnect the throttle body with motor assembly connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C19-1 (VTA) - C19-3 (VTA2) Always 10 kΩ or higher
- HINT:
-
If the resistance changes when the ECM connector is disconnected, there is an internal short in the ECM.
- Result:
Proceed to OK NG
OK
NG
