M20F-FXS, M20G-FXS ENGINE CONTROL  SFI SYSTEM  P019515  Engine Oil Temperature Sensor Circuit Short to Battery or Open


DESCRIPTION

Refer to DTC P019511.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>P019511

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note
P019515 Engine Oil Temperature Sensor Circuit Short to Battery or Open The engine oil temperature sensor (engine oil pressure and temperature sensor) output voltage is higher than 4.865 V for 5 seconds or more (1 trip detection logic).
·

Open or short in engine oil temperature sensor (engine oil pressure and temperature sensor) circuit

·

Engine oil temperature sensor (engine oil pressure and temperature sensor)

·

ECM


Comes on SAE Code: P0198

HINT:

When this DTC is output, check the engine oil temperature in the Data List. Enter the following menus: Powertrain / Engine / Data List / Engine Oil Temperature Sensor.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DATA LIST / ACTIVE TEST

DTC No. Engine Oil Temperature Sensor Malfunction
P019515 Higher than 150°C (302°F)
·

Short to +B in THEO circuit

·

Open in THEO circuit

·

Open in EPEO circuit



If the Data List value is normal it may be due to a temporary recovery from the malfunction condition. Check for intermittent problems.


MONITOR DESCRIPTION

The ECM monitors the engine oil temperature sensor (engine oil pressure and temperature sensor) and uses the sensor voltage to calculate the engine oil temperature. If the engine oil temperature sensor (engine oil pressure and temperature sensor) output voltage deviates from the normal operating range, the ECM determines that the engine oil temperature sensor (engine oil pressure and temperature sensor) circuit is malfunctioning and stores this DTC.

Example:

If the engine oil temperature sensor (engine oil pressure and temperature sensor) output voltage is higher than 4.865 V for 5 seconds or more, the ECM will store this DTC.

MONITOR STRATEGY

Frequency of Operation Continuous

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Wait 10 seconds or more [B].

9.

Enter the following menus: Powertrain / Engine / Trouble Codes [C].

10.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



11.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

12.

Input the DTC: P019515.

13.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.

·

[A] to [C]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




CAUTION / NOTICE / HINT

NOTICE:
·

Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)

(Select Powertrain in Health Check and then check the time stamp data.)

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)



HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.CHECK HARNESS AND CONNECTOR
A487322C08
0.25,0.927 0.625,1.198 0.375,0.271 2.031,1.115 2.583,1.781 true 1.063,1.75 1.573,1.208 true 1.833,1.771 1.802,1.208 true 0.125,0.125 0.438,0.323 0.313,0.198 10 false *a 0.313,0.958 0.625,1.156 0.313,0.198 10 false C41 2.49,1.823 2.948,2.042 0.458,0.219 10 false TOUT 0.906,1.802 1.281,2.042 0.375,0.24 10 false GND 1.76,1.823 2.073,2.021 0.313,0.198 10 false VC

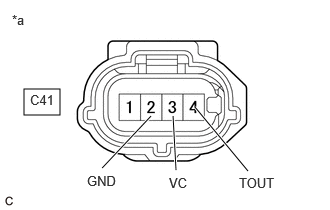

*a Front view of wire harness connector
(to Engine Oil Temperature Sensor (Engine Oil Pressure and Temperature Sensor))


HINT:

Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.


a.

Disconnect the engine oil temperature sensor (engine oil pressure and temperature sensor) connector.


b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
C41-3 (VC) - C41-2 (GND) Ignition switch ON 4.5 to 5.5 V
C41-4 (TOUT) - C41-2 (GND) Ignition switch ON 0.54 to 4.86 V



d.

Turn the ignition switch off and wait for at least 30 seconds.


e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C41-2 (GND) - Body ground Ignition switch off Below 1 Ω
C41-3 (VC) - C41-4 (TOUT) Ignition switch off 171 to 189 kΩ



Result:
Proceed to
OK
NG



OK

NG

2.CHECK HARNESS AND CONNECTOR (ENGINE OIL TEMPERATURE SENSOR (ENGINE OIL PRESSURE AND TEMPERATURE SENSOR) - ECM)
2.CHECK HARNESS AND CONNECTOR (ENGINE OIL TEMPERATURE SENSOR (ENGINE OIL PRESSURE AND TEMPERATURE SENSOR) - ECM)
a.

Disconnect the engine oil temperature sensor (engine oil pressure and temperature sensor) connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C41-2 (GND) - C141-100 (EPEO) Always Below 1 Ω
C41-4 (TOUT) - C141-123 (THEO) Always Below 1 Ω
C41-4 (TOUT) or C141-123 (THEO) - Other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
