RM38T0EC _51 Engine / Hybrid System _144998 M20F-FXS, M20G-FXS LUBRICATION _0604332 OIL PRESSURE AND TEMPERATURE SENSOR A

M20F-FXS, M20G-FXS LUBRICATION OIL PRESSURE AND TEMPERATURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

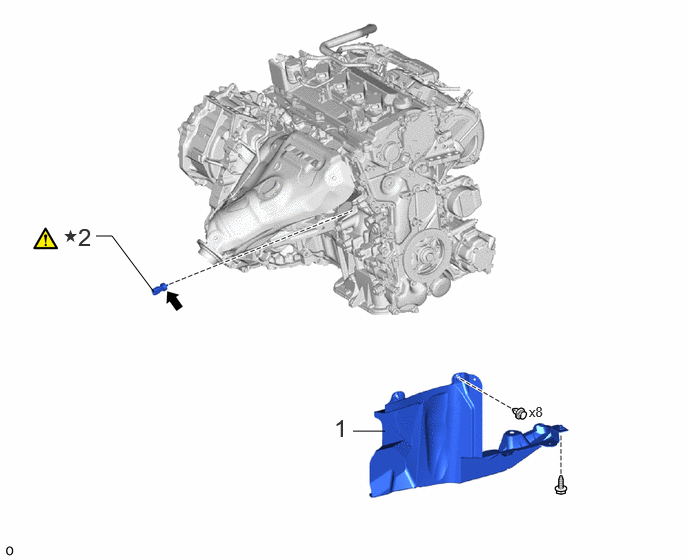

COMPONENTS (REMOVAL)

1.604,3.042 1.167,2.458 1.167,2.458 1,2.458 false 3.677,4.49 4.01,4.49 false 0.813,2.323 1.094,2.677 0.281,0.354 18 false 2 3.479,4.313 3.76,4.667 0.281,0.354 18 false 1 0.667,2.375 0.948,2.729 0.281,0.354 10 false ★ 5.51,4.208 5.792,4.563 0.281,0.354 10 false x8

Procedure		Part Name Code
1	REAR ENGINE UNDER COVER RH	51443C	-	-	-
2	OIL PRESSURE AND TEMPERATURE SENSOR	89448D	(202307,999999,_51,_144998,_0604332,RM100000002BTWD_01_0017,)	-	-

Adhesive 1344

★

Precoated part

PROCEDURE

Hide Display 51443C 1.REMOVE REAR ENGINE UNDER COVER RH

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_144958,_0604262,RM100000002BTSY_01_0328,

Hide Display 89448D 2.REMOVE OIL PRESSURE AND TEMPERATURE SENSOR

0.229,0 0.51,0.354 0.281,0.354 18 false i 4.323,0.021 4.594,0.302 0.271,0.281 18 true ii

Disconnect the oil pressure and temperature sensor connector.

ii.

Using a 24 mm deep socket wrench, remove the oil pressure and temperature sensor.

NOTICE:: If the oil pressure and temperature sensor is dropped or subjected to a strong impact, replace it with a new one.
