BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  FRONT SPEED SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

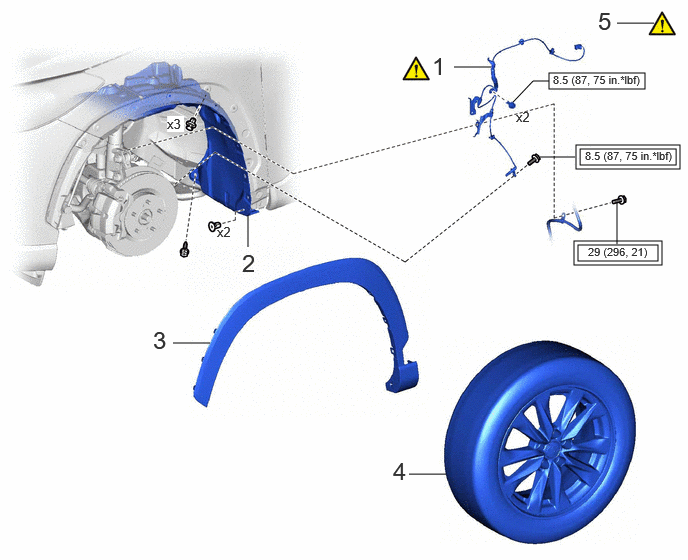

COMPONENTS (INSTALLATION)
C437404N04
5.719,0.76 6.719,0.927 1,0.167 6.042,1.552 7.042,1.719 1,0.167 6,1.51 7.083,1.76 1.083,0.25 6.021,2.552 6.854,2.719 0.833,0.167 5.979,2.51 6.896,2.76 0.917,0.25 6.427,0.24 6.813,0.24 false 4.729,0.698 5.115,0.698 false 4.26,4.938 4.646,4.938 false 1.802,3.573 2.188,3.573 false 5.344,1.063 5.552,0.844 5.552,0.844 5.719,0.844 false 5.625,1.635 5.99,1.635 false 6.427,2.115 6.427,2.542 false 2.583,2.573 2.583,2.24 false 6.229,0.073 6.51,0.427 0.281,0.354 18 false 5 4.5,0.542 4.781,0.896 0.281,0.354 18 false 1 4.094,4.76 4.375,5.115 0.281,0.354 18 false 4 1.594,3.396 1.875,3.75 0.281,0.354 18 false 3 2.521,2.594 2.802,2.948 0.281,0.354 18 false 2 5.375,1.135 5.646,1.344 0.271,0.208 10 false x2 2.26,2.333 2.531,2.542 0.271,0.208 10 false x2 5.76,0.76 6.76,0.948 1,0.188 8 false 8.5 (87, 75 in.*lbf) 6.094,1.552 7.094,1.74 1,0.188 8 false 8.5 (87, 75 in.*lbf) 6.125,2.552 6.802,2.771 0.677,0.219 8 false 29 (296, 21) 1.74,1.208 1.917,1.375 0.177,0.167 10 true x3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT SPEED SENSOR 89543 (Click here) - -
2 FRONT FENDER LINER 53876A - - -
3 WHEEL OPENING MOULDING - - - -
4 FRONT WHEEL - - - -
5 CHECK FOR SPEED SENSOR SIGNAL - (Click here) - -

V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

·

The front speed sensor rotor is a component of the front axle hub sub-assembly. If the front speed sensor rotor is malfunctioning, replace the front axle hub sub-assembly.



PROCEDURE

Hide 89543 1.INSTALL FRONT SPEED SENSOR

Z101186

NOTICE:

Do not twist the front speed sensor wire harness when installing it.



a.
C437407N02
0.323,0.042 0.865,0.302 0.542,0.26 18 true ii, iii 4.417,0.063 4.792,0.333 0.375,0.271 18 true i

i.

Install the front speed sensor to the steering knuckle with the bolt.

Torque:
8.5 N*m (87 kgf*cm, 75 in.*lbf)

NOTICE:
·

Keep the tip of the front speed sensor and installation hole free of foreign matter.

·

Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.

·

After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.




ii.

Engage the clamp to the front shock absorber assembly.


iii.

Install the front speed sensor clamp and front flexible hose to the front shock absorber assembly with the bolt.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)



b.
C437406N03
3.938,0.083 4.438,0.385 0.5,0.302 18 true i, ii 0.542,0.104 1.083,0.385 0.542,0.281 18 true iii, iv

i.

Install the 2 front speed sensor clamps with the 2 bolts.

Torque:
8.5 N*m (87 kgf*cm, 75 in.*lbf)


ii.

Engage the clamp to the vehicle body.


iii.

Engage the clamp to the vehicle body.


iv.

Connect the connector.



Hide 53876A 2.INSTALL FRONT FENDER LINER
