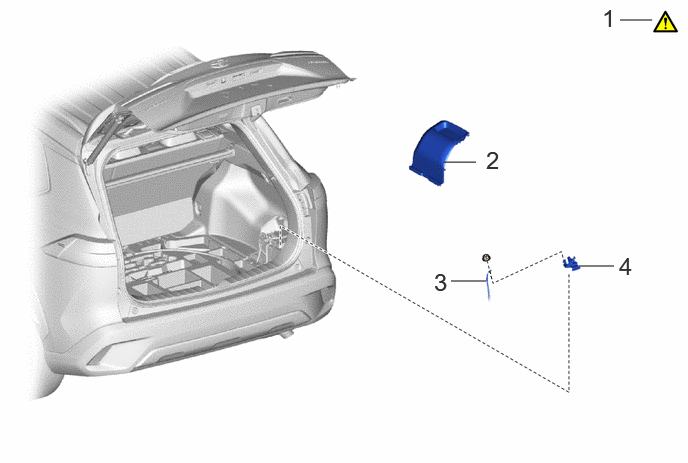

M20F-FXS, M20G-FXS BATTERY / CHARGING  BATTERY CURRENT SENSOR  REMOVAL

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during battery state sensor removal/installation are shown below.

NOTICE:

If both left and right front flexible hoses are disconnected at the same time, be sure to place an identification mark on each hose to indicate its installation position.

HINT:

·

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
