HEATING / AIR CONDITIONING AIR CONDITIONING PANEL(for Electrical Control Type) REMOVAL
CAUTION / NOTICE / HINT

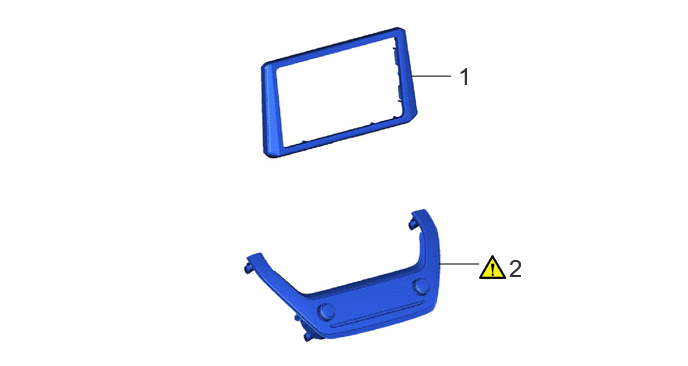

COMPONENTS (REMOVAL)
4.573,2.75 4.99,2.75
false
4.281,0.792 4.698,0.792
false
4.771,0.646 5.052,1
0.281,0.354
18
false
1
5.302,2.646 5.583,3
0.281,0.354
18
false
2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | 55405B | - | - | - |
| 2 | AIR CONDITIONING CONTROL ASSEMBLY | 55900 | ( 202201,999999,_58,_104612,_0500019,RM100000001Z15I_01_0144,)
|
- | - |
PROCEDURE
55405B
1.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
55900
2.REMOVE AIR CONDITIONING CONTROL ASSEMBLY
a.
0.271,0.99 0.552,1.344
0.281,0.354
18
false
i
3.833,0.115 4.115,0.469
0.281,0.354
18
false
ii
3.781,1.99 4.063,2.344
0.281,0.354
18
false
iii

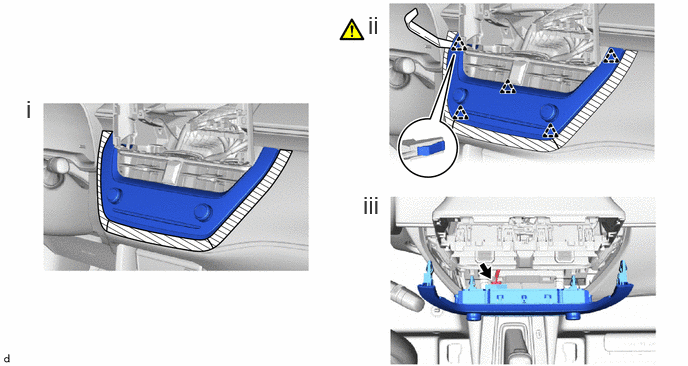

i.
Apply protective tape to the area shown in the illustration.
ii.
Using a moulding remover A, disengage the clips to separate the air conditioning control assembly.
iii.
Disconnect the connector to remove the air conditioning control assembly.
