RM38T0EC _51 Engine / Hybrid System _144996 M20F-FXS, M20G-FXS EMISSION CONTROL _0604313 PCV VALVE A

M20F-FXS, M20G-FXS EMISSION CONTROL PCV VALVE REMOVAL

CAUTION / NOTICE / HINT

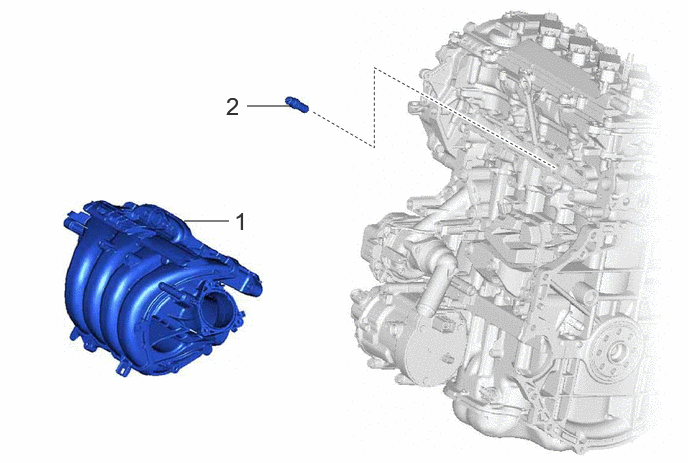

COMPONENTS (REMOVAL)

2.573,1.104 3.042,1.104 false 1.917,2.302 2.385,2.302 false 2.438,2.156 2.719,2.51 0.281,0.354 18 false 1 2.354,0.958 2.635,1.313 0.281,0.354 18 false 2

Procedure		Part Name Code
1	INTAKE MANIFOLD	17111	-	-	-
2	PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)	12204C	-	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during PCV valve (ventilation valve sub-assembly) removal/installation are shown below.

PROCEDURE

Hide Display 17111 1.REMOVE INTAKE MANIFOLD

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (INTAKE / EXHAUST)>INTAKE MANIFOLD>REMOVAL202307,999999,_51,_144997,_0604322,RM100000002BTVQ,

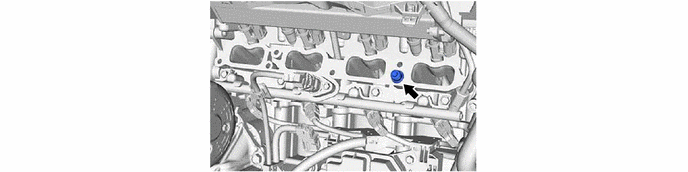

Hide Display 12204C 2.REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
