M20F-FXS, M20G-FXS EMISSION CONTROL  FUEL TANK PRESSURE SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

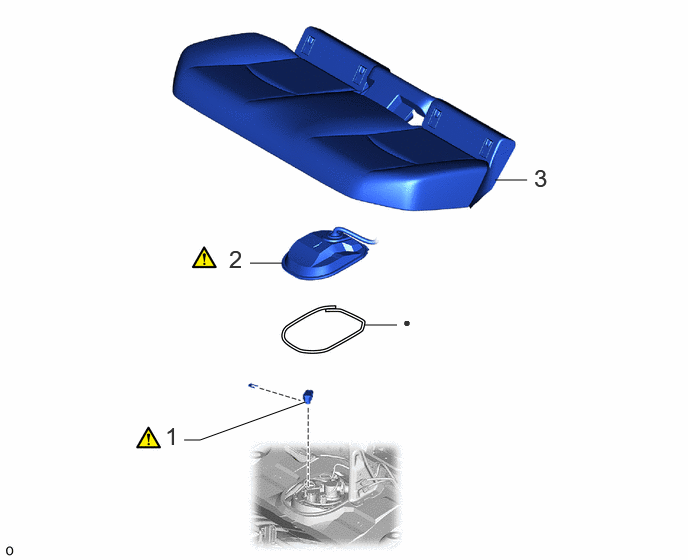

COMPONENTS (INSTALLATION)
A545601N01
5.156,1.875 5.49,1.875 false 2.604,2.74 2.938,2.74 false 3.802,3.385 4.135,3.385 false 1.917,4.583 2.083,4.583 2.083,4.583 3.177,4.188 false 5.563,1.708 5.844,2.063 0.281,0.354 18 false 3 2.385,2.552 2.667,2.906 0.281,0.354 18 false 2 1.719,4.396 2,4.75 0.281,0.354 18 false 1 4.198,3.271 4.5,3.469 0.302,0.198 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR) 89461 (Click here) - -
2 REAR FLOOR SERVICE HOLE COVER 58325M (Click here) - -
3 REAR SEAT CUSHION ASSEMBLY - - - -

● Non-reusable part - -

PROCEDURE

Hide 89461 1.INSTALL FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)

a.
A545603C01

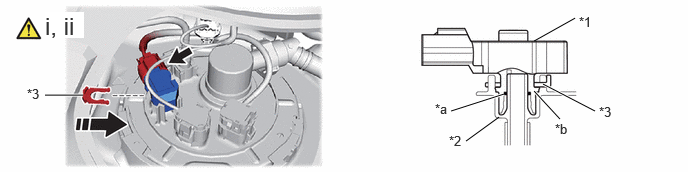

5.25,0.979 4.698,1.156 true 6.198,1.156 5.656,0.875 true 4.854,1.469 5.198,1.219 false 5.563,0.427 5.99,0.188 false 0.469,0.99 0.865,0.99 true 5.833,1.24 5.563,0.948 true 6.031,0.146 6.344,0.302 0.313,0.156 10 false *1 4.677,1.385 4.99,1.542 0.313,0.156 10 false *2 6.24,1.083 6.552,1.24 0.313,0.156 10 false *3 0.469,0.125 0.875,0.396 0.406,0.271 18 true i, ii 4.531,1.052 4.844,1.208 0.313,0.156 10 false *a 0.281,0.896 0.594,1.052 0.313,0.156 10 false *3 5.781,1.26 6.094,1.417 0.313,0.156 10 false *b
*1 Fuel Tank Pressure Sensor (Vapor Pressure Sensor) *2 Fuel Suction Plate Sub-assembly
*3 Tube Joint Clip - -
*a O-ring *b Collar


i.

Push the fuel tank pressure sensor (vapor pressure sensor) onto the fuel suction plate sub-assembly, then install the tube joint clip.

NOTICE:
·

Check that there are no scratches or foreign matter around the connecting parts of the fuel tank pressure sensor (vapor pressure sensor) and fuel suction plate sub-assembly before performing this work.

·

Check that the fuel suction plate sub-assembly is securely inserted to the end of the fuel tank pressure sensor (vapor pressure sensor).

·

Check that the tube joint clip is on the collar of the fuel tank pressure sensor (vapor pressure sensor).

·

After installing the tube joint clip, check that the fuel tank pressure sensor (vapor pressure sensor) cannot be pulled out.




ii.

Connect the fuel tank pressure sensor (vapor pressure sensor) connector.



Hide 58325M 2.INSTALL REAR FLOOR SERVICE HOLE COVER

Z101186

Click here(Click here)
