RM38T0EC _58 Vehicle Interior _114203 SEAT _0509293 REAR SEAT ASSEMBLY A

SEAT  REAR SEAT ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

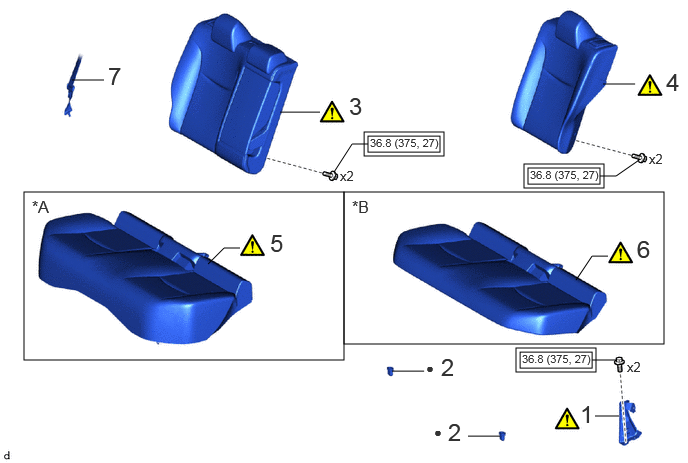

COMPONENTS (INSTALLATION)
B582967N02
0.25,2 3.583,3.75 3.333,1.75 3.583,2 6.917,3.583 3.333,1.583 5.417,3.667 6.167,3.833 0.75,0.167 5.375,3.625 6.208,3.875 0.833,0.25 5.5,1.75 6.25,1.917 0.75,0.167 3.833,1.417 4.583,1.583 0.75,0.167 5.458,1.708 6.292,1.958 0.833,0.25 3.792,1.375 4.625,1.625 0.833,0.25 0.75,0.833 1.083,0.833 false 2.167,2.75 2.333,2.583 2.333,2.583 2.5,2.583 false 6,2.917 6.167,2.667 6.167,2.667 6.333,2.667 false 4.875,4.542 5.208,4.542 false 6.198,4.333 6.448,4.333 false 2.917,1.167 3.333,1.167 false 6.281,0.875 6.615,0.875 false 4.083,3.865 4.417,3.865 false 6.167,3.75 6.417,3.75 false 6.25,1.833 6.417,1.833 6.417,1.833 6.656,1.667 false 3.479,1.792 3.667,1.5 3.667,1.5 3.833,1.5 false 3.542,1.75 3.854,1.948 0.313,0.198 10 false x2 6.76,1.573 7.094,1.771 0.333,0.198 10 false x2 6.531,3.74 6.844,3.938 0.313,0.198 10 false x2 1.125,0.646 1.406,1 0.281,0.354 18 false 7 2.813,2.385 3.094,2.74 0.281,0.354 18 false 5 6.635,2.448 6.917,2.802 0.281,0.354 18 false 6 3.635,0.958 3.917,1.313 0.281,0.354 18 false 3 6.938,0.708 7.146,1.125 0.208,0.417 18 false 4 4.594,3.677 4.802,4.094 0.208,0.417 18 false 2 4.667,4.354 4.875,4.771 0.208,0.417 18 false 2 6.042,4.167 6.25,4.583 0.208,0.417 18 false 1 3.667,2.052 3.979,2.25 0.313,0.198 12 false *B 0.333,2.052 0.646,2.25 0.313,0.198 12 false *A 4.438,3.75 4.583,3.948 0.146,0.198 10 false ● 4.521,4.417 4.667,4.615 0.146,0.198 10 false ● 5.438,3.667 6.25,3.833 0.813,0.167 8 false 36.8 (375, 27) 5.521,1.75 6.333,1.917 0.813,0.167 8 false 36.8 (375, 27) 3.854,1.417 4.667,1.583 0.813,0.167 8 false 36.8 (375, 27)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR CENTER SEATBACK HINGE SUB-ASSEMBLY 71305A (Click here) - -
2 REAR SEAT CUSHION LOCK HOOK 72693 - - -
3 REAR SEATBACK ASSEMBLY LH - (Click here) - -
4 REAR SEATBACK ASSEMBLY RH - (Click here) - -
5 BENCH TYPE REAR SEAT CUSHION ASSEMBLY - (Click here) - -
6 BENCH TYPE REAR SEAT CUSHION ASSEMBLY - (Click here) - -
7 REAR CENTER SEAT OUTER BELT ASSEMBLY 73350C - - -

*A for Gasoline Model *B for HEV Model
V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) ● Non-reusable part

CAUTION / NOTICE / HINT

CAUTION:
B585831

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 71305A 1.INSTALL REAR CENTER SEATBACK HINGE SUB-ASSEMBLY

Z101186

HINT:

Perform this procedure only when replacement of the rear center seatback hinge sub-assembly is necessary.



Torque:
36.8 N*m (375 kgf*cm, 27 ft.*lbf)

Hide 72693 2.INSTALL REAR SEAT CUSHION LOCK HOOK

Hide 3.INSTALL REAR SEATBACK ASSEMBLY LH

a.
B583805N02
0.375,0.01 0.656,0.365 0.281,0.354 18 false i 4.021,0.021 4.302,0.375 0.281,0.354 18 false iii 0.302,1.969 0.583,2.323 0.281,0.354 18 false iv 4.135,1.969 4.417,2.323 0.281,0.354 18 false v 2.802,0.135 2.99,0.427 0.188,0.292 18 true ii 2.979,0.885 3.156,1.167 0.177,0.281 18 true ii 6.417,0.167 6.531,0.354 0.115,0.188 10 true 1 6.594,1.167 6.708,1.354 0.115,0.188 10 true 2

i.

Place the rear seatback assembly LH in the cabin.

NOTICE:

Be careful not to damage the vehicle body.



ii.

Engage the guides to temporarily install the rear seatback assembly LH with the 2 bolts.


iii.

Tighten the 2 bolts in the order shown in the illustration.

Torque:
36.8 N*m (375 kgf*cm, 27 ft.*lbf)


iv.

Engage the hook and loop fasteners.


v.

Return the rear seatback assembly LH.



Hide 4.INSTALL REAR SEATBACK ASSEMBLY RH

a.
B583804N02
0.375,0.01 0.656,0.365 0.281,0.354 18 false i 4.021,0.01 4.302,0.365 0.281,0.354 18 false iii 0.302,1.969 0.583,2.323 0.281,0.354 18 false iv 4.104,1.979 4.385,2.333 0.281,0.354 18 false v 1.25,0.021 1.417,0.302 0.167,0.281 18 true ii 1.135,1.26 1.292,1.542 0.156,0.281 18 true ii 4.917,0.021 5.052,0.219 0.135,0.198 10 true 1 4.865,1.417 5,1.583 0.135,0.167 10 true 2

i.

Place the rear seatback assembly RH in the cabin.

NOTICE:

Be careful not to damage the vehicle body.



ii.

Engage the guides to temporarily install the rear seatback assembly RH with the 2 bolts.


iii.

Tighten the 2 bolts in the order shown in the illustration.

Torque:
36.8 N*m (375 kgf*cm, 27 ft.*lbf)


iv.

Engage the hook and loop fasteners.


v.

Return the rear seatback assembly RH.



Hide 5.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

Z101186

NOTICE:

Be careful not to damage the vehicle body.



Hide 6.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for HEV Model)

Z101186

NOTICE:

Be careful not to damage the vehicle body.



Hide 73350C 7.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
