RM38T0EC _51 Engine / Hybrid System _144996 M20F-FXS, M20G-FXS EMISSION CONTROL _0604311 FUEL TANK PRESSURE SENSOR A

M20F-FXS, M20G-FXS EMISSION CONTROL FUEL TANK PRESSURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

5.156,1.875 5.49,1.875 false 2.604,2.74 2.938,2.74 false 3.802,3.385 4.135,3.385 false 1.917,4.583 2.083,4.583 2.083,4.583 3.177,4.188 false 5.563,1.708 5.844,2.063 0.281,0.354 18 false 1 2.385,2.552 2.667,2.906 0.281,0.354 18 false 2 1.719,4.396 2,4.75 0.281,0.354 18 false 3 4.198,3.271 4.5,3.469 0.302,0.198 10 false ●

Procedure		Part Name Code
1	REAR SEAT CUSHION ASSEMBLY	-	-	-	-
2	REAR FLOOR SERVICE HOLE COVER	58325M	-	-	-
3	FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)	89461	(202307,999999,_51,_144996,_0604311,RM100000002BTUX_01_0004,)	-	-

●

Non-reusable part

PROCEDURE

Hide Display 1.REMOVE REAR SEAT CUSHION ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>REMOVAL202307,999999,_58,_114203,_0509293,RM100000002BZXZ,

Hide Display 58325M 2.REMOVE REAR FLOOR SERVICE HOLE COVER

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL PUMP>REMOVAL202307,999999,_51,_144959,_0604273,RM100000002BTTR_01_0073,

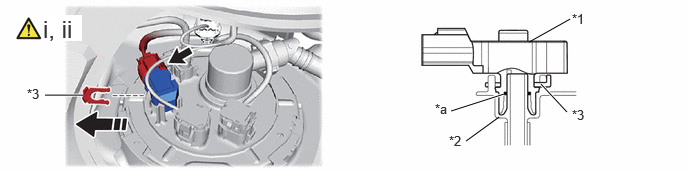

Hide Display 89461 3.REMOVE FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)

5.25,0.979 4.698,1.156 true 5.906,1.167 5.635,0.875 true 4.854,1.469 5.198,1.219 false 5.51,0.438 5.938,0.198 false 0.469,0.99 0.865,0.99 true 5.958,0.115 6.271,0.271 0.313,0.156 10 false *1 4.677,1.385 4.99,1.542 0.313,0.156 10 false *2 5.958,1.115 6.271,1.271 0.313,0.156 10 false *3 0.448,0.156 0.854,0.427 0.406,0.271 18 true i, ii 4.531,1.052 4.844,1.208 0.313,0.156 10 false *a 0.281,0.896 0.594,1.052 0.313,0.156 10 false *3

*1	Fuel Tank Pressure Sensor (Vapor Pressure Sensor)	*2	Fuel Suction Plate Sub-assembly
*3	Tube Joint Clip	-	-
*a	O-ring	-	-

Disconnect the fuel tank pressure sensor (vapor pressure sensor) connector.

ii.

Remove the tube joint clip and pull off the fuel tank pressure sensor (vapor pressure sensor) from fuel suction plate sub-assembly.

NOTICE:: ·

Remove any dirt or foreign matter on the fuel tank pressure sensor (vapor pressure sensor) before performing this work.

·

Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the fuel tank pressure sensor (vapor pressure sensor) has an O-ring that seals the fuel suction plate sub-assembly.

·

Perform this work by hand. Do not use any tools.

·

If the fuel suction plate sub-assembly and fuel tank pressure sensor (vapor pressure sensor) are stuck, carefully wiggle or push and pull the fuel tank pressure sensor (vapor pressure sensor) to release it. Pull the fuel tank pressure sensor (vapor pressure sensor) off the fuel suction plate sub-assembly carefully.
