RM38T0EC _58 Vehicle Interior _114203 SEAT _0509293 REAR SEAT ASSEMBLY A

SEAT  REAR SEAT ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

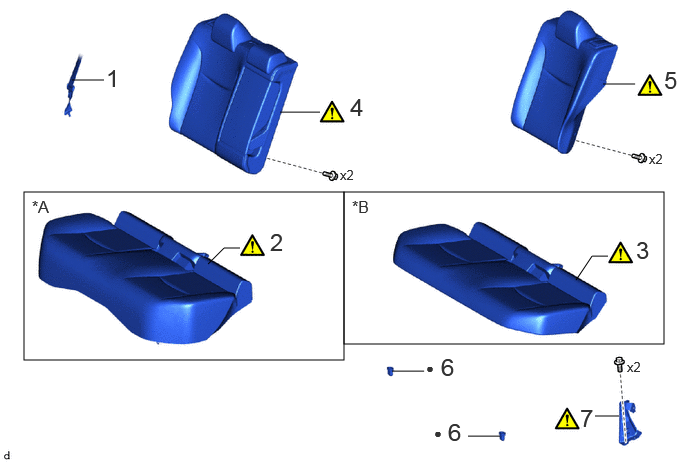

COMPONENTS (REMOVAL)
B582967N01
0.25,2 3.583,3.75 3.333,1.75 3.583,2 6.917,3.583 3.333,1.583 0.75,0.833 1.083,0.833 false 2.167,2.75 2.333,2.583 2.333,2.583 2.5,2.583 false 6,2.917 6.167,2.667 6.167,2.667 6.333,2.667 false 4.875,4.542 5.208,4.542 false 6.198,4.333 6.448,4.333 false 2.917,1.167 3.333,1.167 false 6.281,0.875 6.615,0.875 false 4.083,3.865 4.417,3.865 false 3.542,1.74 3.854,1.938 0.313,0.198 10 false x2 6.76,1.573 7.094,1.771 0.333,0.198 10 false x2 6.531,3.74 6.844,3.938 0.313,0.198 10 false x2 1.104,0.667 1.385,1.021 0.281,0.354 18 false 1 2.813,2.375 3.094,2.729 0.281,0.354 18 false 2 6.625,2.458 6.906,2.813 0.281,0.354 18 false 3 3.646,0.969 3.927,1.323 0.281,0.354 18 false 4 6.917,0.688 7.125,1.104 0.208,0.417 18 false 5 4.594,3.677 4.802,4.094 0.208,0.417 18 false 6 4.667,4.354 4.875,4.771 0.208,0.417 18 false 6 6.042,4.208 6.25,4.625 0.208,0.417 18 false 7 3.667,2.052 3.979,2.25 0.313,0.198 12 false *B 0.333,2.052 0.646,2.25 0.313,0.198 12 false *A 4.438,3.75 4.583,3.948 0.146,0.198 10 false ● 4.521,4.427 4.667,4.625 0.146,0.198 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR CENTER SEAT OUTER BELT ASSEMBLY 73350C - - -
2 BENCH TYPE REAR SEAT CUSHION ASSEMBLY - (Click here) - -
3 BENCH TYPE REAR SEAT CUSHION ASSEMBLY - (Click here) - -
4 REAR SEATBACK ASSEMBLY RH - (Click here) - -
5 REAR SEATBACK ASSEMBLY LH - (Click here) - -
6 REAR SEAT CUSHION LOCK HOOK 72693 - - -
7 REAR CENTER SEATBACK HINGE SUB-ASSEMBLY 71305A (Click here) - -

*A for Gasoline Model *B for HEV Model
● Non-reusable part - -

CAUTION / NOTICE / HINT

CAUTION:
B585831

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

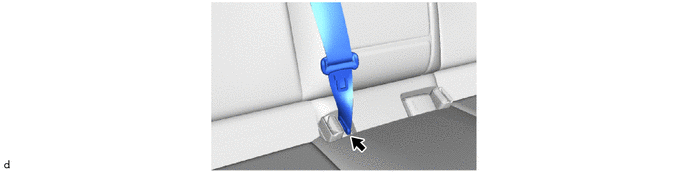

Hide 73350C 1.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

a.
B582425


Hide 2.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

a.
B631810C01
1.75,2.417 2.417,2.25 true 4.406,1.292 4.708,1.479 true 4.958,1.615 5.292,1.698 true 6.833,0.927 6.583,1.177 true 6.385,1.333 6.083,1.552 true 5.104,2.427 5.438,2.594 true 0.406,2.604 0.563,2.802 0.156,0.198 10 false A 1.427,2 1.583,2.198 0.156,0.198 10 false B 2.021,2 2.177,2.198 0.156,0.198 10 false B 4.188,1.177 4.385,1.375 0.198,0.198 10 true *a 6.875,0.646 7.125,0.854 0.25,0.208 10 true *a 5.344,1.583 5.542,1.76 0.198,0.177 10 true *b 5.885,1.573 6.073,1.76 0.188,0.188 10 true *b 2.417,2.125 2.667,2.333 0.25,0.208 10 true *a 4.865,2.26 5.063,2.458 0.198,0.198 10 true *c 3.938,0.021 4.094,0.302 0.156,0.281 18 false i 3.927,2.042 4.094,2.333 0.167,0.292 18 false ii
*a Rear Seat Cushion Frame Hook Front Side *b Guide
*c Rear Seat Cushion Frame Hook Rear Side - -
V113146

Place Hand Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2) - -


i.

Lift the front edge of the bench type rear seat cushion assembly as shown in the illustration and disengage the rear seat cushion frame hooks on the front side and guides of the bench type rear seat cushion assembly from the rear seat cushion lock hooks.

NOTICE:

Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.


Standard Measurement:
Area Measurement Area Measurement
A 60 mm (2.36 in.) B 80 mm (3.15 in.)



ii.

Disengage the rear seat cushion frame hook on the rear side of the bench type rear seat cushion assembly as shown in the illustration.

NOTICE:

Be careful not to damage the bench type rear seat cushion assembly, body exterior or interior parts.

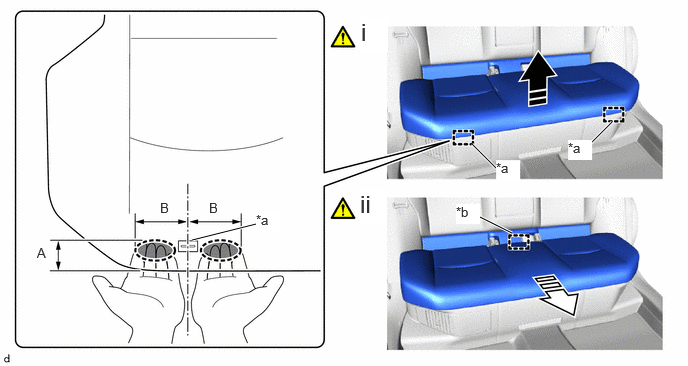

Hide 3.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for HEV Model)

a.
B582940C01
2,2.5 2.667,2.333 true 4.917,1.5 5.167,1.75 true 6.375,1.271 6.125,1.521 true 5,2.26 5.333,2.427 true 0.385,2.552 0.542,2.75 0.156,0.198 10 false A 1.667,2.083 1.823,2.281 0.156,0.198 10 false B 2.177,2.083 2.333,2.281 0.156,0.198 10 false B 5.167,1.667 5.417,1.875 0.25,0.208 10 true *a 5.917,1.458 6.167,1.667 0.25,0.208 10 true *a 4.75,2.125 5,2.333 0.25,0.208 10 true *b 2.667,2.208 2.917,2.417 0.25,0.208 10 true *a 3.76,0.188 4.042,0.542 0.281,0.354 18 true i 3.75,1.979 4.031,2.333 0.281,0.354 18 true ii
*a Rear Seat Cushion Frame Hook Front Side *b Rear Seat Cushion Frame Hook Rear Side
V113146

Place Hand Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2) - -


i.

Lift the front edge of the bench type rear seat cushion assembly as shown in the illustration and disengage the rear seat cushion frame hooks on the front side of the bench type rear seat cushion assembly from the rear seat cushion lock hooks.

NOTICE:

Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.


Standard Measurement:
Area Measurement Area Measurement
A 60 mm (2.36 in.) B 80 mm (3.15 in.)



ii.

Disengage the rear seat cushion frame hook on the rear side of the bench type rear seat cushion assembly as shown in the illustration.

NOTICE:

Be careful not to damage the bench type rear seat cushion assembly, body exterior or interior parts.

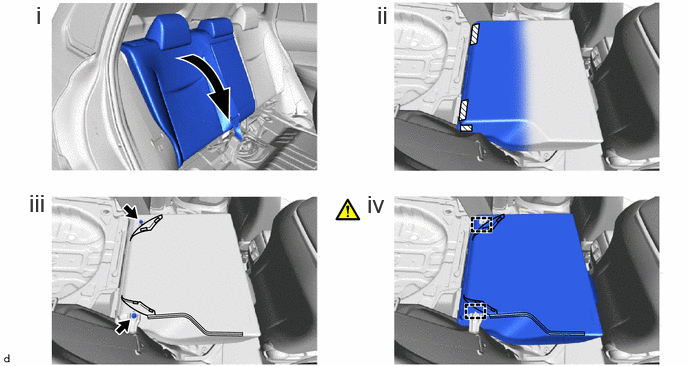

Hide 4.REMOVE REAR SEATBACK ASSEMBLY RH

a.
B582426N01
0.375,0.01 0.656,0.365 0.281,0.354 18 false i 3.927,0.01 4.208,0.365 0.281,0.354 18 false ii 0.302,1.969 0.583,2.323 0.281,0.354 18 false iii 3.823,1.979 4.104,2.333 0.281,0.354 18 false iv

i.

Fold the rear seatback assembly RH forward.


ii.

Disengage the hook and loop fasteners.


iii.

Remove the 2 bolts.


iv.

Disengage the guides to remove the rear seatback assembly RH.

NOTICE:

Be careful not to damage the vehicle body.

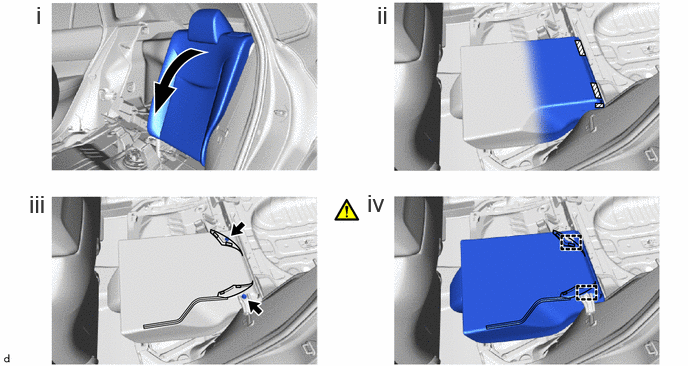

Hide 5.REMOVE REAR SEATBACK ASSEMBLY LH

a.
B582427N01
0.375,0.01 0.656,0.365 0.281,0.354 18 false i 3.927,0.01 4.208,0.365 0.281,0.354 18 false ii 0.302,1.979 0.583,2.333 0.281,0.354 18 false iii 3.823,1.969 4.104,2.323 0.281,0.354 18 false iv

i.

Fold the rear seatback assembly LH forward.


ii.

Disengage the hook and loop fasteners.


iii.

Remove the 2 bolts.


iv.

Disengage the guides to remove the rear seatback assembly LH.

NOTICE:

Be careful not to damage the vehicle body.

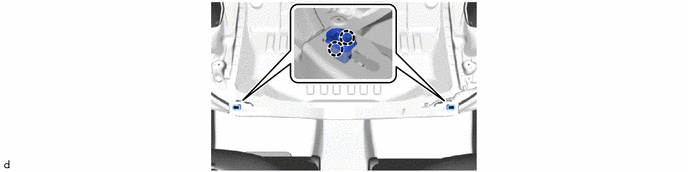

Hide 72693 6.REMOVE REAR SEAT CUSHION LOCK HOOK

a.
B625340

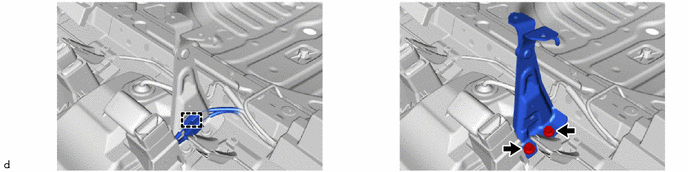

Hide 71305A 7.REMOVE REAR CENTER SEATBACK HINGE SUB-ASSEMBLY

Z101186

HINT:

Perform this procedure only when replacement of the rear center seatback hinge sub-assembly is necessary.



a.
B625341
