RM38T0EC _51 Engine / Hybrid System _144996 M20F-FXS, M20G-FXS EMISSION CONTROL _0604310 FUEL VAPOR CONTAINMENT VALVE A

M20F-FXS, M20G-FXS EMISSION CONTROL FUEL VAPOR CONTAINMENT VALVE INSTALLATION

CAUTION / NOTICE / HINT

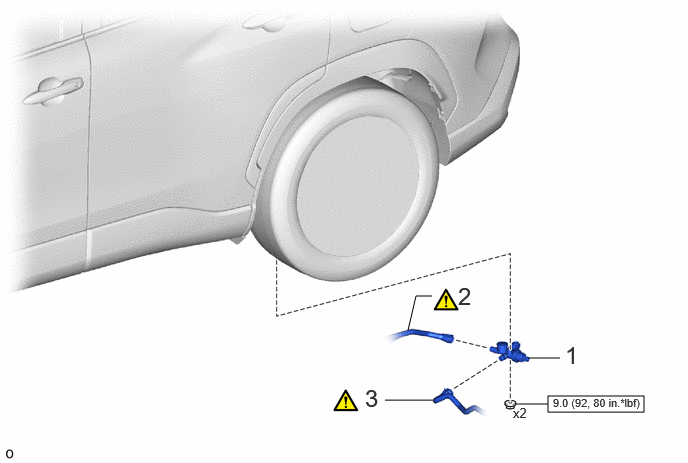

COMPONENTS (INSTALLATION)

5.708,4.125 6.708,4.292 1,0.167 4.51,4.167 4.01,4.167 false 4.5,3.083 4.333,3.083 4.333,3.083 4.25,3.438 false 5.833,3.729 5.5,3.729 false 5.708,4.208 5.375,4.208 false 3.802,4 4.083,4.354 0.281,0.354 18 false 3 4.771,2.938 5.052,3.292 0.281,0.354 18 false 2 5.885,3.552 6.167,3.906 0.281,0.354 18 false 1 5.344,4.219 5.625,4.573 0.281,0.354 10 false x2 5.76,4.125 6.875,4.302 1.115,0.177 8 false 9.0 (92, 80 in.*lbf)

Procedure		Part Name Code
1	FUEL VAPOR CONTAINMENT VALVE (CLOSE TANK VALVE ASSEMBLY)	77070A	-	-	-
2	FUEL TANK VENT HOSE SUB-ASSEMBLY	77404A	(202307,999999,_51,_144996,_0604310,RM100000002BTUW_02_0003,)	-	-
3	CHARCOAL CANISTER FUEL HOSE	77740B	(202307,999999,_51,_144996,_0604310,RM100000002BTUW_02_0004,)	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

PROCEDURE

Hide Display 77070A 1.INSTALL FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY)

Torque:: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

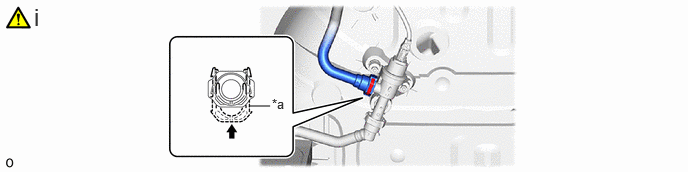

Hide Display 77404A 2.CONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY

2.594,1.104 2.813,1.104 false 2.813,1 3.125,1.156 0.313,0.156 10 false *a 0.365,0.042 0.594,0.323 0.229,0.281 18 false i

*a	Retainer	-	-
	Push in	-	-

Connect the fuel tank vent hose sub-assemblyto the fuel vapor containment valve (close tank valve assembly).

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL SYSTEM>PRECAUTION202307,999999,_51,_144959,_0604265,RM100000002BTT7,

NOTICE:: ·

Check that there are no scratches or foreign matter around the connecting parts of the fuel tank vent hose sub-assemblyand fuel vapor containment valve (close tank valve assembly) before performing this work.

·

After connecting the charcoal canister fuel hose, check that the fuel tank vent hose sub-assemblyare securely connected by pulling on the charcoal canister fuel hose.

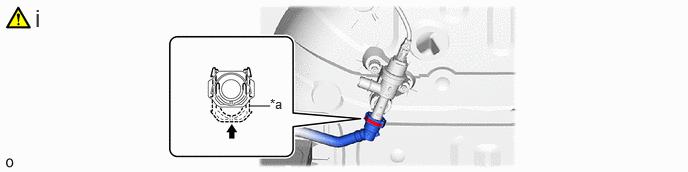

Hide Display 77740B 3.CONNECT CHARCOAL CANISTER FUEL HOSE

2.594,1.104 2.813,1.104 false 2.833,1 3.146,1.156 0.313,0.156 10 false *a 0.354,0.031 0.635,0.385 0.281,0.354 18 false i

*a	Retainer	-	-
	Push in	-	-

Connect the charcoal canister fuel hose to the fuel vapor containment valve (close tank valve assembly).

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL SYSTEM>PRECAUTION202307,999999,_51,_144959,_0604265,RM100000002BTT7,

NOTICE:: ·

Check that there are no scratches or foreign matter around the connecting parts of the charcoal canister fuel hose and fuel vapor containment valve (close tank valve assembly) before performing this work.

·

After connecting the charcoal canister fuel hose , check that the charcoal canister fuel hose are securely connected by pulling on the charcoal canister fuel hose .
