RM38T0EC _51 Engine / Hybrid System _144996 M20F-FXS, M20G-FXS EMISSION CONTROL _0604310 FUEL VAPOR CONTAINMENT VALVE A

M20F-FXS, M20G-FXS EMISSION CONTROL  FUEL VAPOR CONTAINMENT VALVE  REMOVAL


CAUTION / NOTICE / HINT

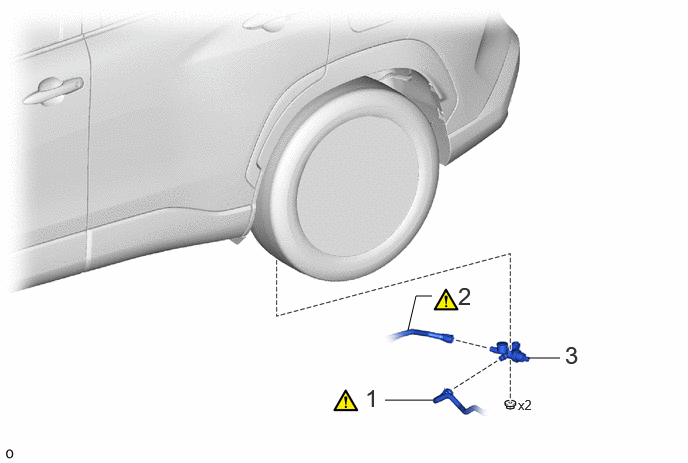

COMPONENTS (REMOVAL)
A545621N01
4.51,4.167 4.01,4.167 false 4.5,3.083 4.333,3.083 4.333,3.083 4.25,3.438 false 5.833,3.729 5.5,3.729 false 3.802,4 4.083,4.354 0.281,0.354 18 false 1 4.771,2.938 5.052,3.292 0.281,0.354 18 false 2 5.885,3.552 6.167,3.906 0.281,0.354 18 false 3 5.396,4.135 5.677,4.49 0.281,0.354 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 CHARCOAL CANISTER FUEL HOSE 77404B (Click here) - -
2 FUEL TANK VENT HOSE SUB-ASSEMBLY 77404A (Click here) - -
3 FUEL VAPOR CONTAINMENT VALVE (CLOSE TANK VALVE ASSEMBLY) 77070A - - -

PROCEDURE

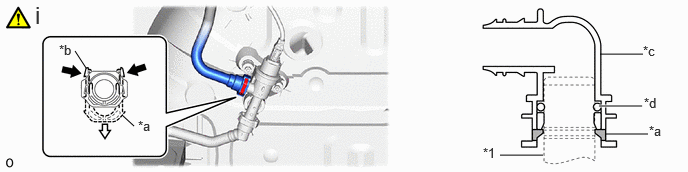

Hide 77740B 1.DISCONNECT CHARCOAL CANISTER FUEL HOSE

a.
A545622C01
0.896,0.708 0.781,0.531 false 1.396,1.313 1.271,1.198 false 6.698,0.563 6.25,0.563 false 6.75,1.396 6.302,1.396 false 6.688,1.104 6.24,1.104 true 5.656,1.615 5.208,1.615 false 5.031,1.51 5.344,1.667 0.313,0.156 10 false *1 0.365,0.01 0.563,0.313 0.198,0.302 18 false i 6.76,1.281 7.073,1.438 0.313,0.156 10 false *a 0.615,0.438 0.927,0.594 0.313,0.156 10 false *b 6.698,0.448 7.01,0.604 0.313,0.156 10 false *c 6.708,0.99 7.021,1.146 0.313,0.156 10 false *d 1.438,1.229 1.75,1.385 0.313,0.156 10 false *a
*1 Pipe (Fuel Vapor Containment Valve (Close Tank Valve Assembly)) - -
*a Retainer *b Tab
*c Tube Connector *d O-ring
V100135

Pinch
V100136

Pull


i.

Disconnect the charcoal canister fuel hose from the fuel vapor containment valve (close tank valve assembly).

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL SYSTEM>PRECAUTION

NOTICE:
·

Remove any dirt or foreign matter on the tube connectors before performing this work.

·

Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connectors have an O-ring that seals the pipe.

·

Perform this work by hand. Do not use any tools.

·

Do not forcibly bend, twist or turn the charcoal canister fuel hose .

·

Protect the disconnected parts by covering them with plastic bags after disconnecting the charcoal canister fuel hose .

·

If the tube connector and pipe are stuck, push and pull to release them.



HINT:

Do not remove the retainer.

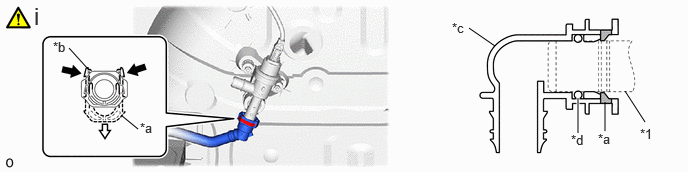

Hide 77404A 2.DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY

a.
A545623C01
0.917,0.719 0.719,0.5 false 1.438,1.344 1.26,1.198 false 6.302,1.365 6.302,1.063 false 6.021,1.385 6.021,1.021 true 6.719,1.271 6.51,0.948 false 5.156,0.479 4.885,0.292 false 6.667,1.313 6.979,1.469 0.313,0.156 10 false *1 0.354,0.021 0.646,0.323 0.292,0.302 18 false i 6.229,1.365 6.542,1.521 0.313,0.156 10 false *a 0.552,0.406 0.865,0.563 0.313,0.156 10 false *b 4.708,0.208 5.021,0.365 0.313,0.156 10 false *c 5.948,1.375 6.26,1.531 0.313,0.156 10 false *d 1.458,1.25 1.771,1.406 0.313,0.156 10 false *a
*1 Pipe (Fuel Vapor Containment Valve (Close Tank Valve Assembly)) - -
*a Retainer *b Tab
*c Tube Connector *d O-ring
V100135

Pinch
V100136

Pull


i.

Disconnect the fuel tank vent hose sub-assembly from the fuel vapor containment valve (close tank valve assembly).

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL SYSTEM>PRECAUTION

NOTICE:
·

Remove any dirt or foreign matter on the tube connectors before performing this work.

·

Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connectors have an O-ring that seals the pipe.

·

Perform this work by hand. Do not use any tools.

·

Do not forcibly bend, twist or turn the fuel tank vent hose sub-assembly .

·

Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose sub-assembly .

·

If the tube connector and pipe are stuck, push and pull to release them.



HINT:

Do not remove the retainer.

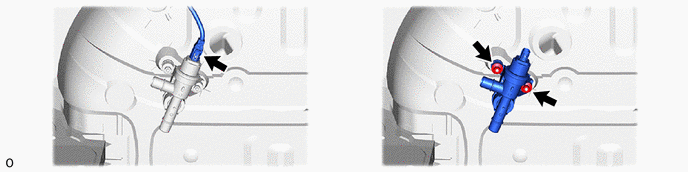

Hide 77070A 3.REMOVE FUEL VAPOR CONTAINMENT VALVE (CLOSE TANK VALVE ASSEMBLY)

a.
A545624
