RM38T0EC _51 Engine / Hybrid System _144996 M20F-FXS, M20G-FXS EMISSION CONTROL _0604308 CANISTER A

M20F-FXS, M20G-FXS EMISSION CONTROL  CANISTER  INSTALLATION


CAUTION / NOTICE / HINT

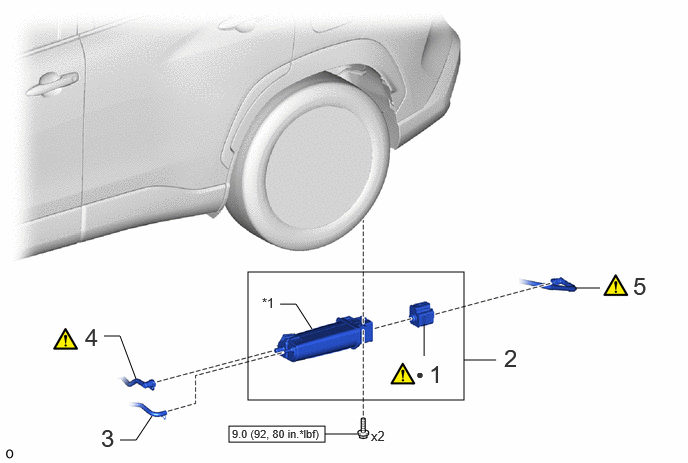

COMPONENTS (INSTALLATION)
A545618N01
2.583,2.833 4.833,4.167 2.25,1.333 2.385,4.438 3.385,4.604 1,0.167 6,3 6.25,3 false 4.833,3.75 5.167,3.75 false 4.417,3.375 4.417,3.708 false 1.417,3.948 1.25,3.5 1.25,3.5 1.083,3.5 false 1.583,4.333 1.417,4.583 1.417,4.583 1.25,4.583 false 3.25,3.427 3.083,3.167 3.083,3.167 2.917,3.167 false 3.385,4.521 3.719,4.521 false 0.885,3.365 1.167,3.719 0.281,0.354 18 false 4 1.052,4.417 1.333,4.771 0.281,0.354 18 false 3 2.729,3.073 3.031,3.26 0.302,0.188 10 false *1 4.469,3.75 4.75,4.104 0.281,0.354 18 false 1 4.333,3.813 4.635,4 0.302,0.188 10 false ● 6.594,2.833 6.875,3.188 0.281,0.354 18 false 5 5.25,3.583 5.531,3.938 0.281,0.354 18 false 2 3.865,4.458 4.167,4.646 0.302,0.188 10 false x2 2.417,4.448 3.458,4.646 1.042,0.198 8 false 9.0 (92, 80 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 LEAK DETECTION PUMP SUB-ASSEMBLY 77740R (Click here) - -
2 CANISTER (CHARCOAL CANISTER ASSEMBLY) 77740 - - -
3 FUEL TUBE ASSEMBLY - - - -
4 CHARCOAL CANISTER FUEL HOSE 77740B (Click here) - -
5 FUEL TANK VENT HOSE SUB-ASSEMBLY 77404 (Click here) - -

*1 CHARCOAL CANISTER SUB-ASSEMBLY - -
V100146

N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

PROCEDURE

Hide 77740R 1.INSTALL LEAK DETECTION PUMP SUB-ASSEMBLY

Z101186

HINT:

Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.



a.
A533163N01
0.396,0.021 0.677,0.375 0.281,0.354 18 false i

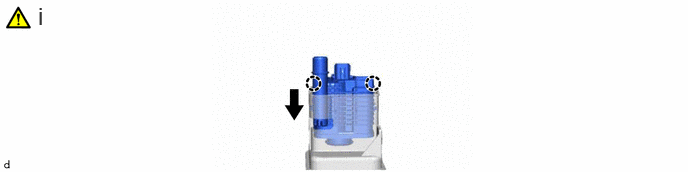

i.

Engage the 2 claws to install a new leak detection pump sub-assembly to the charcoal canister sub-assembly.

NOTICE:
·

Do not allow foreign matter such as grease, oil or water to adhere to the O-ring.

·

Ensure that the claws are engaged properly.





Hide 77740 2.INSTALL CANISTER (CHARCOAL CANISTER ASSEMBLY)

Torque:
9.0 N*m (92 kgf*cm, 80 in.*lbf)

Hide 3.CONNECT FUEL TUBE ASSEMBLY

Hide 77740B 4.CONNECT CHARCOAL CANISTER FUEL HOSE

a.
A545619C01
5.229,0.865 5.5,0.865 true 5.51,0.76 5.74,0.938 0.229,0.177 10 false *a 0.385,0.01 0.667,0.365 0.281,0.354 18 false i
*a Retainer - -
V100135

Push - -

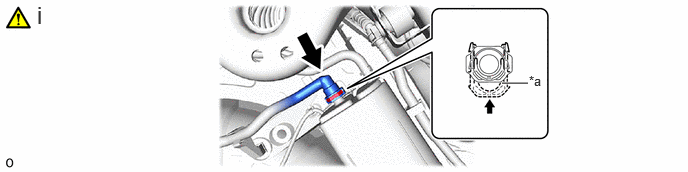

i.

Push the charcoal canister fuel hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL SYSTEM>PRECAUTION

NOTICE:
·

Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.

·

After connecting the charcoal canister fuel hose, check that the charcoal canister fuel hose is securely connected by pulling on the tube connector.





Hide 77404 5.CONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY

a.
A545620C01
6.667,1.01 6.844,1.01 false 6.865,0.917 7.083,1.104 0.219,0.188 10 false *a 0.115,0.052 0.344,0.385 0.229,0.333 18 false i 3.385,0.031 3.615,0.365 0.229,0.333 18 false ii
*a Retainer - -
V100135

Push - -

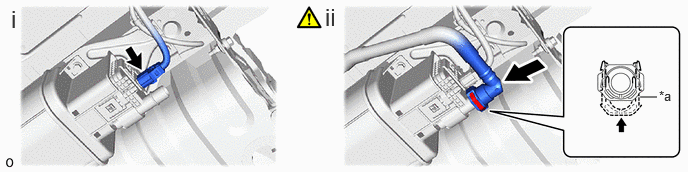

i.

Connect the leak detection pump sub-assembly connector.


ii.

Push in the fuel tank vent hose sub-assembly onto the leak detection pump sub-assembly and push in the retainer to engage the lock claws.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL SYSTEM>PRECAUTION

NOTICE:
·

Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (leak detection pump sub-assembly) before performing this work.

·

After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the tube connector.
