M20F-FXS, M20G-FXS FUEL  FUEL MAIN VALVE  REMOVAL


CAUTION / NOTICE / HINT

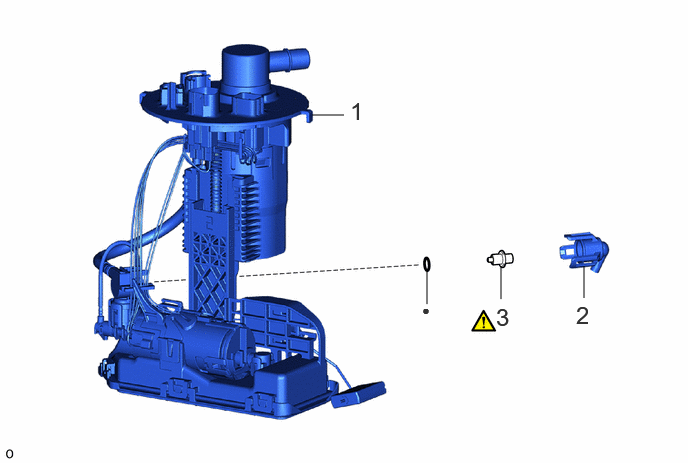

COMPONENTS (REMOVAL)
A545571N01
3.25,1.198 3.583,1.198 false 4.448,2.833 4.448,3.167 false 5.219,2.781 5.219,3.115 false 6.083,2.771 6.083,3.104 false 3.646,1.01 3.927,1.365 0.281,0.354 18 false 1 5.167,3.156 5.448,3.51 0.281,0.354 18 false 3 6,3.135 6.281,3.49 0.281,0.354 18 false 2 4.396,3.146 4.594,3.354 0.198,0.208 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY 77020A - - -
2 NO. 2 FUEL SUCTION SUPPORT 77175 - - -
3 FUEL MAIN VALVE ASSEMBLY 23070 (Click here) - -

● Non-reusable part - -

CAUTION / NOTICE / HINT

CAUTION:
·
A360563

Never perform work on fuel system components near any possible ignition sources.

·

Vaporized fuel could ignite, resulting in a serious accident.


·
A360564

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.

·

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.



HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 77175 2.REMOVE NO. 2 FUEL SUCTION SUPPORT

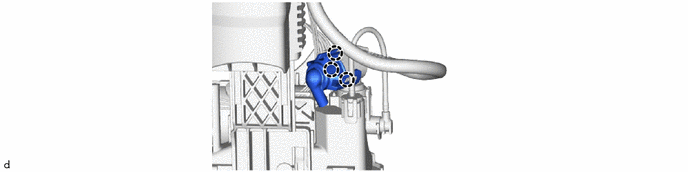

a.
A503825


Hide 23070 3.REMOVE FUEL MAIN VALVE ASSEMBLY

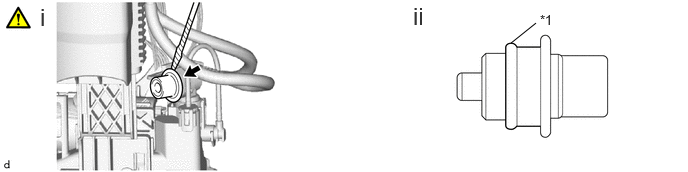

a.
A503826C01
5.323,0.448 5.583,0.24 false 5.625,0.125 5.938,0.281 0.313,0.156 10 false *1 0.417,0.031 0.698,0.385 0.281,0.354 18 false i 4.302,0.021 4.583,0.375 0.281,0.354 18 false ii
*1 O-ring - -


i.

Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel suction tube with pump and gauge assembly.

NOTICE:
·

Pull out the fuel main valve assembly carefully because the O-ring is firmly installed between the fuel main valve assembly and fuel suction tube with pump and gauge assembly.


·

Do not damage the fuel suction tube with pump and gauge assembly.




ii.

Remove the O-ring from the fuel main valve assembly.
