RM38T0EC _51 Engine / Hybrid System _144959 M20F-FXS, M20G-FXS FUEL _0604272 FUEL PUMP ECU A

M20F-FXS, M20G-FXS FUEL  FUEL PUMP ECU  REMOVAL


CAUTION / NOTICE / HINT

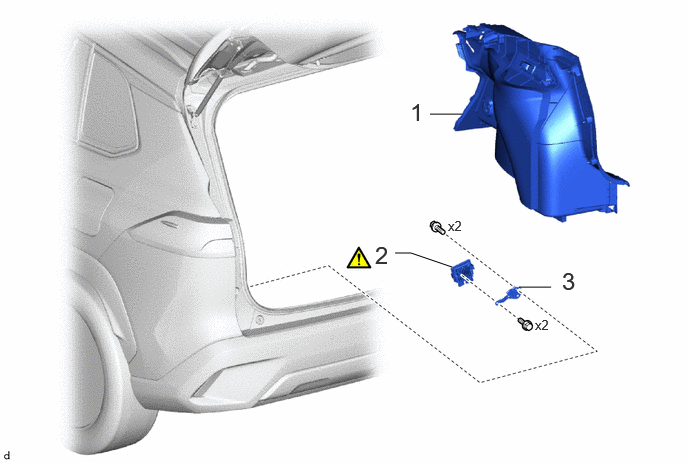

COMPONENTS (REMOVAL)
A482512N01
4.479,1.188 4.813,1.188 false 5.406,2.99 5.74,2.99 false 4.115,2.635 4.281,2.635 4.281,2.635 4.708,2.781 false 4.271,1.021 4.552,1.375 0.281,0.354 18 false 1 3.906,2.51 4.188,2.865 0.281,0.354 18 false 2 5.854,2.781 6.135,3.135 0.281,0.354 18 false 3 4.667,2.271 4.979,2.469 0.313,0.198 10 false x2 5.573,3.302 5.885,3.5 0.313,0.198 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 DECK TRIM SIDE PANEL ASSEMBLY 64740C - - -
2 FUEL PUMP CONTROL ECU 89571 (Click here) - -
3 FUEL PUMP CONTROL ECU BRACKET 89573 - - -

PROCEDURE

Hide 64740C 1.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

a.

Use the same procedure as for the RH side.

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL

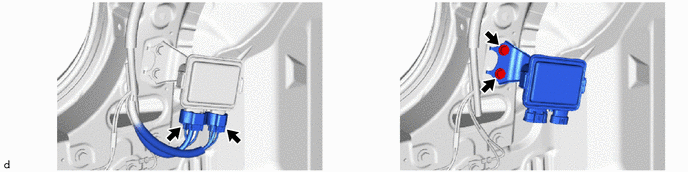

Hide 89571 2.REMOVE FUEL PUMP CONTROL ECU

Z101186

NOTICE:
·

Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

·

If a malfunction such as pump lock occurs and the fuel pump is damaged, excessive current may be continuously applied to the fuel pump control ECU, damaging its internal parts. Make sure to replace the fuel pump control ECU at the same time when replacing the fuel pump.




a.
A482513


Hide 89573 3.REMOVE FUEL PUMP CONTROL ECU BRACKET

a.
A482514
