RM38T0EC _51 Engine / Hybrid System _144959 M20F-FXS, M20G-FXS FUEL _0604271 FUEL SENDER GAUGE ASSEMBLY A

M20F-FXS, M20G-FXS FUEL  FUEL SENDER GAUGE ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

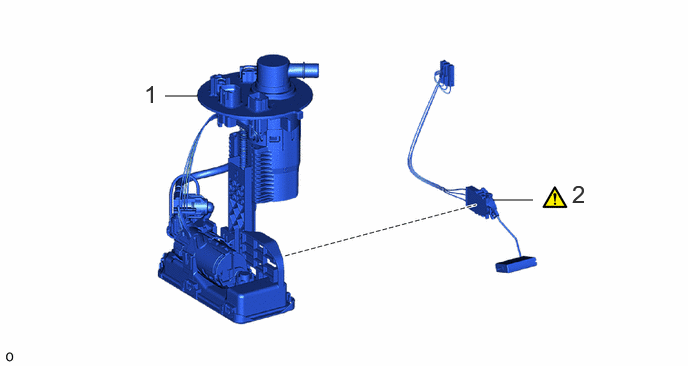

A545598N01
1.719,1 2.052,1 false 5.135,2.083 5.552,2.083 false 1.5,0.833 1.781,1.188 0.281,0.354 18 false 1 5.958,1.875 6.24,2.229 0.281,0.354 18 false 2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY 77020A - - -
2 FUEL SENDER GAUGE ASSEMBLY 83320 (Click here) - -

CAUTION / NOTICE / HINT

CAUTION:
·
A360563

Never perform work on fuel system components near any possible ignition sources.

·

Vaporized fuel could ignite, resulting in a serious accident.


·
A360564

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.

·

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.



NOTICE:

After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.


HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 83320 2.REMOVE FUEL SENDER GAUGE ASSEMBLY

a.

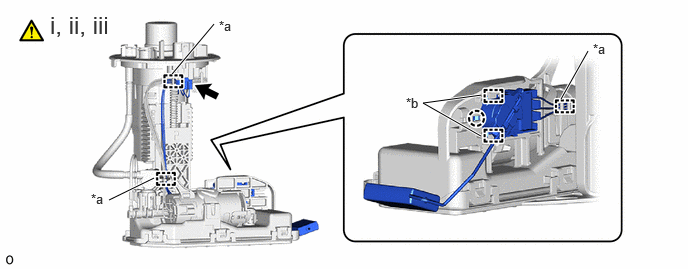

A545599C01
5.01,1.417 4.406,1.073 4.406,1.073 5.01,0.99 true 5.844,1.031 6.125,0.531 true 1.792,0.771 2.229,0.25 true 1.135,2.083 1.604,1.854 true 0.521,0.115 1.281,0.417 0.76,0.302 18 false i, ii, iii 2.281,0.188 2.594,0.385 0.313,0.198 10 false *a 0.948,1.99 1.26,2.188 0.313,0.198 10 false *a 6.177,0.427 6.49,0.625 0.313,0.198 10 false *a 4.229,0.99 4.542,1.188 0.313,0.198 10 false *b
*a Clamp *b Guide


i.

Disconnect the fuel sender gauge assembly connector.


ii.

Disengage the 3 clamps to disconnect the wire harness from the fuel suction tube with pump and gauge assembly.

NOTICE:
·

Do not damage the wire harness.

·

When disengaging each wire harness from the clamp, disengage one wire at a time.




iii.

Disengage the claw and 2 guides to remove the fuel sender gauge assembly from the fuel suction tube with pump and gauge assembly.

NOTICE:

Be careful not to bend the arm of the fuel sender gauge assembly.
