M20F-FXS, M20G-FXS FUEL FUEL INJECTOR(for Direct Injection) REMOVAL
CAUTION / NOTICE / HINT

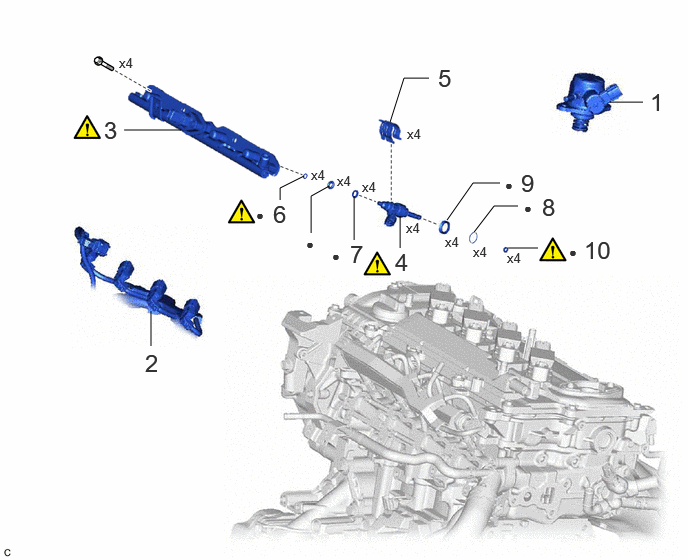

| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | FUEL(ENGINE ROOM SIDE) PUMP ASSEMBLY | 23100X | - | - | - |
| 2 | WIRE HARNESS | - | - | - | - |
| 3 | FUEL DELIVERY PIPE | 23814B | ( 202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0034,)
|
- | - |
| 4 | DIRECT FUEL INJECTOR ASSEMBLY | 23250E | (202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0033,)
|
- | - |
| 5 | NOZZLE HOLDER CLAMP | 23695A | - | - | - |
| 6 | NO. 3 FUEL INJECTOR BACK-UP RING | 23258 | (202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0031,)
|
- | - |
| 7 | NO. 1 FUEL INJECTOR BACK-UP RING | 23256 | - | - | - |
| 8 | C-RING | - | - | - | - |
| 9 | INJECTOR VIBRATION INSULATOR | 23291A | - | - | - |
| 10 | FUEL INJECTOR SEAL | 23255A | (202307,999999,_51,_144959,_0604267,RM100000002BTTD_01_0036,)
|
- | - |
| ● | Non-reusable part | - | - |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during direct fuel injector assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
·
Replacement of direct fuel injector assembly ·
Replacement of fuel pump assembly |
Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202307,999999,_51,_144956,_0604911,RM100000002BWPD,)
|
- CAUTION:
- ·
Never perform work on fuel system components near any possible ignition sources.
·Vaporized fuel could ignite, resulting in a serious accident.
- ·
Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.
·Sparks could cause vaporized fuel to ignite, resulting in a serious accident.
·
To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.
- NOTICE:
- ·
After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.
·This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
- HINT:
-
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- ·
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front Camera System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. ( 202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
·Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system Fully close the back door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the back door is closed.
( 202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
PROCEDURE
23100X
1.REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

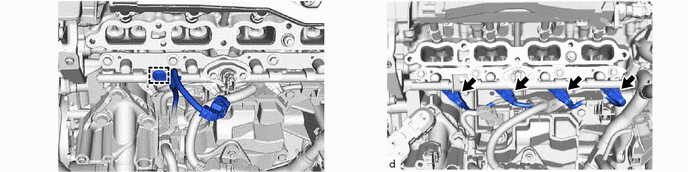

2.DISCONNECT WIRE HARNESS
23814B

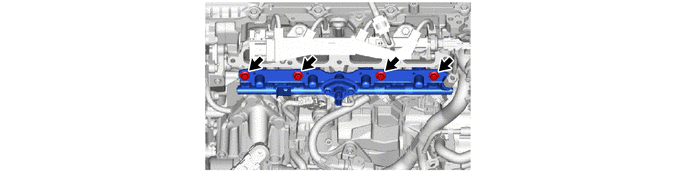

3.REMOVE FUEL DELIVERY PIPE
|
|
|
23250E
4.REMOVE DIRECT FUEL INJECTOR ASSEMBLY

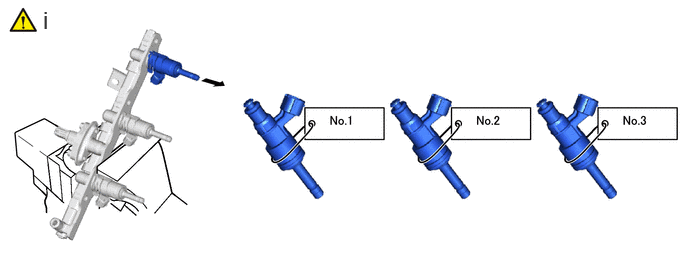

Secure the fuel delivery pipe in a vise between aluminum plates and pull out the 3 direct fuel injector assemblies.
- NOTICE:
- ·
Pull and remove each direct fuel injector assembly in a straight line to avoid damaging the seal surface of the fuel delivery pipe O-ring.
·After removing the direct fuel injector assemblies, remove any O-rings, No. 1 fuel injector back-up rings and No. 3 fuel injector back-up rings remaining on the fuel delivery pipe side.
·Attach a tag or label with the corresponding cylinder number to each direct fuel injector assembly so that they can be installed to their original locations.
·Cover the tip of each direct fuel injector assembly to prevent it from being damaged.
23695A
5.REMOVE NOZZLE HOLDER CLAMP
23258
6.REMOVE NO. 3 FUEL INJECTOR BACK-UP RING
|
|
|
23256
7.REMOVE NO. 1 FUEL INJECTOR BACK-UP RING
8.REMOVE C-RING
23291A

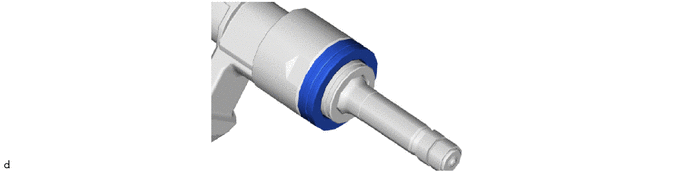

9.REMOVE INJECTOR VIBRATION INSULATOR
23255A
10.REMOVE FUEL INJECTOR SEAL

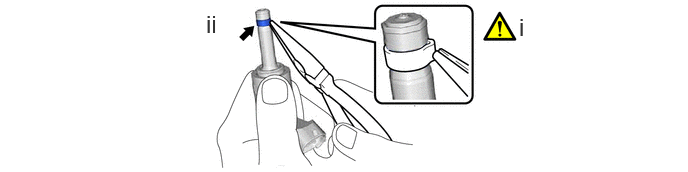

Using the tip of needle nose pliers, pinch and pull the fuel injector seal at several points to stretch it.
- NOTICE:
- ·
Excessively pinching the fuel injector seal may damage the groove of the fuel injector assembly.
·If a fuel injector assembly is dropped or the tip of the fuel injector assembly is struck, replace it with a new one.
Remove the fuel injector seal from each fuel injector assembly.
