M20F-FXS, M20G-FXS FUEL  FUEL INJECTOR(for Port Injection)  INSPECTION


PROCEDURE

Hide 23250F 1.INSPECT PORT FUEL INJECTOR ASSEMBLY

a.

Check the resistance.

i.
A401655C01
0.104,0.063 0.417,0.219 0.313,0.156 10 false *a
*a Component without harness connected
(Port Fuel Injector Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 20°C (68°F) 11.6 to 12.4 Ω


If the result is not as specified, replace the port fuel injector assembly.



b.

Check the operation.

CAUTION:

Perform the inspection in a well-ventilated area.

Do not perform the inspection near an open flame.


i.
A522530C03
0,0 0,0 false
V100135

Open
V100136

Pull

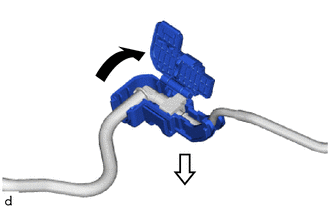

Open the cover of the No. 1 fuel pipe clamp and remove the No. 1 fuel pipe clamp from the fuel tube connector.


ii.
A522531

Disconnect the fuel tube sub-assembly.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL SYSTEM>PRECAUTION


iii.
A264971C19
0.5,1.656 0.729,1.885 0.729,1.885 0.833,1.885 false 0.854,0.906 1.146,0.615 1.146,0.615 1.26,0.615 false 1.99,1.292 2.292,1.594 2.292,1.594 2.417,1.594 false 2.646,0.698 2.948,0.396 2.948,0.396 3.063,0.396 false 0.875,1.802 1.156,2.042 0.281,0.24 10 false *a 1.333,0.521 1.656,0.781 0.323,0.26 10 false *b 2.479,1.51 2.802,1.76 0.323,0.25 10 false *c 3.135,0.292 3.354,0.542 0.219,0.25 10 false *d
*a SST (Hose)
*b SST (Hose Band)
*c SST (Fuel Tube Connector)
*d Fuel Pipe (Vehicle Side)


Connect SST (fuel tube connector) to SST (hose) with SST (hose band), and then connect them to the fuel pipe (vehicle side).

SST
09268-31015  (09268-41700, 95336-08070)
09268-00010  (09268-00030)

NOTICE:

Make sure the SST (fuel tube connector) O-rings are not damaged and are free of foreign matter as they are used to seal the connections between the fuel tube connector and fuel pipe.



iv.

Apply a light coat of gasoline to a new O-ring, and then install the O-ring to the port fuel injector assembly.


v.
A333797C03
1.281,0.135 1.563,0.135 false 1.906,0.292 2.188,0.292 false 1.26,0.813 1.542,0.813 false 2.563,1.146 2.844,1.146 false 1.135,1.24 1.573,1.24 false 1.281,2.052 1.563,2.052 false 0.958,1.167 1.271,1.323 0.313,0.156 10 false *1 1.083,0.729 1.396,0.885 0.313,0.156 10 false *a 2.25,0.219 2.563,0.375 0.313,0.156 10 false *b 2.896,1.063 3.208,1.219 0.313,0.156 10 false *c 1.115,0.063 1.427,0.219 0.313,0.156 10 false *d 1.104,1.969 1.417,2.125 0.313,0.156 10 false *e
*1 O-ring
*a SST (Adapter)
*b SST (Hose Band)
*c SST (Clamp)
*d SST (Hose)
*e Vinyl Tube


Connect SST (adapter) and SST (hose) to the port fuel injector assembly, and hold the port fuel injector assembly and union with SST (clamp).

SST
09268-31015  (09268-41410, 09268-41600, 09268-41700, 95336-08070)


vi.

Install a vinyl tube to the port fuel injector assembly.

CAUTION:

Install a suitable vinyl tube to the port fuel injector assembly to prevent fuel from spraying.



vii.
A333798C05
1.427,1.615 1.667,2.052 1.667,2.052 1.813,2.052 false 1.583,1.323 2.198,1.75 2.198,1.75 2.417,1.75 true 1.667,1.542 2.313,2 2.313,2 2.531,2 true 0.708,1.927 0.927,1.927 0.927,1.927 0.927,1.708 true 2.5,1.656 2.813,1.813 0.313,0.156 10 false *a 1.865,1.969 2.188,2.167 0.323,0.198 10 false *b 2.635,1.917 2.948,2.073 0.313,0.156 10 false *c 0.49,1.854 0.802,2.01 0.313,0.156 10 false *d

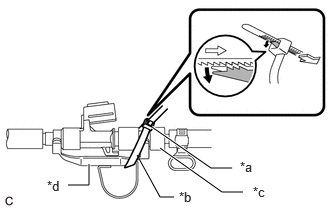

*a Lock
*b SST (Tie Band)
*c SST (Adapter)
*d SST (Clamp)


Tie SST (clamp) and SST (adapter) together with SST (tie band) as shown in the illustration.

SST
09268-31015  (09268-41800)

NOTICE:
·

As SST (tie band) does not completely prevent SST (clamp) from becoming loose, do not subject the parts to any impacts while using them.

·

Before using SST (tie band), make sure that there is no wear, damage or cracks. If there are any abnormalities, replace SST (tie band).



HINT:

When removing SST (tie band), disengage the lock.



viii.

Check that SST (clamp) and SST (adapter) cannot be easily separated.


ix.

Set the port fuel injector assembly into a graduated cylinder.


x.

Connect the GTS to the DLC3.


xi.

Turn the power switch on (IG).

NOTICE:

Do not start the engine.



xii.

Turn the GTS on.


xiii.

Enter the following menus: Powertrain / Engine / Active Test / Activate the Circuit Relay.

Powertrain > Engine > Active Test
Tester Display
Activate the Circuit Relay (Brushless)
50004 372 40

xiv.
A333799C01
2.073,0.885 2.073,0.427 false 2,0.917 2.313,1.073 0.313,0.156 10 false *a
*a SST (EFI Inspection Wire K)


Connect SST (EFI inspection wire K) to the port fuel injector assembly and auxiliary battery for 15 seconds, and measure the injection volume with the graduated cylinder. Test each port fuel injector assembly 2 or 3 times.

SST
09842-30110

Standard Injection Volume:
Auxiliary Battery Connection Condition Specified Condition
Positive (+) auxiliary battery terminal - Negative (-) auxiliary battery terminal Per 15 seconds 67 to 81 cc (4.1 to 4.9 cu.in.)


Difference between Each Port Fuel Injector Assembly:

14 cc (0.9 cu.in.) or less


NOTICE:
·

Make sure that SST (EFI inspection wire K) is securely connected.

·

Always switch the voltage on and off at the auxiliary battery side, not the port fuel injector assembly side.



If the result is not as specified, replace the port fuel injector assembly.



c.

Check for leaks.

i.

Disconnect SST (EFI inspection wire K) from the auxiliary battery and check for fuel leaks from the port fuel injector assembly.

Standard Fuel Drop:

1 drop or less per 20 minutes


If the result is not as specified, replace the port fuel injector assembly.


ii.

Connect the fuel tube sub-assembly.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (FUEL)>FUEL SYSTEM>PRECAUTION


iii.

Install the No. 1 fuel pipe clamp to the fuel tube connector and close the cover of the No. 1 fuel pipe clamp.
