RM38T0EC _51 Engine / Hybrid System _144957 HYBRID / BATTERY CONTROL _0604242 SERVICE PLUG GRIP A

HYBRID / BATTERY CONTROL SERVICE PLUG GRIP INSTALLATION

CAUTION / NOTICE / HINT

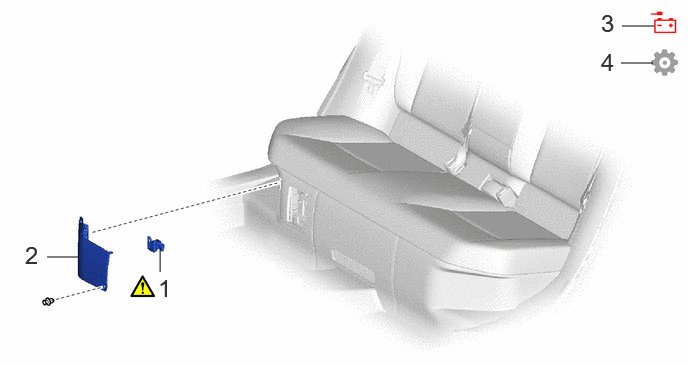

COMPONENTS (INSTALLATION)

0.823,2.677 0.49,2.677 false 1.667,2.833 1.667,2.583 false 6.813,0.271 6.479,0.271 false 6.802,0.656 6.469,0.656 false 0.26,2.51 0.542,2.865 0.281,0.354 18 false 2 1.646,2.854 1.927,3.208 0.281,0.354 18 false 1 6.26,0.094 6.542,0.448 0.281,0.354 18 false 3 6.26,0.5 6.542,0.854 0.281,0.354 18 false 4

Procedure		Part Name Code
1	SERVICE PLUG GRIP	G3834	(202307,999999,_51,_144957,_0604242,RM100000002BTR8_01_0009,)	-	-
2	BATTERY SERVICE HOLE COVER	-	-	-	-
3	NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
4	PERFORM INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	(202307,999999,_51,_144957,_0604242,RM100000002BTR8_01_0042,)

PROCEDURE

Hide Display G3834 1.INSTALL SERVICE PLUG GRIP

CAUTION:: Be sure to wear insulated gloves.

NOTICE:: Before installing the service plug grip, check that no parts or tools remain and that the high voltage terminals and connectors are connected securely.

0.167,0.083 0.448,0.438 0.281,0.354 18 false i

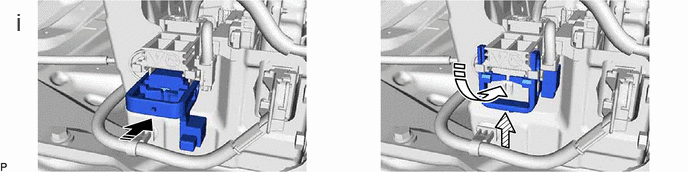

	Install in this Direction (1)		Install in this Direction (2)
	Install in this Direction (3)	-	-

While wearing insulated gloves, and temporarily install the service plug grip as indicated by the arrow (1) shown in the illustration.

Hide Display 2.INSTALL BATTERY SERVICE HOLE COVER

Hide Display 3.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_104397,_0604345,RM100000002BTXB,

Hide Display 4.PERFORM INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202307,999999,_V1,_106911,_0485800,RM100000002CEKZ,
