HYBRID / BATTERY CONTROL  SUB RADIATOR  REMOVAL


CAUTION / NOTICE / HINT

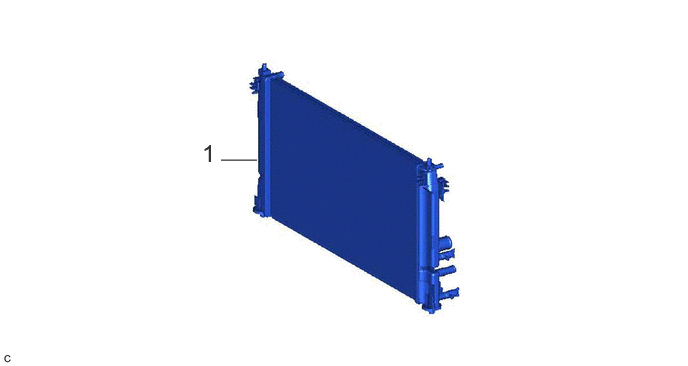

COMPONENTS(REMOVAL)
A371713N01
2.302,1.667 2.677,1.667 false 2.104,1.448 2.385,1.802 0.281,0.354 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 RADIATOR ASSEMBLY 16400 - - -

PROCEDURE

Hide 16400 1.REMOVE RADIATOR ASSEMBLY

Z101186

HINT:

The radiator (for inverter coolant) is part of the radiator (for Engine). If the radiator (for inverter coolant) needs to be replaced, replace the radiator assembly.



a.

Remove the radiator assembly.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (COOLING)>RADIATOR>REMOVAL
