HYBRID / BATTERY CONTROL  HYBRID BATTERY SYSTEM  P0A8196  Hybrid/EV Battery Cooling Fan 1 Component Internal Failure  P0A8198  Hybrid/EV Battery Cooling Fan 1 Component or System Over Temperature


DESCRIPTION

Refer to the description for DTC P0A8111.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>P0A8111

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Warning Indicate Note
P0A8196 Hybrid/EV Battery Cooling Fan 1 Component Internal Failure The battery cooling blower assembly is malfunctioning and the actual speed is not within the specified range of the target speed calculated by the ECU.*
*: This DTC is not stored when "Hybrid/EV Battery Cooling Fan 1 Frequency" is excessively low or high.
(2 trip detection logic)
·

Wire harness or connector

·

Battery cooling blower assembly

·

Battery ECU assembly

·

No. 1 HV battery intake filter

·

No. 1 hybrid battery intake duct


Comes on Master Warning:
Comes on 		SAE Code: P0A82
P0A8198 Hybrid/EV Battery Cooling Fan 1 Component or System Over Temperature The HV battery temperature is high and the battery cooling blower assembly is malfunctioning and the actual speed is not within the specified range of the target speed calculated by the ECU.*
*: This DTC is not stored when "Hybrid/EV Battery Cooling Fan 1 Frequency" is excessively low or high.
(1 trip detection logic)
·

Wire harness or connector

·

Battery cooling blower assembly

·

Battery ECU assembly

·

No. 1 HV battery intake filter

·

No. 1 hybrid battery intake duct


Comes on Master Warning:
Comes on 		SAE Code: P0A82

HINT:

"Hybrid/EV Battery Cooling Fan 1 Frequency" is detected when the battery cooling blower assembly is operating and its value changes in proportion to the battery cooling blower assembly rotation speed.


MONITOR DESCRIPTION

If the battery ECU assembly detects that the speed of the battery cooling blower assembly is outside the normal operating range, it will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs P0A82 (INF P0A8196): Hybrid/EV Battery Cooling Fan 1 Component Internal Failure
P0A82 (INF P0A8198): Hybrid/EV Battery Cooling Fan 1 Component or System Over Temperature
Required sensors/components Battery cooling blower assembly
Frequency of operation Continuous
Duration TMC's intellectual property
MIL operation 1 driving cycle / 2 driving cycles
Sequence of operation None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not stored TMC's intellectual property
Other conditions belong to TMC's intellectual property -

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property -

COMPONENT OPERATING RANGE

Battery ECU assembly DTC P0A82 (INF P0A8196) is not detected
DTC P0A82 (INF P0A8198) is not detected

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>UTILITY

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>DTC CHECK / CLEAR



1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for 2 minutes or more.

5.

Turn the ignition switch to ON (READY) and turn the GTS on.

6.

Enter the following menus: Powertrain / HV Battery / Active Test / Control the Hybrid/EV Battery Cooling Fan.[*1]

7.

Operate the battery cooling blower assembly in each fan mode, 1 through 6, for 60 seconds or more.[*2]

HINT:
·

Operation of the battery cooling blower assembly can be confirmed by checking if air is sucked into the air intake port of the intake duct.

·

[*1] to [*2]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.



8.

Enter the following menus: Powertrain / HV Battery / Utility / All Readiness.

9.

Check the DTC judgment result.

HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE, perform the normal judgment procedure again.




CAUTION / NOTICE / HINT

CAUTION:

Refer to the precautions before inspecting high voltage circuit.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>PRECAUTION


NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART




PROCEDURE

1.CHECK DTC OUTPUT (HV BATTERY, HYBRID CONTROL)
a.

Check for DTCs.

Powertrain > HV Battery > Trouble Codes
50001 398
Powertrain > Hybrid Control > Trouble Codes
50001 397
Result:
Result Proceed to
P0A8196 or P0A8198 only is output, or DTCs except the ones in the table below are also output. A
DTCs of hybrid battery system in the table below are output. B
DTCs of hybrid control system in the table below are output. C


System Relevant DTC
Hybrid battery system P060A47 Hybrid/EV Battery Energy Control Module Monitoring Processor Watchdog / Safety MCU Failure
P060B49 Hybrid/EV Battery Energy Control Module A/D Processing Internal Electronic Failure
P060687 Hybrid/EV Battery Energy Control Module Processor to Monitoring Processor Missing Message
Hybrid control system P0A1F94 Hybrid/EV Battery Energy Control Module Unexpected Operation


b.

Turn the ignition switch off.



A

2.CHECK DUCT AND BLOWER

B

GO TO DTC CHART (HYBRID BATTERY SYSTEM)

C

GO TO DTC CHART (HYBRID CONTROL SYSTEM)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>DIAGNOSTIC TROUBLE CODE CHART


2.CHECK DUCT AND BLOWER
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.

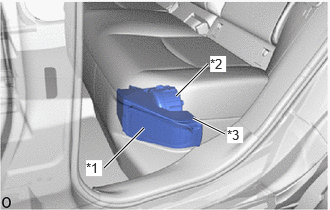

A517710C01
1.083,1.75 1.5,1.333 true 1.833,1 2.167,0.667 true 2.01,1.229 2.344,1.396 true 0.896,1.667 1.063,1.833 0.167,0.167 10 true *1 2.188,0.583 2.354,0.75 0.167,0.167 10 true *2 2.365,1.323 2.531,1.49 0.167,0.167 10 true *3
*1 No. 1 HV Battery Intake Filter
*2 Battery Cooling Blower Assembly
*3 No. 1 Hybrid Battery Intake Duct


Check that the No. 1 HV battery intake filter, No. 1 hybrid battery intake duct and battery cooling blower assembly blower are not disconnected, damaged, or clogged with foreign matter.

OK:

The No. 1 HV battery intake filter, No. 1 hybrid battery intake duct and battery cooling blower assembly blower are not disconnected, damaged, or clogged with foreign matter.



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - BATTERY COOLING BLOWER ASSEMBLY)

NG

CORRECT THE PROBLEM

3.CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - BATTERY COOLING BLOWER ASSEMBLY)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>P0A8111

Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - BATTERY COOLING BLOWER ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - BATTERY COOLING BLOWER ASSEMBLY)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>P0A8111

Result:
Proceed to
OK
NG



OK

5.CHECK BATTERY ECU ASSEMBLY (GROUND SHORT CHECK)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK BATTERY ECU ASSEMBLY (GROUND SHORT CHECK)
a.

Remove the battery ECU assembly.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU>REMOVAL


b.

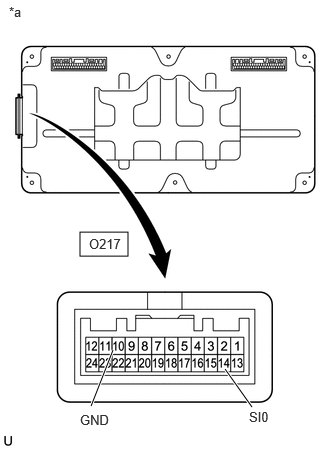

A512960C25
0.833,2.417 1.333,2.667 0.5,0.25 0.948,4.229 1.177,3.646 true 2.625,4.24 2.344,3.844 true 0.094,0.042 0.552,0.24 0.458,0.198 10 false *a 0.833,4.292 1.292,4.49 0.458,0.198 10 false GND 0.927,2.458 1.385,2.656 0.458,0.198 10 false O217 2.594,4.26 3.052,4.458 0.458,0.198 10 false SI0
*a Component without harness connected
(Battery ECU Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O217-14 (SI0) - O217-10 (GND) Ignition switch off 10 kΩ or higher



c.

Install the battery ECU assembly.


Result:
Proceed to
OK
NG



OK

6.READ VALUE USING GTS (HYBRID/EV BATTERY COOLING FAN 1 FREQUENCY)

NG

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU>REMOVAL


6.READ VALUE USING GTS (HYBRID/EV BATTERY COOLING FAN 1 FREQUENCY)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>P0A8111

Result:
Result Proceed to
Both of the value in the Data List (Hybrid/EV Battery Cooling Fan 1 Frequency) and the actual measured value at the battery ECU assembly connector are 0 Hz. A
Other than above B



A

7.CHECK BATTERY ECU ASSEMBLY

B

8.CHECK BATTERY ECU ASSEMBLY (FREQUENCY)
