RM38T0EC _51 Engine / Hybrid System _144957 HYBRID / BATTERY CONTROL _0604243 BATTERY BLOWER A

HYBRID / BATTERY CONTROL BATTERY BLOWER REMOVAL

CAUTION / NOTICE / HINT

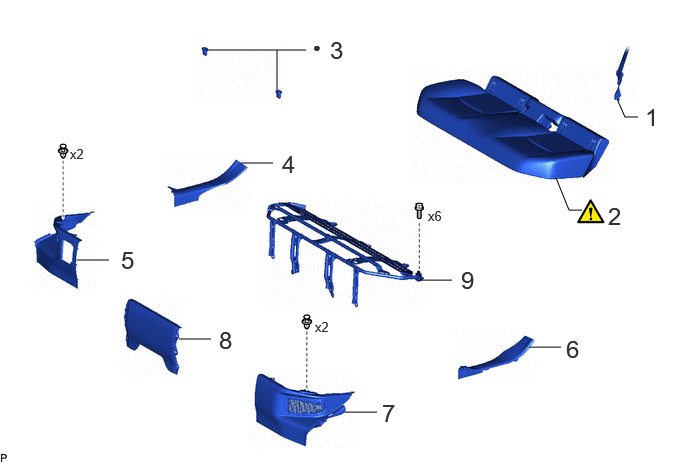

COMPONENTS (REMOVAL)

2.146,0.521 3.188,0.521 false 2.885,0.938 2.885,0.521 false 2.51,1.698 2.844,1.698 false 4.375,2.917 4.708,2.917 false 5.51,3.615 5.844,3.615 false 5.792,1.854 5.927,2.188 5.927,2.188 6.063,2.188 false 3.594,4.292 3.927,4.292 false 1.865,3.531 2.198,3.531 false 0.802,2.708 1.135,2.708 false 6.427,1.031 6.51,1.219 6.51,1.219 6.646,1.219 false 3.281,3.323 3.594,3.521 0.313,0.198 10 false x2 0.729,1.521 1.042,1.719 0.313,0.198 10 false x2 4.458,2.167 4.771,2.365 0.313,0.198 10 false x6 6.719,1.073 7.063,1.479 0.344,0.406 18 false 1 6.333,2.104 6.677,2.51 0.344,0.406 18 false 2 3.438,0.375 3.781,0.781 0.344,0.406 18 false 3 2.938,1.563 3.281,1.969 0.344,0.406 18 false 4 1.26,2.563 1.604,2.969 0.344,0.406 18 false 5 3.979,4.156 4.323,4.563 0.344,0.406 18 false 7 5.896,3.49 6.24,3.896 0.344,0.406 18 false 6 2.281,3.396 2.625,3.802 0.344,0.406 18 false 8 4.802,2.771 5.146,3.177 0.344,0.406 18 false 9 3.26,0.406 3.479,0.667 0.219,0.26 10 false ●

Procedure		Part Name Code
1	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C	-	-	-
2	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	(202307,999999,_51,_144957,_0604243,RM100000002BTR9_02_0129,)	-	-
3	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
4	REAR DOOR SCUFF PLATE RH	67917A	-	-	-
5	REAR UNDER SIDE COVER RH	76973F	-	-	-
6	REAR DOOR SCUFF PLATE LH	67918A	-	-	-
7	REAR UNDER SIDE COVER LH	76974F	-	-	-
8	REAR UNDER COVER	76971G	-	-	-
9	REAR SEAT CUSHION LEG SUB-ASSEMBLY	71033	-	-	-

●

Non-reusable part

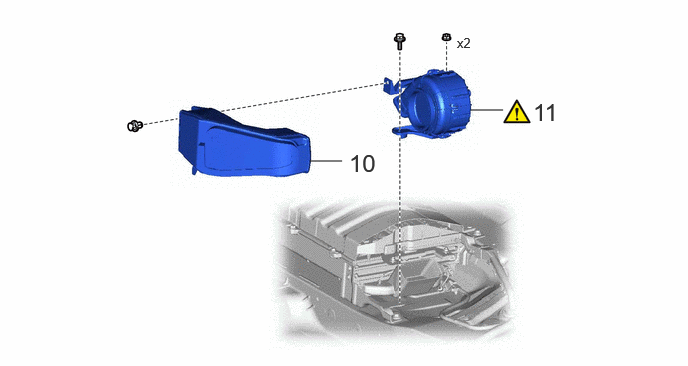

4.906,1.146 5.24,1.146 false 3.229,1.677 3.563,1.677 false 5.552,1.021 6.104,1.375 0.552,0.354 18 false 11 3.635,1.552 4.188,1.906 0.552,0.354 18 false 10 4.76,0.365 5.313,0.719 0.552,0.354 10 false x2

Procedure		Part Name Code
10	NO. 1 EV BATTERY INTAKE DUCT	G92D1A	-	-	-
11	BATTERY COOLING BLOWER ASSEMBLY	G9230	-	-	-

PROCEDURE

Hide Display 73350C 1.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>REMOVAL202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0030,

Hide Display 2.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

Click here(

202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0022,)

Hide Display 72693 3.REMOVE REAR SEAT CUSHION LOCK HOOK

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>REMOVAL202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0001,

Hide Display 67917A 4.REMOVE REAR DOOR SCUFF PLATE RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0220,

Hide Display 76973E 5.REMOVE REAR UNDER SIDE COVER RH

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HV BATTERY>REMOVAL202307,999999,_51,_144957,_0604247,RM100000002BTRN_02_0042,

Hide Display 67918A 6.REMOVE REAR DOOR SCUFF PLATE LH

Use the same procedure as for the RH side.

Hide Display 76974E 7.REMOVE REAR UNDER SIDE COVER LH

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HV BATTERY>REMOVAL202307,999999,_51,_144957,_0604247,RM100000002BTRN_02_0040,

Hide Display 76971F 8.REMOVE REAR UNDER COVER

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HV BATTERY>REMOVAL202307,999999,_51,_144957,_0604247,RM100000002BTRN_02_0027,

Hide Display 71033 9.REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HV BATTERY>REMOVAL202307,999999,_51,_144957,_0604247,RM100000002BTRN_02_0026,

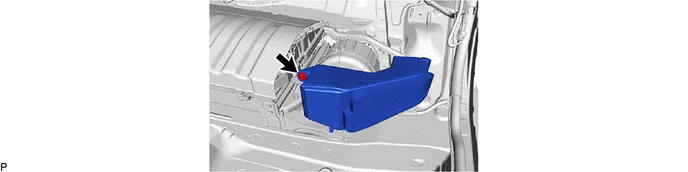

Hide Display G92D1A 10.REMOVE NO. 1 EV BATTERY INTAKE DUCT

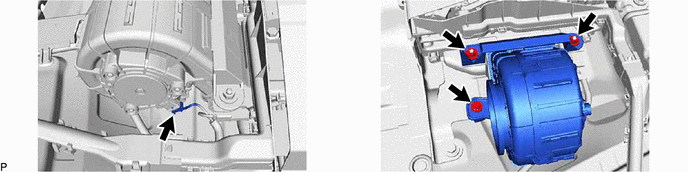

Hide Display G9230 11.REMOVE BATTERY COOLING BLOWER ASSEMBLY

NOTICE:: ·

Be sure not to touch the fan part of the battery cooling blower assembly.

·

Do not lift the battery cooling blower assembly using the wire harness.
