HYBRID / BATTERY CONTROL  HYBRID BATTERY SYSTEM  P33EC16  (Extreme) Hybrid/EV Battery Stack 1 Cell Circuit Voltage Below Threshold  P33ED16  (Extreme) Hybrid/EV Battery Stack 2 Cell Circuit Voltage Below Threshold


DESCRIPTION

If the voltage of an HV battery cell is lower than the threshold for a certain amount of time, the battery ECU assembly will interpret this as a malfunction.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Warning Indicate Note
P33EC16 (Extreme) Hybrid/EV Battery Stack 1 Cell Circuit Voltage Below Threshold The voltage of any cell of the No. 1 HV supply stack sub-assembly has decreased excessively.
(1 trip detection logic)
·

HV battery

·

Battery ECU assembly


Comes on Master Warning:
Comes on 		SAE Code: P33EC
P33ED16 (Extreme) Hybrid/EV Battery Stack 2 Cell Circuit Voltage Below Threshold The voltage of any cell of the No. 2 HV supply stack sub-assembly has decreased excessively.
(1 trip detection logic)
·

HV battery

·

Battery ECU assembly


Comes on Master Warning:
Comes on 		SAE Code: P33ED

CAUTION:

Do not charge the HV battery using the THS charger if DTC P33EC16 or P33ED16 is output.


MONITOR DESCRIPTION

If the battery ECU assembly detects voltage drop in the battery cells, the battery ECU assembly will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs P33EC (INF P33EC16), P33ED (INF P33ED16): Cell voltage too low
Required sensors/components Battery ECU assembly
Frequency of operation Continuous
Duration TMC's intellectual property
MIL operation Immediately
Sequence of operation None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not stored TMC's intellectual property
Other conditions belong to TMC's intellectual property -

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property -

COMPONENT OPERATING RANGE

Battery ECU assembly DTC P33EC (INF P33EC16) is not detected
DTC P33ED (INF P33ED16) is not detected

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>UTILITY

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>DTC CHECK / CLEAR



1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for 2 minutes or more.

5.

Turn the ignition switch to ON and turn the GTS on.

6.

Drive the vehicle on urban roads for approximately 10 minutes.[*1]

HINT:

[*1]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.


7.

Enter the following menus: Powertrain / HV Battery / Utility / All Readiness.

8.

Check the DTC judgment result.

HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE, perform the normal judgment procedure again.




CAUTION / NOTICE / HINT

CAUTION:

Refer to the precautions before inspecting high voltage circuit.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>PRECAUTION


NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART




PROCEDURE

1.CHECK DTC OUTPUT (HV BATTERY, HYBRID CONTROL)
a.

Check for DTCs.

Powertrain > HV Battery > Trouble Codes
50001 398
Powertrain > Hybrid Control > Trouble Codes
50001 397
Result:
Result Proceed to
"P33EC16 or P33ED16" only is output, or DTCs except the ones in the table below are also output. A
DTCs of hybrid battery system in the table below are output. B
DTCs of hybrid control system in the table below are output. C


System Relevant DTC
Hybrid battery system P060A47 Hybrid/EV Battery Energy Control Module Monitoring Processor Watchdog / Safety MCU Failure
P060B49 Hybrid/EV Battery Energy Control Module A/D Processing Internal Electronic Failure
P060687 Hybrid/EV Battery Energy Control Module Processor to Monitoring Processor Missing Message
P0E2D00 Hybrid/EV Battery Energy Control Module Hybrid/EV Battery Monitor Performance
Hybrid control system P0A1F94 Hybrid/EV Battery Energy Control Module Unexpected Operation


b.

Turn the ignition switch off.



A

2.CHECK DTC

B

GO TO DTC CHART (HYBRID BATTERY SYSTEM)

C

GO TO DTC CHART (HYBRID CONTROL SYSTEM)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>DIAGNOSTIC TROUBLE CODE CHART


2.CHECK DTC
a.

Check the DTCs that were output when the vehicle was brought to the workshop.


Result:
Result Proceed to
"P33EC16" is also output. A
"P33ED16" is also output. B



A

3.CHECK CONNECTOR CONNECTION CONDITION (BATTERY ECU ASSEMBLY CONNECTOR)

B

8.CHECK CONNECTOR CONNECTION CONDITION (BATTERY ECU ASSEMBLY CONNECTOR)
3.CHECK CONNECTOR CONNECTION CONDITION (BATTERY ECU ASSEMBLY CONNECTOR)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>P1A001C

Result:
Result Proceed to
OK A
Not connected securely The terminals are not damaged or corroded B
Not connected securely The terminals are damaged or corroded C



A

4.CHECK FREEZE FRAME DATA (HYBRID/EV BATTERY CELL VOLTAGE)

B

CONNECT SECURELY

C

REPLACE HV BATTERY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HV BATTERY>REMOVAL


4.CHECK FREEZE FRAME DATA (HYBRID/EV BATTERY CELL VOLTAGE)
a.

Read the value of freeze frame data items "Hybrid/EV battery cell 1 voltage" through "Hybrid/EV battery cell 30 voltage" for DTC P33EC16 and make a note if the value of any is 1.2 V or less.

Powertrain > HV Battery > Trouble Codes
50001 398

b.

Turn the ignition switch off.


Result:
Proceed to
NEXT



NEXT

5.CHECK HV BATTERY (HV BATTERY CELL VOLTAGE 1 - 30)
5.CHECK HV BATTERY (HV BATTERY CELL VOLTAGE 1 - 30)
CAUTION:
·

Be sure to wear insulated gloves and protective goggles.

·

Disconnect only the connector corresponding to the HV battery cell to be checked. Do not disconnect the other connectors.



NOTICE:

Make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the voltage of each HV battery cell.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.
A517701N06
0.667,1.583 1.167,1.833 0.5,0.25 0.781,1.594 1.083,1.802 0.302,0.208 10 true z24

Disconnect the battery ECU assembly connector.


c.

Measure the voltage according to the value(s) in the table below.

HINT:

Measure the voltage of the HV battery cells whose value in the freeze frame data was 1.2 V or less only.


HV Battery Cell Tester Connection Condition
1 z24-19 (GA0) - z24-41 (VA1) Always
2 z24-41 (VA1) - z24-18 (VA2) Always
3 z24-18 (VA2) - z24-40 (VA3) Always
4 z24-40 (VA3) - z24-17 (VA4) Always
5 z24-17 (VA4) - z24-39 (VA5) Always
6 z24-39 (VA5) - z24-16 (VA6) Always
7 z24-16 (VA6) - z24-38 (VA7) Always
8 z24-38 (VA7) - z24-15 (VA8) Always
9 z24-15 (VA8) - z24-37 (VA9) Always
10 z24-37 (VA9) - z24-14 (VA10) Always
11 z24-14 (VA10) - z24-36 (VA11) Always
12 z24-36 (VA11) - z24-13 (VA12) Always
13 z24-13 (VA12) - z24-35 (VA13) Always
14 z24-35 (VA13) - z24-12 (VA14) Always
15 z24-12 (VA14) - z24-34 (VA15) Always
16 z24-34 (VA15) - z24-11 (VA16) Always
17 z24-11 (VA16) - z24-33 (VA17) Always
18 z24-33 (VA17) - z24-10 (VA18) Always
19 z24-10 (VA18) - z24-32 (VA19) Always
20 z24-32 (VA19) - z24-9 (VA20) Always
21 z24-9 (VA20) - z24-31 (VA21) Always
22 z24-31 (VA21) - z24-7 (VA22) Always
23 z24-29 (GA1) - z24-6 (VA23) Always
24 z24-6 (VA23) - z24-28 (VA24) Always
25 z24-28 (VA24) - z24-5 (VA25) Always
26 z24-5 (VA25) - z24-27 (VA26) Always
27 z24-27 (VA26) - z24-4 (VA27) Always
28 z24-4 (VA27) - z24-26 (VA28) Always
29 z24-26 (VA28) - z24-3 (VA29) Always
30 z24-3 (VA29) - z24-23 (VA30) Always

CAUTION:

Make sure not to cross the electrodes of an electrical tester measurement terminals.


NOTICE:

Make sure to check the polarity of each terminal (positive (+) or negative (-)) before connecting a tester.



Result:
Result Proceed to
The voltage between the terminals is 1.2 V or less. A
Other than above B



A

6.CHECK BATTERY ECU ASSEMBLY (GA0 - VA30)

B

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU>REMOVAL


6.CHECK BATTERY ECU ASSEMBLY (GA0 - VA30)
NOTICE:

Make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the resistance.


a.

Remove the battery ECU assembly.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

HINT:

Only inspect the terminals of the battery ECU assembly which correspond to the HV battery cells which measured 1.2 V or less in the previous step.

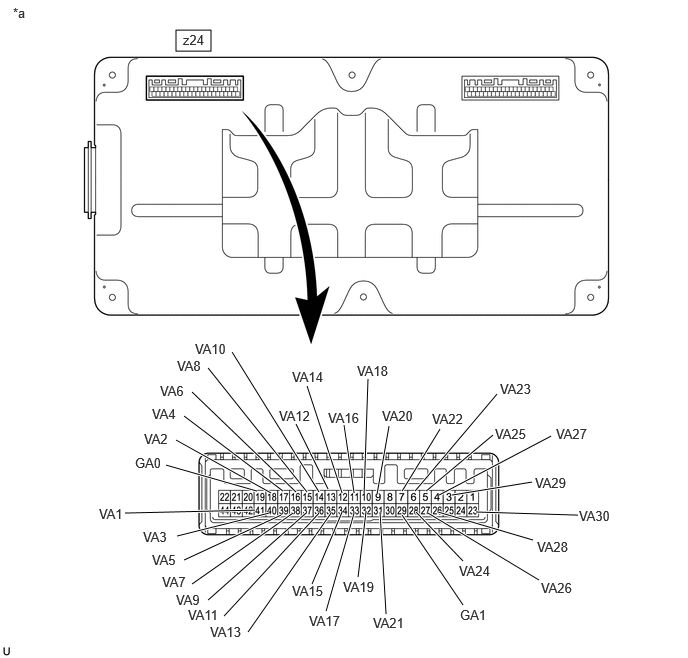

A512969C21
1.833,0.313 2.198,0.531 0.365,0.219 6.021,5.365 4.958,5.333 true 5.552,5.625 4.563,5.333 true 4.823,6.302 4.188,5.365 true 4.823,5.844 4.333,5.333 true 4.021,6.396 3.958,5.333 true 3.729,6.01 3.813,5.323 true 3.25,6.083 3.563,5.333 true 2.583,6.583 3.448,5.344 true 1.844,5.583 2.802,5.344 true 2,6.083 3.052,5.344 true 1.917,5.833 2.927,5.365 true 1.729,4.844 2.677,5.115 true 1.833,4.583 2.823,5.135 true 3.396,6.365 3.688,5.344 true 1.917,4.333 2.948,5.115 true 4.583,4.469 4.188,5.115 true 5.135,4.531 4.438,5.115 true 5.74,4.542 4.573,5.156 true 5.542,5.021 4.708,5.156 true 5.177,4.104 4.323,5.115 true 5.615,6.042 4.458,5.344 true 2.656,5.313 1.302,5.344 true 3.833,3.948 3.792,5.135 true 4.052,4.438 3.927,5.146 true 3.198,4.021 3.563,5.135 true 2,4.083 3.083,5.125 true 3.083,4.417 3.417,5.094 true 3.583,4.427 3.688,5.135 true 2.167,3.833 3.198,5.125 true 2.417,3.667 3.323,5.125 true 2.167,6.25 3.188,5.344 true 2.333,6.417 3.323,5.344 true 0.135,0.052 0.448,0.25 0.313,0.198 10 false *a 5.635,6.042 6.25,6.24 0.615,0.198 10 false VA26 5.156,4.438 5.771,4.635 0.615,0.198 10 false VA25 4.781,5.865 5.396,6.063 0.615,0.198 10 false VA24 5.208,3.969 5.823,4.167 0.615,0.198 10 false VA23 4.5,4.281 5.115,4.479 0.615,0.198 10 false VA22 3.885,6.406 4.5,6.604 0.615,0.198 10 false VA21 3.979,4.25 4.594,4.448 0.615,0.198 10 false VA20 3.573,6.031 4.188,6.229 0.615,0.198 10 false VA19 3.719,3.781 4.333,3.979 0.615,0.198 10 false VA18 3.219,6.385 3.833,6.583 0.615,0.198 10 false VA17 3.417,4.271 4.031,4.469 0.615,0.198 10 false VA16 3.042,6.073 3.656,6.271 0.615,0.198 10 false VA15 3.042,3.844 3.656,4.042 0.615,0.198 10 false VA14 2.188,6.5 2.802,6.698 0.615,0.198 10 false VA13 2.906,4.25 3.521,4.448 0.615,0.198 10 false VA12 1.688,5.979 2.302,6.177 0.615,0.198 10 false VA7 1.667,3.99 2.281,4.188 0.615,0.198 10 false VA6 1.583,5.75 2.198,5.948 0.615,0.198 10 false VA5 1.583,4.229 2.198,4.427 0.615,0.198 10 false VA4 1.49,5.51 2.104,5.708 0.615,0.198 10 false VA3 1.5,4.49 2.115,4.688 0.615,0.198 10 false VA2 1.031,5.271 1.646,5.469 0.615,0.198 10 false VA1 1.406,4.74 2.021,4.938 0.615,0.198 10 false GA0 1.906,0.333 2.365,0.604 0.458,0.271 10 false z24 6.031,5.292 6.646,5.49 0.615,0.198 10 false VA30 5.573,4.948 6.188,5.146 0.615,0.198 10 false VA29 5.792,4.438 6.406,4.635 0.615,0.198 10 false VA27 5.594,5.615 6.208,5.813 0.615,0.198 10 false VA28 4.792,6.323 5.25,6.521 0.458,0.198 10 false GA1 1.844,3.729 2.458,3.927 0.615,0.198 10 false VA8 2.031,3.552 2.646,3.75 0.615,0.198 10 false VA10 1.833,6.167 2.448,6.365 0.615,0.198 10 false VA9 1.958,6.323 2.573,6.521 0.615,0.198 10 false VA11
*a Component without harness connected
(Battery ECU Assembly) 		- -


Standard Resistance:
HV Battery Cell Tester Connection
(Tester Probe Polarity) 		Condition Specified Condition
1 z24-19 (GA0) (-) - z24-41 (VA1) (+) Always 50 kΩ or more
2 z24-41 (VA1) (-) - z24-18 (VA2) (+) Always 50 kΩ or more
3 z24-18 (VA2) (-) - z24-40 (VA3) (+) Always 50 kΩ or more
4 z24-40 (VA3) (-) - z24-17 (VA4) (+) Always 50 kΩ or more
5 z24-17 (VA4) (-) - z24-39 (VA5) (+) Always 50 kΩ or more
6 z24-39 (VA5) (-) - z24-16 (VA6) (+) Always 50 kΩ or more
7 z24-16 (VA6) (-) - z24-38 (VA7) (+) Always 50 kΩ or more
8 z24-38 (VA7) (-) - z24-15 (VA8) (+) Always 50 kΩ or more
9 z24-15 (VA8) (-) - z24-37 (VA9) (+) Always 50 kΩ or more
10 z24-37 (VA9) (-) - z24-14 (VA10) (+) Always 50 kΩ or more
11 z24-14 (VA10) (-) - z24-36 (VA11) (+) Always 50 kΩ or more
12 z24-36 (VA11) (-) - z24-13 (VA12) (+) Always 50 kΩ or more
13 z24-13 (VA12) (-) - z24-35 (VA13) (+) Always 50 kΩ or more
14 z24-35 (VA13) (-) - z24-12 (VA14) (+) Always 50 kΩ or more
15 z24-12 (VA14) (-) - z24-34 (VA15) (+) Always 50 kΩ or more
16 z24-34 (VA15) (-) - z24-11 (VA16) (+) Always 50 kΩ or more
17 z24-11 (VA16) (-) - z24-33 (VA17) (+) Always 50 kΩ or more
18 z24-33 (VA17) (-) - z24-10 (VA18) (+) Always 50 kΩ or more
19 z24-10 (VA18) (-) - z24-32 (VA19) (+) Always 50 kΩ or more
20 z24-32 (VA19) (-) - z24-9 (VA20) (+) Always 50 kΩ or more
21 z24-9 (VA20) (-) - z24-31 (VA21) (+) Always 50 kΩ or more
22 z24-31 (VA21) (-) - z24-7 (VA22) (+) Always 50 kΩ or more
23 z24-29 (GA1) (-) - z24-6 (VA23) (+) Always 50 kΩ or more
24 z24-6 (VA23) (-) - z24-28 (VA24) (+) Always 50 kΩ or more
25 z24-28 (VA24) (-) - z24-5 (VA25) (+) Always 50 kΩ or more
26 z24-5 (VA25) (-) - z24-27 (VA26) (+) Always 50 kΩ or more
27 z24-27 (VA26) (-) - z24-4 (VA27) (+) Always 50 kΩ or more
28 z24-4 (VA27) (-) - z24-26 (VA28) (+) Always 50 kΩ or more
29 z24-26 (VA28) (-) - z24-3 (VA29) (+) Always 50 kΩ or more
30 z24-3 (VA29) (-) - z24-23 (VA30) (+) Always 50 kΩ or more


NOTICE:
·

Make sure to check the polarity of each terminal (positive (+) or negative (-)) before connecting a tester.

·

Read the resistance after the value has stabilized.

·

In order to avoid damaging the terminals of the battery ECU assembly, make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the resistance of the battery ECU assembly.




c.

Install the battery ECU assembly.


Result:
Result Proceed to
The voltage between the terminals is 50 kΩ or more. A
Other than above B



A

REPLACE HV BATTERY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HV BATTERY>REMOVAL


B

7.REPLACE HV BATTERY
8.CHECK CONNECTOR CONNECTION CONDITION (BATTERY ECU ASSEMBLY CONNECTOR)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>P1A001C

Result:
Result Proceed to
OK A
Not connected securely The terminals are not damaged or corroded B
Not connected securely The terminals are damaged or corroded C



A

9.CHECK FREEZE FRAME DATA (HYBRID/EV BATTERY CELL VOLTAGE)

B

CONNECT SECURELY

C

REPLACE HV BATTERY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HV BATTERY>REMOVAL


9.CHECK FREEZE FRAME DATA (HYBRID/EV BATTERY CELL VOLTAGE)
a.

Read the value of freeze frame data items "Hybrid/EV battery cell 31 voltage" through "Hybrid/EV battery cell 60 voltage" for DTC P33ED16 and make a note if the value of any is 1.2 V or less.

Powertrain > HV Battery > Trouble Codes
50001 398

b.

Turn the ignition switch off.


Result:
Proceed to
NEXT



NEXT

10.CHECK HV BATTERY (HV BATTERY CELL VOLTAGE 31 - 60)
10.CHECK HV BATTERY (HV BATTERY CELL VOLTAGE 31 - 60)
CAUTION:
·

Be sure to wear insulated gloves and protective goggles.

·

Disconnect only the connector corresponding to the HV battery cell to be checked. Do not disconnect the other connectors.



NOTICE:

Make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the voltage of each HV battery cell.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.
A517702N06
2.25,1.583 2.75,1.833 0.5,0.25 2.375,1.604 2.677,1.813 0.302,0.208 10 true z27

Disconnect the battery ECU assembly connector.


c.

Measure the voltage according to the value(s) in the table below.

HINT:

Measure the voltage of the HV battery cells whose value in the freeze frame data was 1.2 V or less only.


HV Battery Cell Tester Connection Condition
31 z27-22 (VAD) - z27-44 (VA31) Always
32 z27-44 (VA31) - z27-21 (VA32) Always
33 z27-21 (VA32) - z27-43 (VA33) Always
34 z27-43 (VA33) - z27-20 (VA34) Always
35 z27-20 (VA34) - z27-42 (VA35) Always
36 z27-42 (VA35) - z27-19 (VA36) Always
37 z27-19 (VA36) - z27-16 (VA37) Always
38 z27-35 (GA2) - z27-12 (VA38) Always
39 z27-12 (VA38) - z27-34 (VA39) Always
40 z27-34 (VA39) - z27-11 (VA40) Always
41 z27-11 (VA40) - z27-33 (VA41) Always
42 z27-33 (VA41) - z27-10 (VA42) Always
43 z27-10 (VA42) - z27-32 (VA43) Always
44 z27-32 (VA43) - z27-9 (VA44) Always
45 z27-9 (VA44) - z27-31 (VA45) Always
46 z27-31 (VA45) - z27-8 (VA46) Always
47 z27-8 (VA46) - z27-30 (VA47) Always
48 z27-30 (VA47) - z27-7 (VA48) Always
49 z27-7 (VA48) - z27-29 (VA49) Always
50 z27-29 (VA49) - z27-6 (VA50) Always
51 z27-6 (VA50) - z27-28 (VA51) Always
52 z27-28 (VA51) - z27-5 (VA52) Always
53 z27-5 (VA52) - z27-27 (VA53) Always
54 z27-27 (VA53) - z27-4 (VA54) Always
55 z27-4 (VA54) - z27-26 (VA55) Always
56 z27-26 (VA55) - z27-3 (VA56) Always
57 z27-3 (VA56) - z27-25 (VA57) Always
58 z27-25 (VA57) - z27-2 (VA58) Always
59 z27-2 (VA58) - z27-24 (VA59) Always
60 z27-24 (VA59) - z27-23 (VA60) Always

CAUTION:

Make sure not to cross the electrodes of an electrical tester measurement terminals.


NOTICE:

Make sure to check the polarity of each terminal (positive (+) or negative (-)) before connecting a tester.



Result:
Result Proceed to
The voltage between the terminals is 1.2 V or less. A
Other than above B



A

11.CHECK BATTERY ECU ASSEMBLY (VAD - VA60)

B

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU>REMOVAL


11.CHECK BATTERY ECU ASSEMBLY (VAD - VA60)
NOTICE:

Make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the resistance.


a.

Remove the battery ECU assembly.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

HINT:

Only inspect the terminals of the battery ECU assembly which correspond to the HV battery cells which measured 1.2 V or less in the previous step.

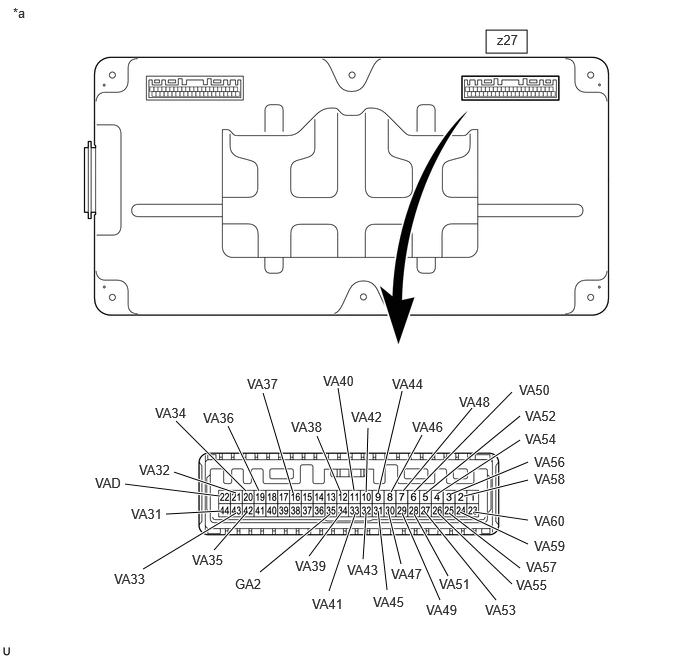

A512970C16
5.063,0.313 5.49,0.552 0.427,0.24 5.5,5.417 4.938,5.333 true 5.417,5.917 4.677,5.344 true 5.333,6.083 4.573,5.354 true 3.781,5.823 3.813,5.344 true 2.229,5.729 2.563,5.344 true 1.49,5.927 2.458,5.344 true 1.729,5.354 2.302,5.323 true 1.813,4.917 2.458,5.135 true 1.833,4.385 2.563,5.115 true 2.375,4.438 2.698,5.115 true 2.74,4.094 3.052,5.135 true 3.521,4.042 3.688,5.115 true 3.698,5.354 3.427,6.156 true 5.333,4.083 4.313,5.125 true 5.417,4.333 4.438,5.135 true 5.417,4.583 4.552,5.146 true 4.188,4.073 3.938,5.135 true 5.5,4.813 4.698,5.146 true 4.917,4.25 4.198,5.115 true 4.396,4.531 4.073,5.125 true 3.833,4.458 3.813,5.125 true 1.302,5.042 2.292,5.167 true 3.302,4.542 3.552,5.135 true 4.583,6.25 4.188,5.344 true 4.667,6 4.313,5.354 true 4.031,6.146 3.938,5.323 true 4.177,5.875 4.042,5.323 true 2.708,5.958 3.438,5.354 true 3.219,5.792 3.552,5.344 true 5.5,5 4.833,5.167 true 5.5,5.667 4.792,5.333 true 5.167,6.25 4.417,5.323 true 0.135,0.052 0.448,0.25 0.313,0.198 10 false *a 5.406,3.979 6.021,4.177 0.615,0.198 10 false VA50 1.188,5.948 1.802,6.146 0.615,0.198 10 false VA33 4.781,4.104 5.396,4.302 0.615,0.198 10 false VA48 4.073,5.896 4.688,6.094 0.615,0.198 10 false VA47 4.292,4.365 4.906,4.563 0.615,0.198 10 false VA46 3.885,6.188 4.5,6.385 0.615,0.198 10 false VA45 5.375,6.01 5.99,6.208 0.615,0.198 10 false VA55 3.615,5.854 4.229,6.052 0.615,0.198 10 false VA43 3.656,4.26 4.271,4.458 0.615,0.198 10 false VA42 3.25,6.208 3.865,6.406 0.615,0.198 10 false VA41 3.365,3.885 3.979,4.083 0.615,0.198 10 false VA40 3.073,5.813 3.688,6.01 0.615,0.198 10 false VA39 3.031,4.365 3.646,4.563 0.615,0.198 10 false VA38 2.573,3.917 3.188,4.115 0.615,0.198 10 false VA37 2.115,4.271 2.729,4.469 0.615,0.198 10 false VA36 2,5.75 2.615,5.948 0.615,0.198 10 false VA35 1.615,4.219 2.229,4.417 0.615,0.198 10 false VA34 4.083,3.917 4.698,4.115 0.615,0.198 10 false VA44 1.448,4.813 2.063,5.01 0.615,0.198 10 false VA32 1.365,5.271 1.979,5.469 0.615,0.198 10 false VA31 5.563,5.604 6.177,5.802 0.615,0.198 10 false VA59 5.563,5.344 6.177,5.542 0.615,0.198 10 false VA60 5.479,5.823 6.094,6.021 0.615,0.198 10 false VA57 5.563,4.729 6.177,4.927 0.615,0.198 10 false VA56 2.448,6 3.063,6.198 0.615,0.198 10 false GA2 5.177,0.333 5.51,0.51 0.333,0.177 10 false z27 5.469,4.25 6.083,4.448 0.615,0.198 10 false VA52 5.469,4.49 6.083,4.688 0.615,0.198 10 false VA54 0.99,4.948 1.448,5.146 0.458,0.198 10 false VAD 4.573,6 5.188,6.198 0.615,0.198 10 false VA51 4.438,6.271 5.052,6.469 0.615,0.198 10 false VA49 5.563,4.906 6.177,5.104 0.615,0.198 10 false VA58 5.052,6.271 5.667,6.469 0.615,0.198 10 false VA53
*a Component without harness connected
(Battery ECU Assembly) 		- -


Standard Resistance:
HV Battery Cell Tester Connection
(Tester Probe Polarity) 		Condition Specified Condition
31 z27-22 (VAD) (-) - z27-44 (VA31) (+) Always 50 kΩ or more
32 z27-44 (VA31) (-) - z27-21 (VA32) (+) Always 50 kΩ or more
33 z27-21 (VA32) (-) - z27-43 (VA33) (+) Always 50 kΩ or more
34 z27-43 (VA33) (-) - z27-20 (VA34) (+) Always 50 kΩ or more
35 z27-20 (VA34) (-) - z27-42 (VA35) (+) Always 50 kΩ or more
36 z27-42 (VA35) (-) - z27-19 (VA36) (+) Always 50 kΩ or more
37 z27-19 (VA36) (-) - z27-16 (VA37) (+) Always 50 kΩ or more
38 z27-35 (GA2) (-) - z27-12 (VA38) (+) Always 50 kΩ or more
39 z27-12 (VA38) (-) - z27-34 (VA39) (+) Always 50 kΩ or more
40 z27-34 (VA39) (-) - z27-11 (VA40) (+) Always 50 kΩ or more
41 z27-11 (VA40) (-) - z27-33 (VA41) (+) Always 50 kΩ or more
42 z27-33 (VA41) (-) - z27-10 (VA42) (+) Always 50 kΩ or more
43 z27-10 (VA42) (-) - z27-32 (VA43) (+) Always 50 kΩ or more
44 z27-32 (VA43) (-) - z27-9 (VA44) (+) Always 50 kΩ or more
45 z27-9 (VA44) (-) - z27-31 (VA45) (+) Always 50 kΩ or more
46 z27-31 (VA45) (-) - z27-8 (VA46) (+) Always 50 kΩ or more
47 z27-8 (VA46) (-) - z27-30 (VA47) (+) Always 50 kΩ or more
48 z27-30 (VA47) (-) - z27-7 (VA48) (+) Always 50 kΩ or more
49 z27-7 (VA48) (-) - z27-29 (VA49) (+) Always 50 kΩ or more
50 z27-29 (VA49) (-) - z27-6 (VA50) (+) Always 50 kΩ or more
51 z27-6 (VA50) (-) - z27-28 (VA51) (+) Always 50 kΩ or more
52 z27-28 (VA51) (-) - z27-5 (VA52) (+) Always 50 kΩ or more
53 z27-5 (VA52) (-) - z27-27 (VA53) (+) Always 50 kΩ or more
54 z27-27 (VA53) (-) - z27-4 (VA54) (+) Always 50 kΩ or more
55 z27-4 (VA54) (-) - z27-26 (VA55) (+) Always 50 kΩ or more
56 z27-26 (VA55) (-) - z27-3 (VA56) (+) Always 50 kΩ or more
57 z27-3 (VA56) (-) - z27-25 (VA57) (+) Always 50 kΩ or more
58 z27-25 (VA57) (-) - z27-2 (VA58) (+) Always 50 kΩ or more
59 z27-2 (VA58) (-) - z27-24 (VA59) (+) Always 50 kΩ or more
60 z27-24 (VA59) (-) - z27-23 (VA60) (+) Always 50 kΩ or more


NOTICE:
·

Make sure to check the polarity of each terminal (positive (+) or negative (-)) before connecting a tester.

·

Read the resistance after the value has stabilized.

·

In order to avoid damaging the terminals of the battery ECU assembly, make sure to use tester probes with a diameter of approximately 0.5 mm (0.0197 in.) when measuring the resistance of the battery ECU assembly.




c.

Install the battery ECU assembly.


Result:
Result Proceed to
The voltage between the terminals is 50 kΩ or more. A
Other than above B



A

REPLACE HV BATTERY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HV BATTERY>REMOVAL


B

12.REPLACE HV BATTERY
